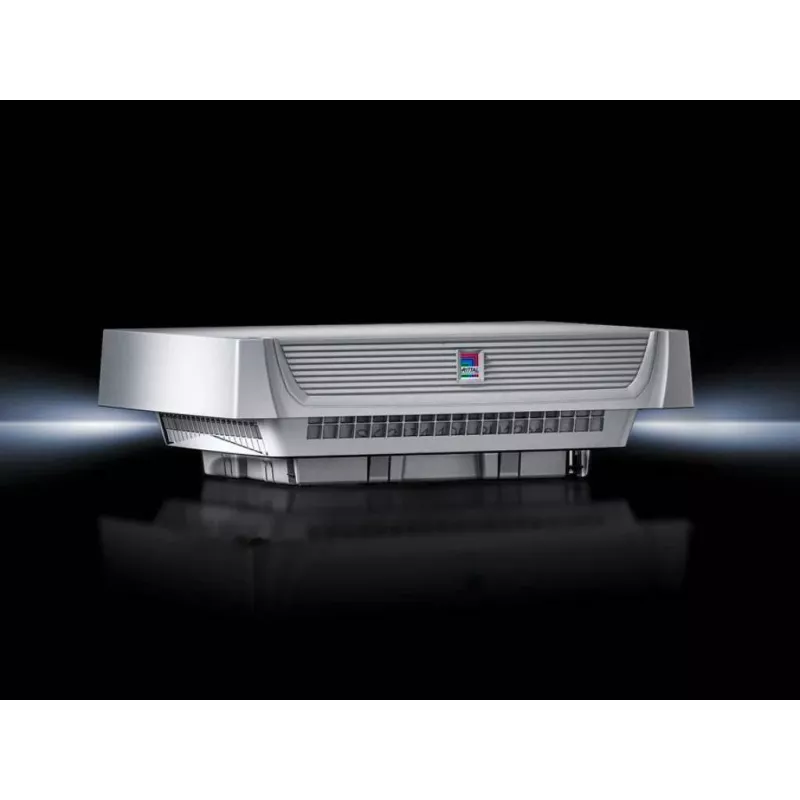

Chapa para ventilador Rittal SK 3140.100

The Rittal SK 3140.100 fan panel is a roof-mounted ventilation solution for electrical enclosures and cabinets. Designed for a 400 mm panel width, it provides a single mounting cut-out that fits all output categories of this product family, enabling straightforward installation and replacement. The panel’s air routing minimizes pressure losses to maintain efficient airflow, and the innovative clamping attachment contributes to a high protection rating of IP55, making it suitable for industrial environments.

Advantages

The fan panel uses a unified mounting cut-out across output categories which simplifies inventory and installation. Optimised air routing reduces pressure losses and improves cooling efficiency. The clamping attachment enables secure fastening and supports an IP55 protection class, increasing resistance to dust and water ingress. The product’s 400 mm width and grey finish match common enclosure dimensions and industrial aesthetics.

Suitable for

Key specifications

How to use

Fit the SK 3140.100 into the enclosure’s roof opening sized to the manufacturer’s cut-out specifications. Secure the panel using the integrated clamping attachment to achieve the specified protection class. Connect the fan units and any required wiring following the electrical and safety requirements for the enclosure. Perform a brief operational check to confirm correct airflow and secure mounting.

Recommendations

To maintain performance and IP55 integrity, install the panel in accordance with Rittal mounting guidelines, regularly inspect sealing and clamping elements, and clean debris from inlet and outlet areas as part of routine maintenance.
