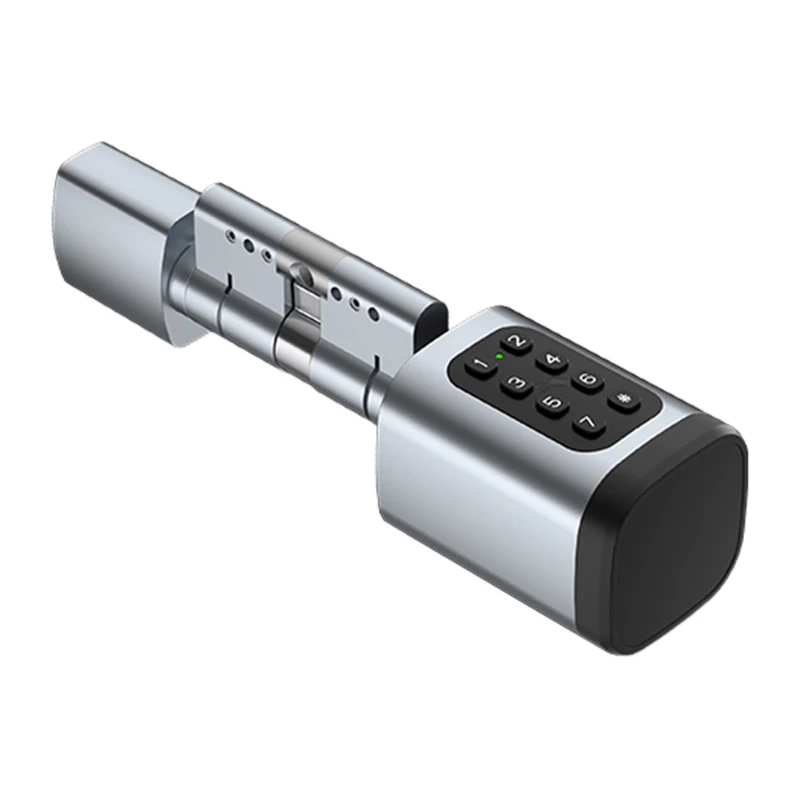

Avatto SDL-V1-S70 70mm digital lock cylinder (Silver)
The Avatto SDL-V1-S70 cylinder is a modern door security solution that combines convenience of use with advanced features. This 100mm long model fits standard European locks (EURO profiles) and is designed for doors 40-50mm thick. Thanks to its simple installation without the need to drill or replace the entire lock, it will work well both at home and in the office.
Compatibility and simple installation
The cylinder is compatible with EURO-type locks, which means you don't need to replace the entire door cassette. Installation comes down to replacing the old cylinder and tightening the new one - all you need is a hex key and a few minutes. The design allows you to adjust the length by adjusting the internal knob.
5 methods of unlocking
The Avatto lock offers five ways to open the door: fingerprint, PIN code, proximity card, mechanical key and the TUYA smartphone app. This allows you to choose the most convenient option or provide access to different household members.
Features and materials

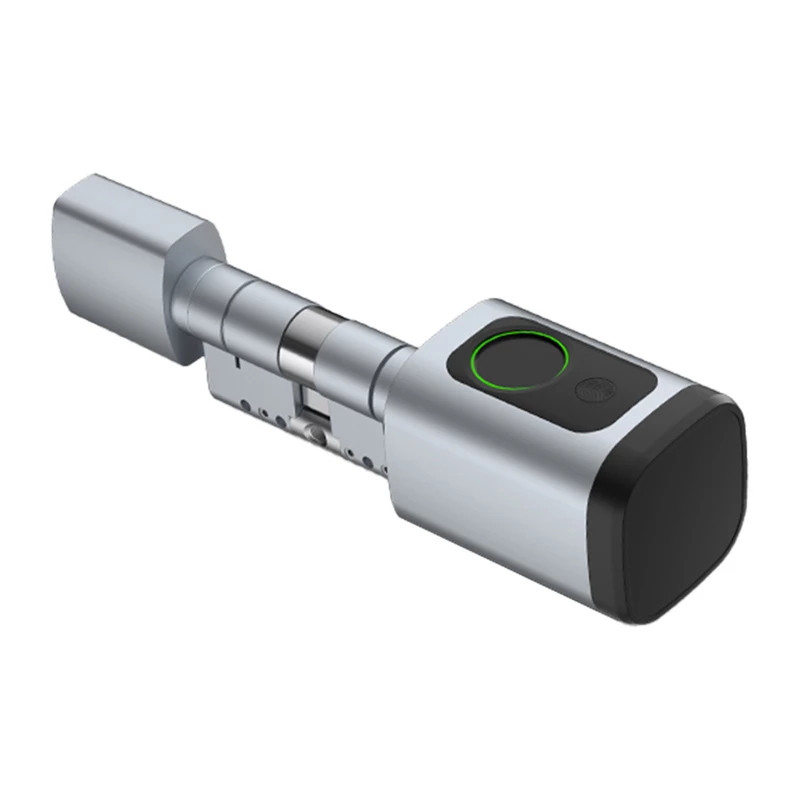

The device is made of durable 304 stainless steel, which translates into robustness and resistance to damage. The lock has a fingerprint reader and keypad, which are integrated into a single rotating head - simply turn it 90 degrees to switch between unlocking methods. If needed, emergency charging is possible via a USB port or using the included key.
Low power consumption
The lock is powered by three AAA (1.5V) batteries, ensuring long operation without frequent replacement. The system is designed to consume as little energy as possible while offering all the features of smart access.
Included
- lock cylinder
- proximity card x2
- key x2
- installation kit
- tools
- instruction manual
- reset card
| Manufacturer | Avatto |
|---|---|
| Model | SDL-V1-S70 |
| Material | Aluminum alloy / brass |
| Color | silver |
| Power supply | 3 AAA batteries (1.5 V, type LR03) |
| Door thickness | 38-50 mm (with additional components it is possible to fit doors 38-120 mm thick) |
| Product dimensions | Front knob: 42 x 58 mm |
| Length of the insert | 70 cm |
How to use
Replace the existing EURO-profile cylinder with the Avatto SDL-V1-S70 by removing the fixing screw and inserting the new cylinder; tighten the retaining screw with the provided tools. Configure unlocking methods using the keypad, register fingerprints and pair proximity cards or the TUYA app according to the manual. Use the rotating front head to access the fingerprint sensor or keypad by turning it 90 degrees. If batteries are depleted, provide emergency power via the USB port or use the mechanical key.
Recommendations
For reliable operation, use quality AAA batteries and follow the supplied installation instructions. Test all unlocking methods after installation and keep the mechanical keys and reset card in a secure location. For doors thicker than 50 mm, add the recommended extension components before fitting.
