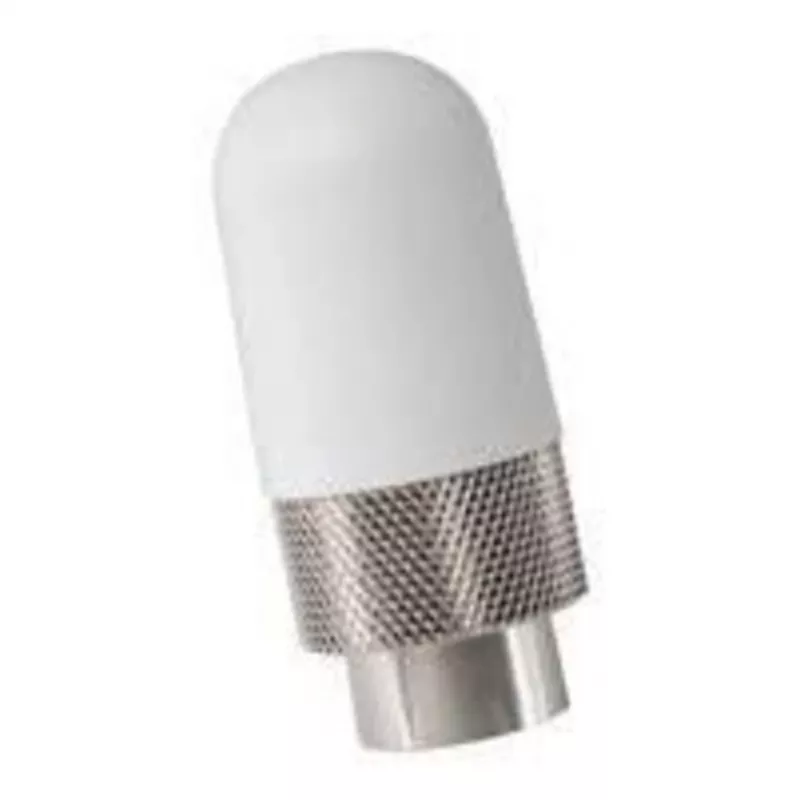

Cisco Aironet Antena Omnidireccional Muy Corta - 2.5 dBi - Interior - RP-TNC - para Aironet 1260 Series

The Cisco Aironet Very Short Omnidirectional Antenna (AIR-ANT2422SDW-R) is a compact, high-performance indoor antenna designed to enhance wireless coverage for Cisco Aironet access points. With a gain of 2.5 dBi and omnidirectional pattern, it provides 360-degree horizontal coverage, ideal for small to medium-sized spaces. The antenna features a reverse polarity TNC (RP-TNC) connector for direct attachment to compatible access points, ensuring easy installation without additional cabling.

Advantages

This antenna offers reliable 2.4 GHz connectivity with a very short form factor, making it unobtrusive in indoor environments. Its omnidirectional design ensures uniform coverage, while the vertical polarization and 50-ohm impedance maintain signal integrity. The robust construction supports operating temperatures from -20°C to 65°C, suitable for various indoor conditions.

Suitable for

• Cisco Aironet 1260 Series Access Points
• Other compatible Cisco Aironet access points with RP-TNC connectors
• Indoor deployments requiring compact, low-profile antennas
• Small offices, retail spaces, and classrooms

Key specifications

• Antenna Type: Omnidirectional
• Frequency Band: 2.4 GHz
• Antenna Gain: 2.5 dBi
• Directivity: Omnidirectional
• Application Environment: Indoor
• Connector Type: RP-TNC (Reverse Polarity TNC)
• Polarization: Vertical
• Horizontal Beamwidth: 360°
• Vertical Beamwidth: 60°
• Impedance: 50 Ohm
• VSWR: < 2:1
• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Form Factor: Very Short
• Mounting: Direct Connect

Recommendations

For optimal performance, pair this antenna with Cisco Aironet access points that support RP-TNC connectors. Ensure proper placement to maximize coverage and avoid obstructions. This antenna is a reliable choice for extending wireless range in indoor environments.
