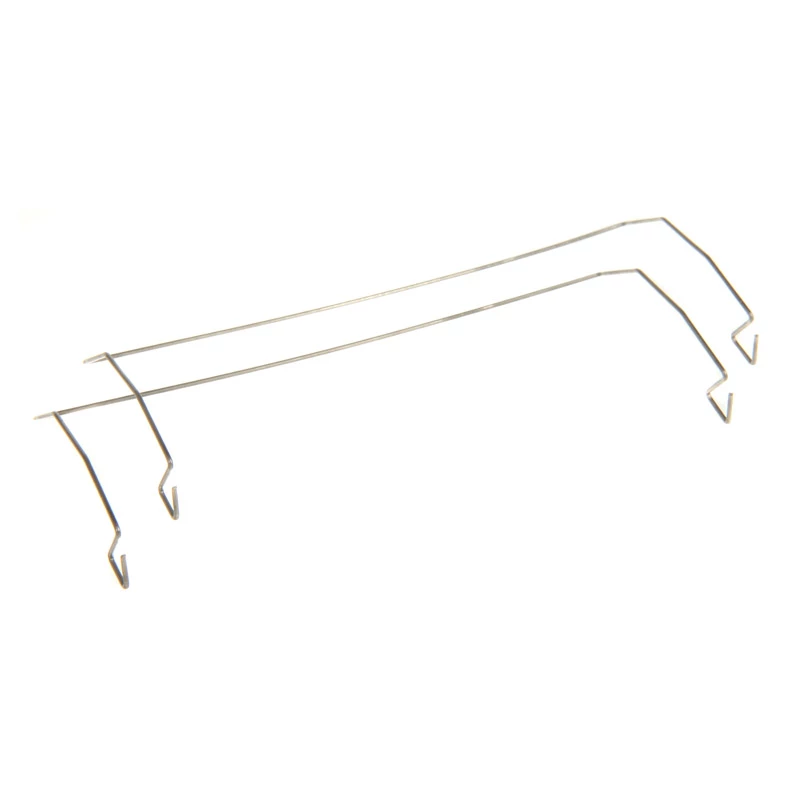

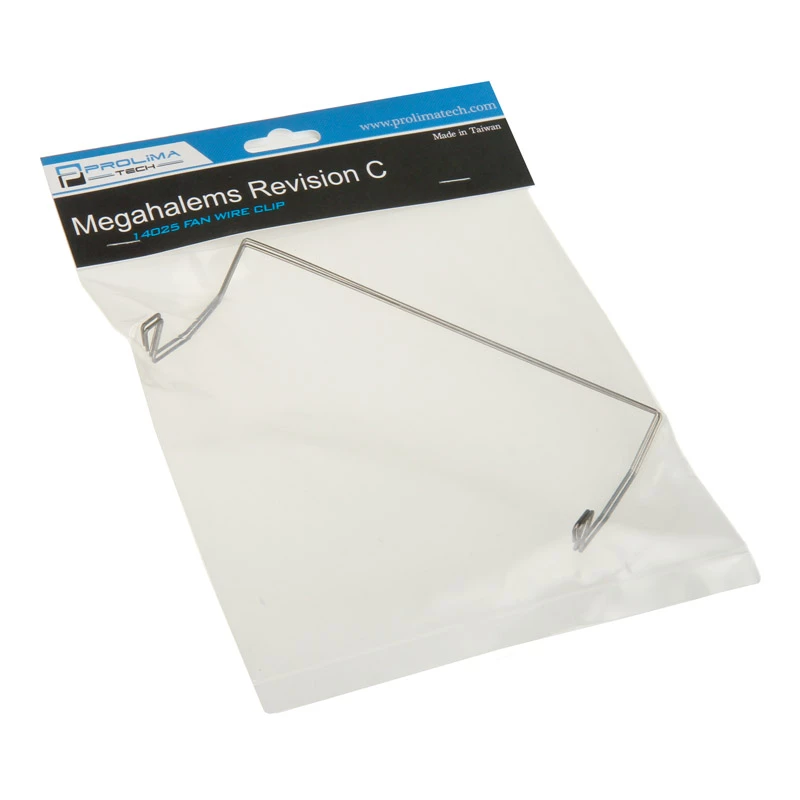

Clips de sujeción para ventilador PROLIMATECH Megahalems para ventiladores de 140×25 mm (Megahalems14025fanwireclip)

Wire retention clips by PROLIMATECH designed for use with Megahalems CPU coolers and 140×25 mm fans. These metal fan clips attach a 140 mm, 25 mm-thick fan to the Megahalems heatsink, ensuring stable mounting and correct alignment with the cooler fins to maintain consistent airflow and cooling performance. They are intended as direct mounting hardware for installing, replacing, or adding a fan on compatible Megahalems series heatsinks.

Advantages

The retention clips are made of metal for reliable durability and a secure hold. They provide a simple mechanical solution that keeps the 140×25 mm fan properly seated against the heatsink without requiring additional adapters. The design preserves fan alignment for optimal airflow through the Megahalems fins and minimizes vibration and movement during operation.

Suitable for

• Mounting a 140×25 mm fan to PROLIMATECH Megahalems series heatsinks
• Replacing worn or lost fan clips on compatible Megahalems coolers
• Adding a second or alternative fan for push/pull configurations

Key specifications

• Material: metal wire construction designed for durability
• Compatible fan size: 140 mm diameter, 25 mm thickness
• Intended application: attachment to Megahalems-style heatsink fins
• Mounting method: clip-style retention that hooks onto heatsink fins and secures fan frame

How to use

Position the 140×25 mm fan against the Megahalems heatsink with the airflow oriented as required. Hook one end of the wire clip over a heatsink fin slot, stretch the clip across the fan frame, and engage the opposite end into the corresponding fin slot. Ensure the clip seats into the fin slots and that the fan frame is held tightly against the heatsink. Repeat with the second clip if the configuration requires two retention points. Verify that the fan spins freely and that the clips do not touch the fan blades.

Recommendations

Install or remove clips gently to avoid bending the heatsink fins. Check clip tightness after initial operation and during periodic maintenance. Use two clips for larger or heavier fans or for push/pull setups to maintain stable mounting and consistent airflow.
