Colgador de perfil en U NIEDAX HU6040/500 60x40mm 500mm acero galvanizado en caliente

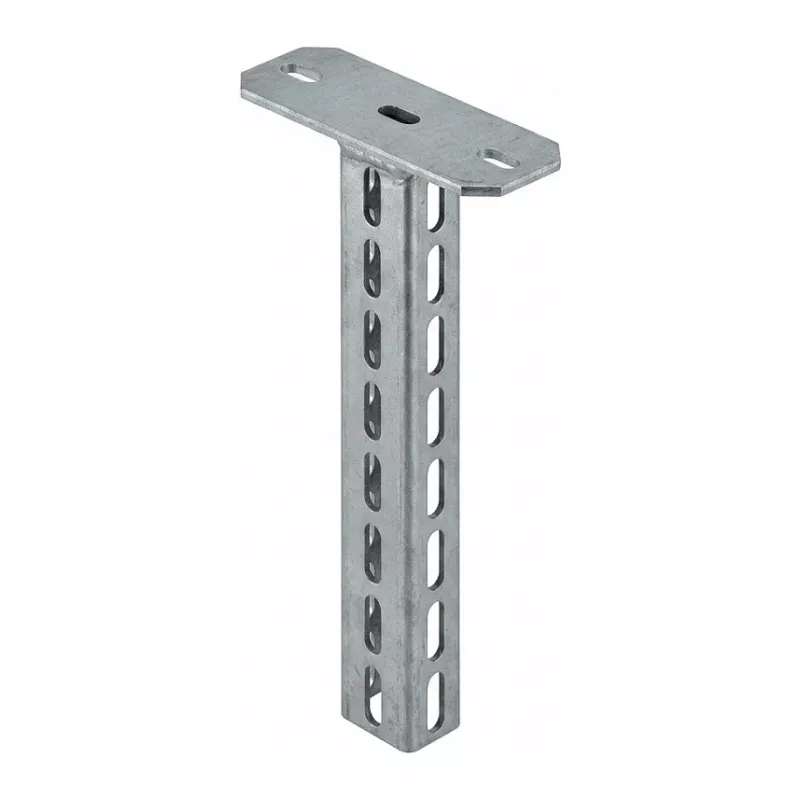

The Niedax HU6040/500 is a 500 mm U-profile hanging post made from 2.5 mm hot-dip galvanized steel. It provides a sturdy anchor point for suspending cable trays, ladders, and mesh baskets in industrial and commercial settings. The 60 x 40 mm cross-section offers high rigidity, while system perforation with 11 x 20 mm slots at 25 mm spacing allows flexible attachment.

Highlights

• Hot-dip galvanized to DIN EN ISO 1461 for superior corrosion resistance
• System perforation for straightforward mounting and adjustment
• Non-combustible steel construction
• DIN EN 61537 compliant for cable tray systems
• Compatible with Niedax suspension accessories

In daily use

This hanging post is ideal for overhead routing in production halls, warehouses, and building services. It can be fixed to threaded rods or other supports, enabling precise height alignment. The slotted holes permit quick repositioning, and the robust steel build handles demanding loads with ease.

Full specifications

• Type: Hanging Post U-Profile
• Width x Height: 60 x 40 mm
• Length: 500 mm
• Material: Steel, hot-dip galvanized
• Thickness: 2.5 mm
• Perforation: 11 x 20 mm slots, 25 mm spacing
• Colour: Metallic grey
• Mounting: Hanging / suspended
• Compliance: DIN EN 61537
• Fire behaviour: Non-combustible

Final note

With its durable galvanized finish and precision-engineered design, the Niedax HU6040/500 offers reliable support for any cable management project. Choose it for installations where safety and longevity are non-negotiable.
