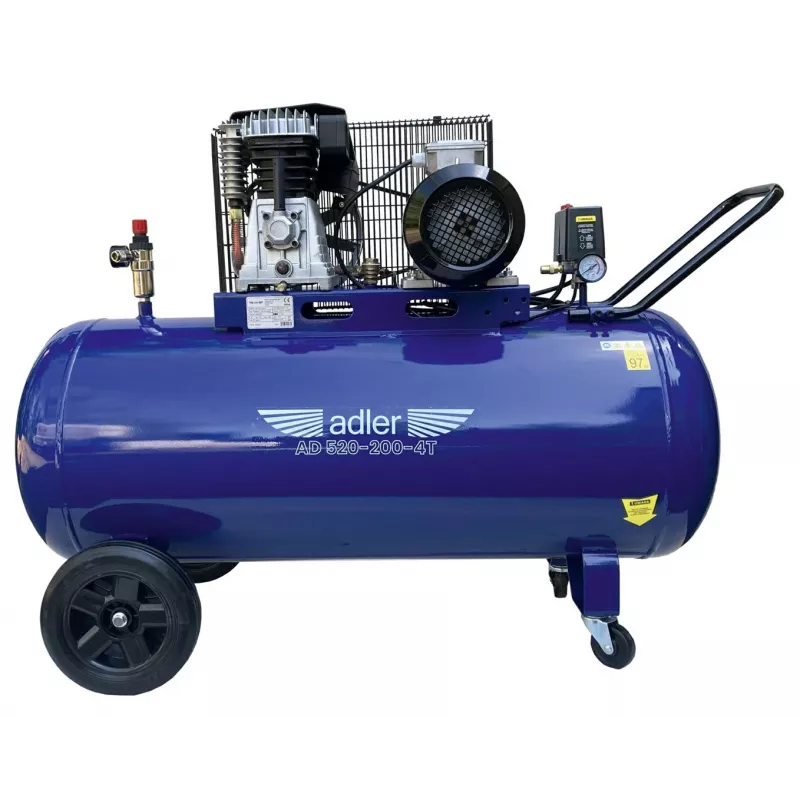

Compresor ADLER 200L AD520-200-4T 400V

The ADLER AD520-200-4T is a powerful and reliable oil-lubricated belt-driven compressor designed for demanding professional applications. With a 200-liter tank and a 4 kW (5.5 HP) motor, it delivers high performance and durability. This three-phase compressor operates at 400V/50Hz, providing a maximum pressure of 8 bar (116 PSI) and an effective output capacity of 380 L/min. Ideal for workshops, industrial environments, and continuous use.

Advantages

High motor power ensures efficient operation. Large 200L tank reduces cycling frequency. Belt-driven system for smooth and quiet performance. Oil-lubricated pump extends service life. Equipped with two pressure gauges for precise monitoring. Wheeled design for easy mobility.

Suitable for

• Professional workshops
• Industrial applications
• Continuous pneumatic tool operation
• Painting and sandblasting

Key specifications

• Brand: ADLER
• Model: AD520-200-4T
• EAN: 5907683154875
• Category: Compressor
• Power Supply: 400V / 50Hz (Three-phase)
• Motor Power: 4 kW (5.5 HP)
• Tank Capacity: 200 L
• Max Pressure: 8 bar
• Suction Capacity: 520 L/min
• Effective Output Capacity: 380 L/min
• Pump Speed: 1050 RPM
• Number of Cylinders: 2
• Drive Type: Belt-driven
• Lubrication: Oil-lubricated
• Noise Level (LwA): 97 dB
• Pressure Regulator: Yes
• Pressure Gauges: 2 (Tank & Output)
• Drain Valve: Yes
• Mobility: Wheeled

Recommendations

For optimal performance, use in a well-ventilated area and perform regular maintenance as per the manufacturer's instructions. Ensure proper electrical installation by a qualified electrician.
