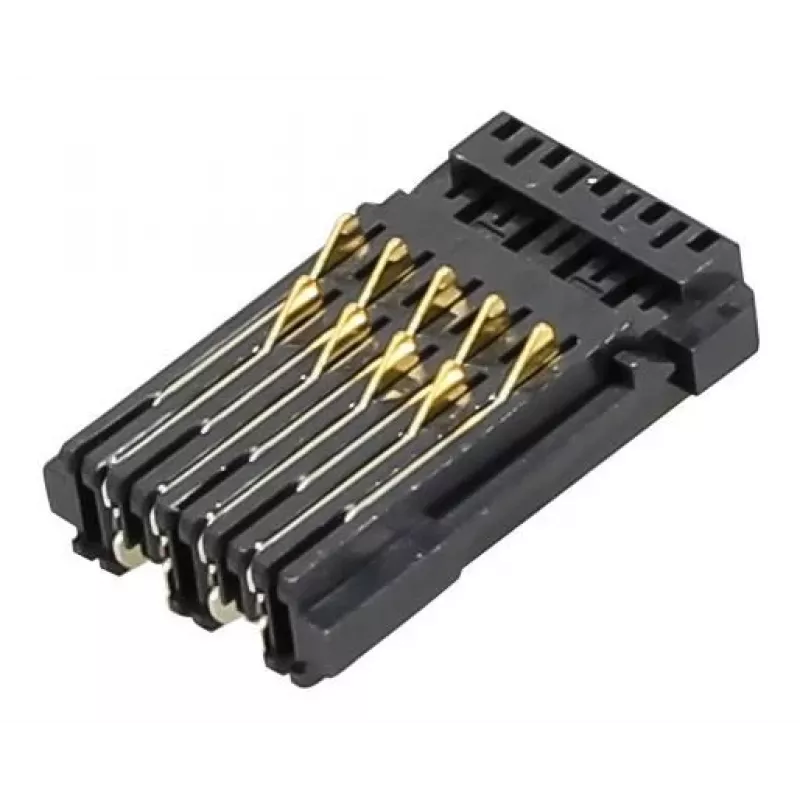

Conector Epson CSIC 2139742 — conector de cable interno para impresoras Epson

Epson connector CSIC 2139742 — internal cable connector for Epson printers is an OEM replacement component designed to restore reliable electrical and signal connections inside compatible Epson printers. Intended for repair and maintenance, this internal connector reinstates factory wiring pathways between control boards and printhead or other internal modules, helping maintain consistent print performance and device reliability.

Advantages

The connector is manufactured to OEM tolerances for form, fit and electrical contact, which ensures compatibility with supported Epson models and stable signal transmission. Its design minimizes intermittent connections and reduces the risk of signal loss caused by worn or damaged contacts. Using a correct replacement connector preserves original internal routing and helps avoid modifications that could affect printer operation.

Suitable for

• Repairing internal wiring and signal connections in compatible Epson printers
• Replacing worn, corroded or damaged internal connectors during maintenance
• Service centre and technician use for restoring factory electrical connections

Key specifications

• Type: internal cable connector for printer electronics
• Compatibility: designed for use in compatible Epson printer models (OEM form factor)
• Function: electrical and signal connection between internal modules
• Construction: OEM-grade contacts and housing for reliable mating
• Application environment: indoor, within printer chassis

How to use

Power off the printer and disconnect it from the mains before accessing internal components. Open the printer service covers according to the manufacturer service manual and locate the damaged or worn connector. Carefully release any retention clips and disconnect the existing connector from its mating header. Align the replacement connector with the mating header, ensuring correct orientation of contacts, and press firmly until the connector seats and any retention features engage. Reassemble the printer and perform a test print to confirm restored connectivity and normal operation.

Recommendations

Use only while the device is powered down and unplugged; handle contacts by the housing to avoid contamination; if unsure about disassembly, consult a trained technician or refer to the official service documentation for the specific Epson model.
