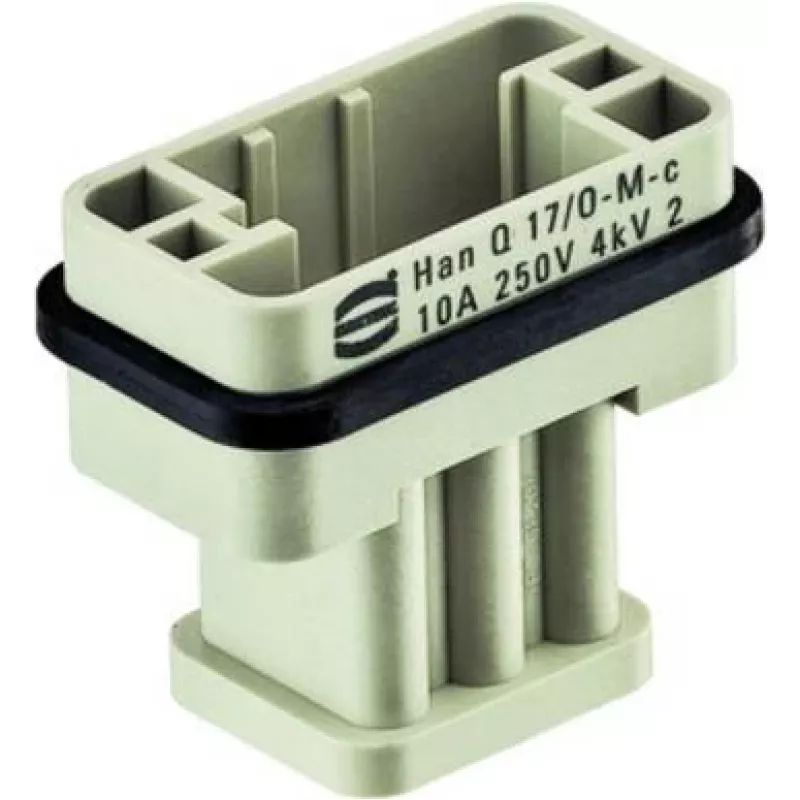

Conector Harting Han Q 17/0-M-c 10A 09120173001 – conector industrial rectangular para montaje en panel

Harting Connector Han Q 17/0-M-c 10A is a rectangular panel-mount industrial connector engineered for secure electrical connections in machines, control cabinets and industrial equipment. The product uses the modular Han Q housing format to provide mechanical protection and straightforward panel installation. With a rated current of 10 A it is suitable for low-power signal and power interconnections where a compact, robust interface is required.

Advantages

The Han Q 17/0-M-c 10A offers a compact rectangular design that simplifies integration into control panels and machine housings while maintaining mechanical stability. Its panel-mount configuration ensures reliable mating and a fixed mounting position to reduce strain on wiring. The connector is designed for industrial environments and supports repeated mating cycles and secure electrical contact for signal and low-power supply lines.

Key specifications

• Connector type: rectangular panel-mount industrial connector
• Housing format: modular Han Q rectangular housing
• Rated current: 10 A per contact
• Application: power and signal interconnections in industrial equipment
• Mounting: panel mount for secure fixed installation
• Contact arrangement: single-row modular contact layout (configured for low-power connections)

How to use

Prepare the panel cut-out according to the housing dimensions and secure the Han Q 17/0-M-c 10A connector into the panel using the appropriate screws or clamps. Terminate conductors to the contact inserts following the applicable wiring standards and ensuring correct conductor cross-sections for the 10 A rating. Mate the connector with the corresponding field-side counterpart, verifying that locking or latching features engage fully to provide mechanical retention and correct electrical contact.

Recommendations

Ensure conductor sizes, torque settings and environmental sealing match the installation requirements. For reliable long-term performance, inspect contacts and mounting periodically and replace contact inserts if signs of wear or corrosion are present. Use compatible Han Q counterparts and mounting accessories designed for rectangular rectangular panel housings to maintain mechanical and electrical integrity.
