Controlador LED Qoltec 50944

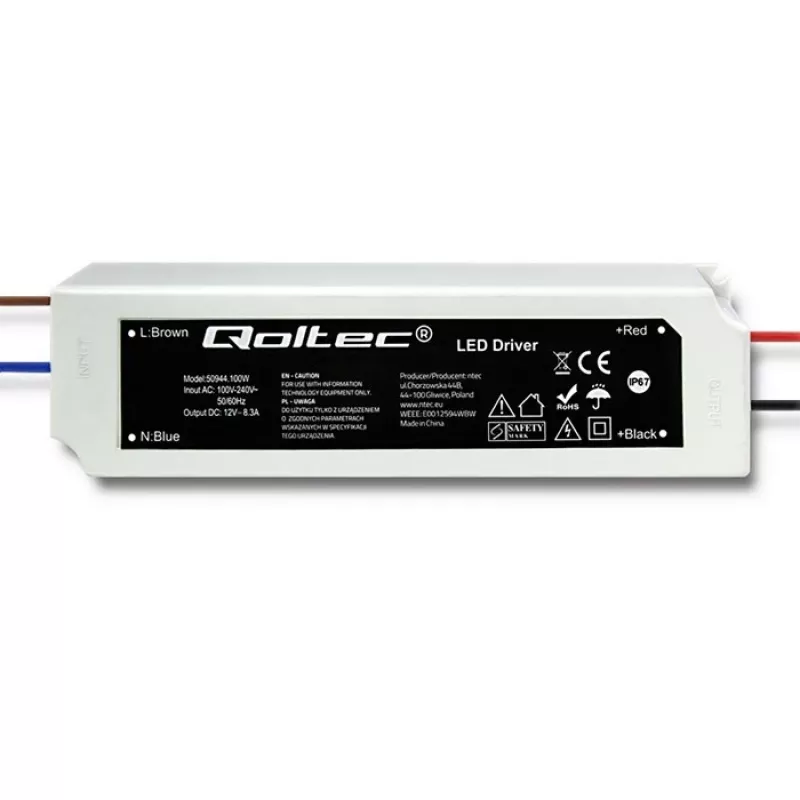

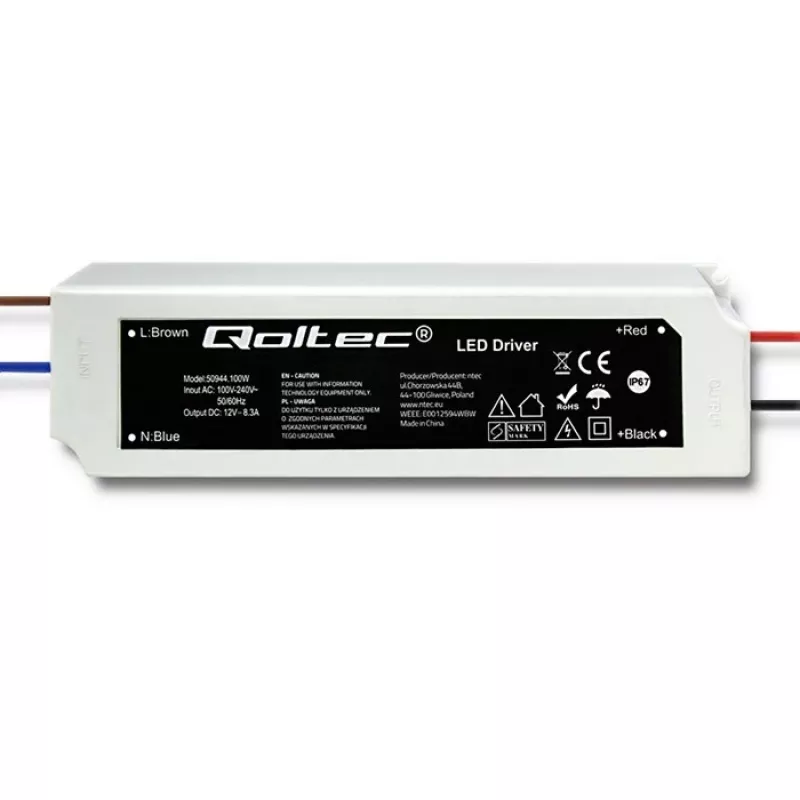

The Qoltec 50944 LED driver is a waterproof 12V DC power supply designed to power LED strips, modules, panels, bulbs and other 12V devices. It delivers up to 100 W of continuous output and features an IP67 rating for protection against dust and temporary immersion in water, making it suitable for indoor and outdoor installations where moisture or dust exposure is a concern.

Advantages

The unit provides stable 12V DC output with a maximum power of 100 W and wide AC input compatibility (90–264 V, 47–63 Hz). Its IP67 enclosure ensures reliable operation in wet or dusty environments, and the specified operating temperature range from -20 °C to 60 °C allows use in a variety of climates. Compact dimensions (52 × 190 × 37 mm) simplify mounting in constrained spaces.

Suitable for

Key specifications

How to use

Install the LED driver in a location that meets the IP67 requirement for the intended environment. Connect the AC input to a compatible mains supply (90–264 V AC, 47–63 Hz) following local electrical codes. Connect the 12 V DC output to the LED load, observing correct polarity. Ensure the total connected load does not exceed 100 W. Allow space for ventilation and secure mounting using appropriate fixtures.

Recommendations

For reliable long-term operation, avoid exceeding the rated power, protect input and output connections from mechanical stress, and follow local safety regulations during installation. If used outdoors, ensure cable entries and connection points maintain IP67 integrity.
