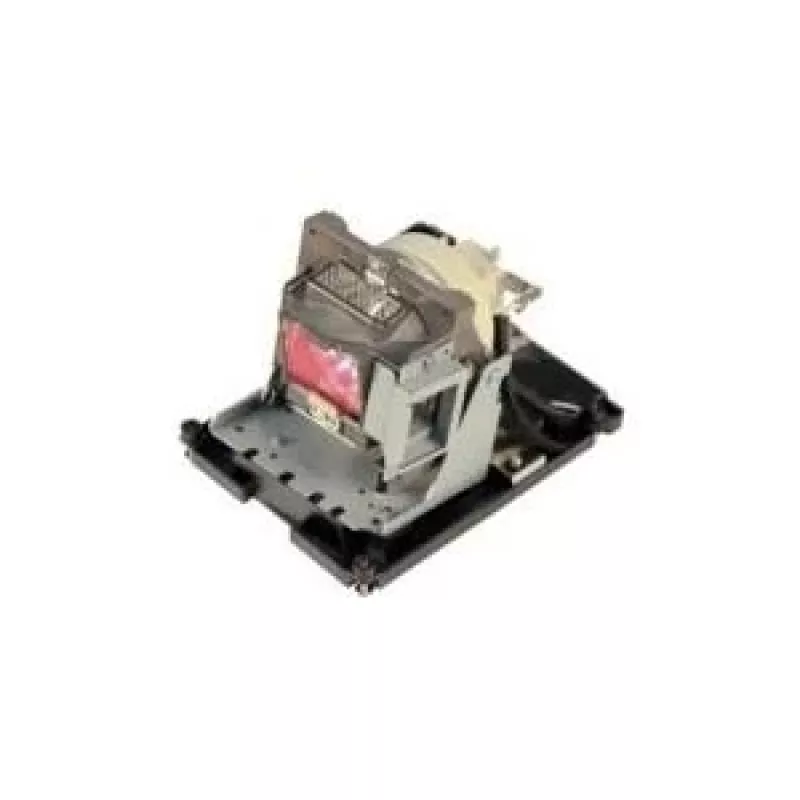

CoreParts ML12564 Módulo de lámpara de proyector para Vivitek D966HD, D967, D968U - 310W UHP, 3000h

When a Vivitek D966HD, D967, or D968U projector starts dimming in a conference room or classroom, this CoreParts ML12564 lamp module restores full brightness. It is a direct replacement for the original Vivitek 5811118436-SVV lamp, built around a 310-watt UHP burner rated for 3000 hours of service. The module includes the housing, so installation is a simple swap without touching the bare bulb.

Key specifications

• Lamp technology: UHP (Ultra High Performance)
• Wattage: 310 W
• Average lamp life: 3000 hours
• Equivalent OEM part number: Vivitek 5811118436-SVV
• Compatible projectors: Vivitek D966HD, D967, D968U
• Form factor: Lamp module with housing
• Installation: User-replaceable
• Light source: Mercury vapor

Why choose it

This lamp is engineered to match the original Vivitek specifications, ensuring consistent colour temperature and brightness across the entire screen. The pre-assembled module reduces the risk of contamination or misalignment that can occur with bare bulb replacements. With a 3000-hour rated life, it provides long intervals between maintenance, keeping total cost of ownership low.

Ideal use cases

• Corporate meeting rooms using Vivitek D966HD for presentations
• Classrooms and lecture halls with Vivitek D967 or D968U projectors
• AV rental fleets that need reliable, quick lamp swaps between events
• Home theatre setups where a bright, accurate image is essential

Good to know

Always allow the projector to cool down before replacing the lamp module. The housing protects the UHP burner and simplifies alignment, but it should still be handled with care. Dispose of the old module according to local regulations for mercury-containing lamps.
