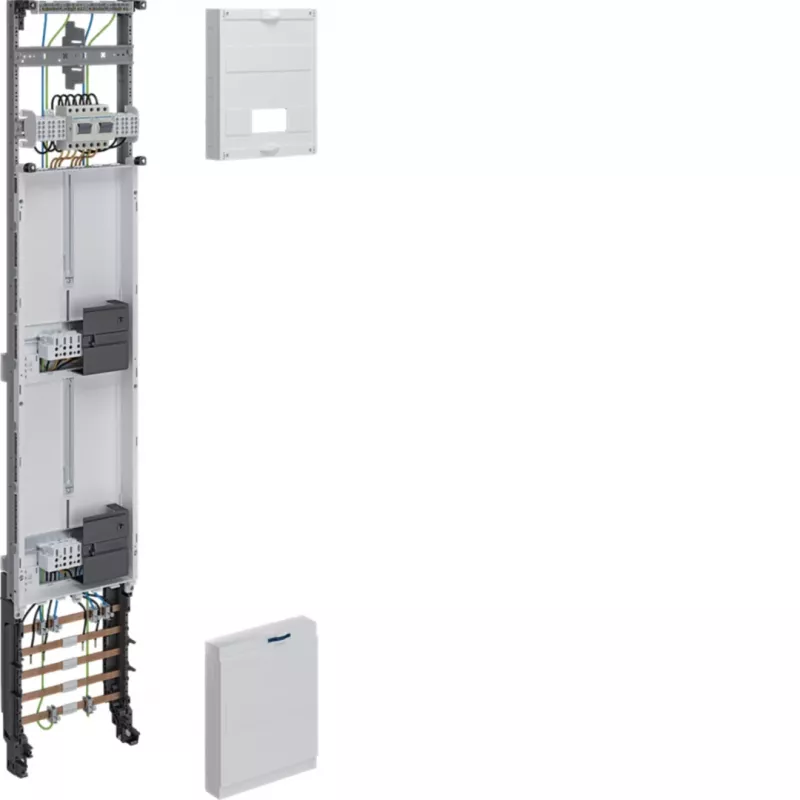

Cuadro completo Hager ZH53W3NT universZ, 1350x250 mm, 3 puntos, 2 posiciones de contador, 10 mm², con función de corte

In multi-tenant residential and commercial buildings, a reliable meter board is essential for safe power distribution and accurate metering. The Hager ZH53W3NT universZ complete field provides a pre-wired, ready-to-install solution that simplifies planning and installation.

Who is it for

Electricians and panel builders who need a compact, standard-compliant meter cabinet module for two metering points in a three-phase system. It is suitable for both eHZ and conventional meters.

Main features

• Complete field from the universZ series, dimensions 1350 x 250 mm
• Two meter places, three-phase, with integrated disconnecting function via main line branch terminal
• Main conductor cross-section 10 mm², 5-pole busbar system (L1, L2, L3, N, PE)
• Rated current 63 A, rated voltage 230/400 V AC
• Galvanized steel sheet enclosure, protection class IP2XC
• One distribution row with 12 modules (12 TE)
• Complies with DIN VDE 0603-1 and DIN 43870-1

Specifications

• Series: universZ
• Product type: Complete field
• Number of meter places: 2
• Phase type: 3-phase
• Main conductor cross-section: 10 mm²
• Disconnecting function: Integrated
• Busbar system: 5-pole (L1, L2, L3, N, PE)
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Protection class: IP2XC
• Material: Galvanized steel sheet
• Mounting type: Cabinet module
• Connection type: Screw terminals
• Number of main line branch terminals: 1 (3-pole + N)
• Number of distribution rows: 1 (12 TE / 12 modules)
• Meter compatibility: eHZ and conventional meters
• Height: 1350 mm
• Width: 250 mm

Tips

Ensure proper mounting and connection according to local regulations. The integrated disconnecting function allows safe isolation of the meter section for maintenance.
