DAHUA IPC-EB5541-AS Cámara de vigilancia IP — 2592×1944, campo de visión 180°, rotación 360°, montaje en techo/pared, Ethernet por cable, 30 fps

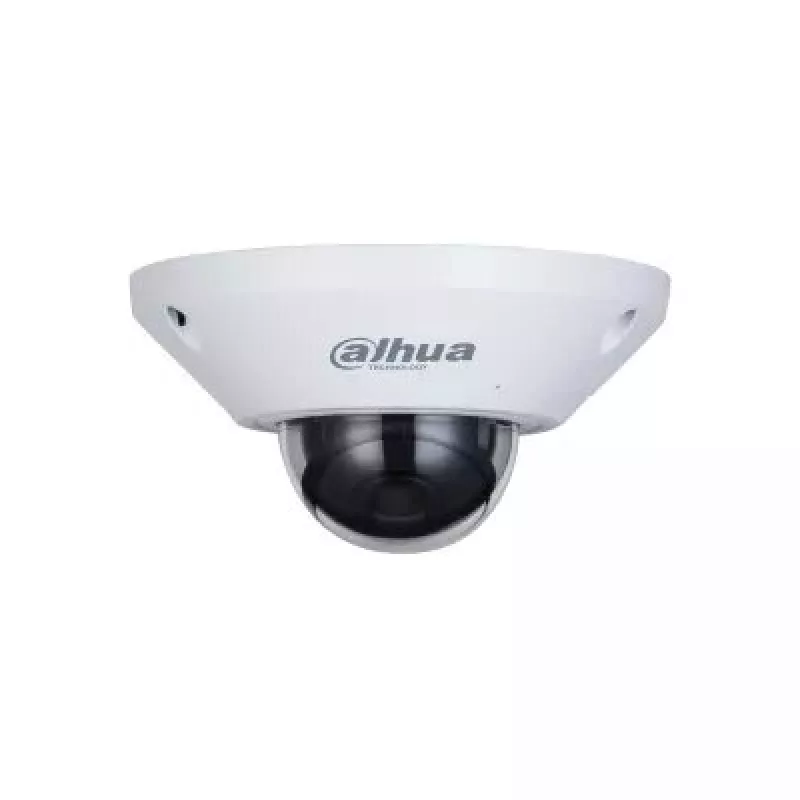

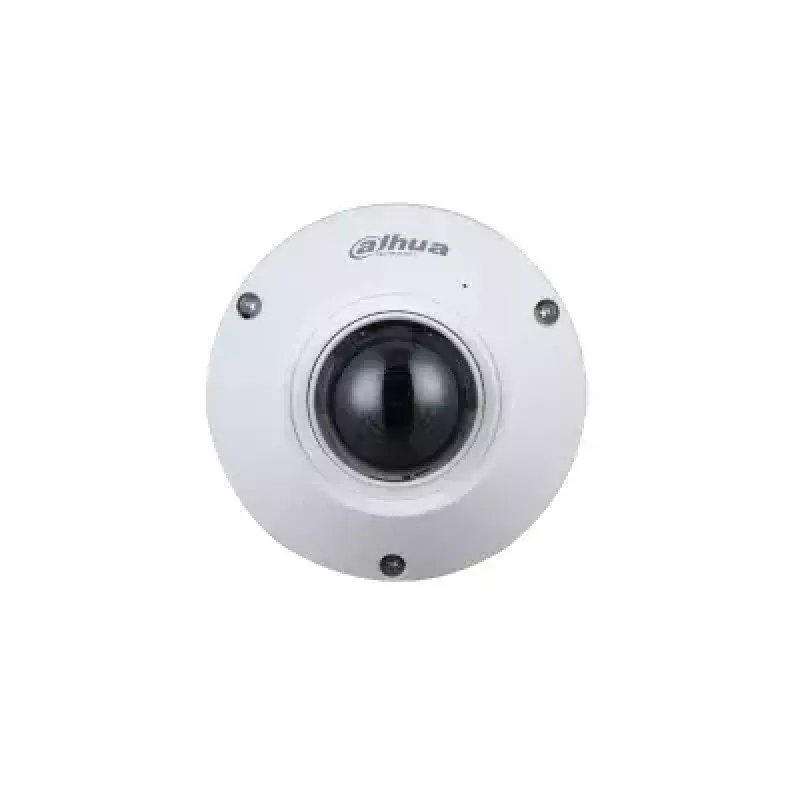

The Dahua Technology IPC-EB5541-AS is a dome IP security camera designed for indoor and outdoor surveillance. It supports ceiling, wall and pole mounting, provides 5 MP resolution (2592 x 1944) at 30 fps and wide dynamic range (WDR) for improved detail in scenes with mixed lighting. The camera is wired and supports Power over Ethernet (PoE) for data and power over a single cable, with an IP67 rating for protection against dust and water.

Advantages

This dome camera offers high-resolution imaging and WDR to capture clearer details across bright and dark areas. Low-light sensitivity allows operation in dim environments with a minimum illumination of 0.006 lx. The unit includes an integrated card reader for local storage, noise reduction for cleaner video, and multiple white balance modes (Auto, Natural, Outdoor, Regional custom, Street lamp) to adapt color rendering to different lighting conditions. Its compact, weatherproof design and support for Ethernet LAN make installation and network integration straightforward.

Suitable for

• Indoor surveillance of retail, offices, corridors
• Outdoor monitoring of entrances, parking areas, building perimeters
• Locations requiring discreet dome-style cameras mounted on ceilings or walls

Key specifications

• Form factor: Dome
• Resolution: 5 MP (2592 x 1944)
• Frame rate: 30 fps
• Field of view: 180°
• Sensor type and size: CMOS, 1/2.7" optical sensor
• Minimum illumination: 0.006 lx
• Pan range: 0–355°
• Wide Dynamic Range (WDR): Yes
• White balance modes: Auto, Natural, Outdoor, Regional custom, Street lamp
• Shutter type: Electronic
• Noise reduction: Yes
• Local storage: Integrated card reader
• Connectivity: Wired Ethernet LAN
• Power: Power over Ethernet (PoE)
• Ingress protection: IP67 (suitable for outdoor use)
• Colour: White
• Weight: 387 g

How to use

Mount the camera on a ceiling, wall or pole using appropriate fasteners and follow manufacturer instructions for mounting orientation. Connect the camera to your network switch or NVR via Ethernet cable; PoE simplifies installation by supplying power through the same cable. Configure network settings and video parameters using the Dahua configuration interface or supported VMS, set white balance and WDR according to the scene, and format/enable local storage on the integrated card if required. Adjust pan within the 0–355° range for optimal coverage.

Recommendations

For reliable outdoor performance, install the camera with weather-protective mounting and ensure the Ethernet cable and connectors are rated for outdoor use. Test low-light performance on-site and adjust WDR and noise reduction settings to balance detail and clarity.
