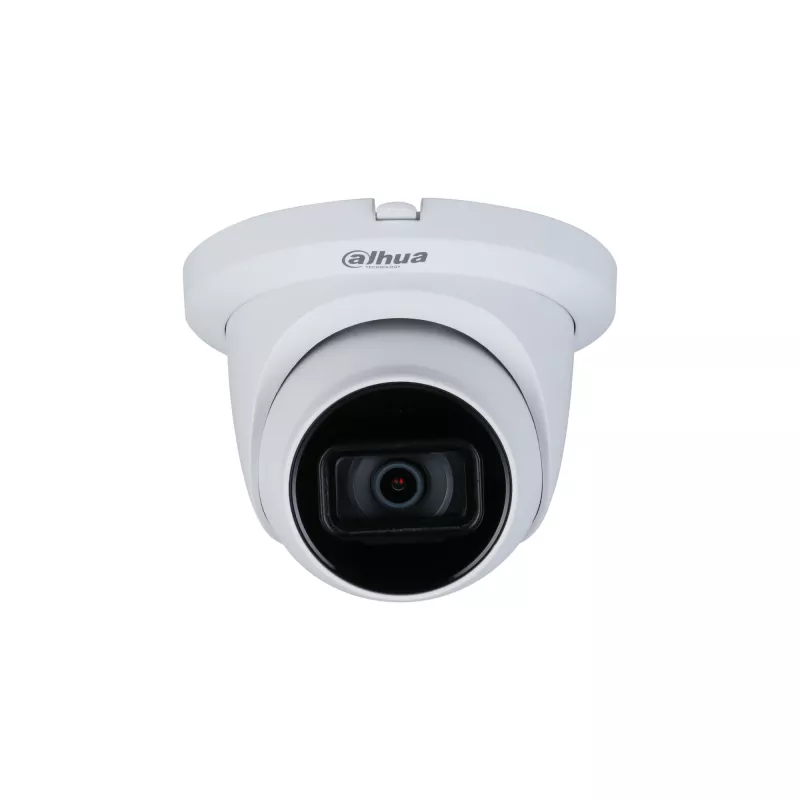

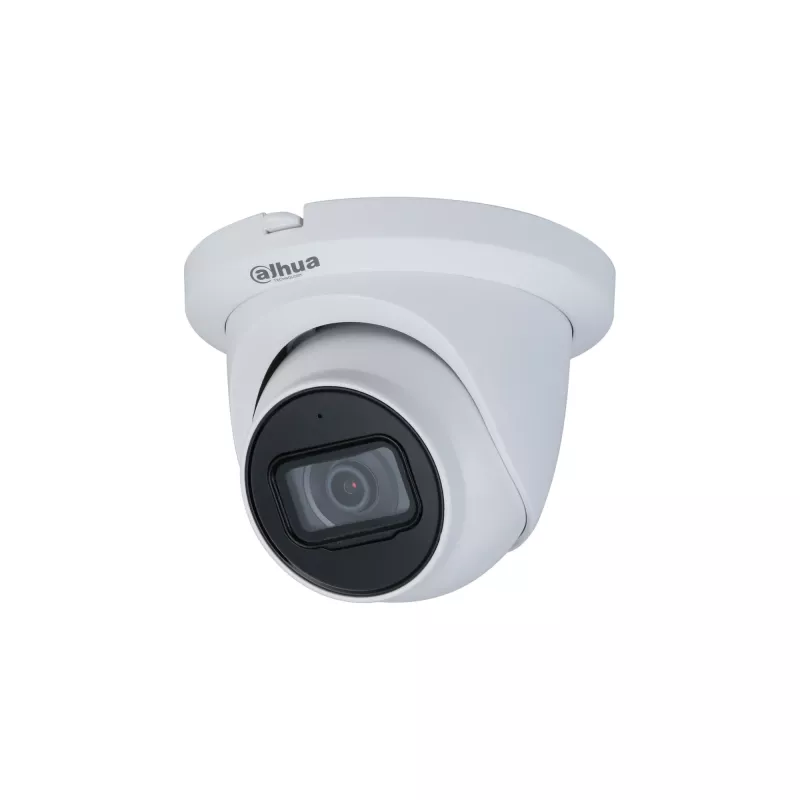

Dahua Technology Lite HAC-HDW1500TMQ(-A) Cámara IP de vigilancia tipo domo para interior y exterior 2880 x 1620 píxeles techo/pared

The Dahua Technology Lite HAC-HDW1500TMQ(-A) 2880 x 1620 is an IP security camera designed for indoor and outdoor surveillance. Housed in a white dome enclosure, this wired camera supports ceiling or wall mounting and delivers high-resolution imagery with a 2880 x 1620 sensor. Its CMOS image sensor, broad tilt range and 360° rotation provide flexible installation and wide-area coverage, while a low minimum illumination of 0.005 lx supports reliable performance in low-light environments. The camera’s detection, observation and recognition ranges allow staged assessment of scenes at increasing detail.

Advantages

The camera combines high pixel resolution and a sensitive CMOS sensor to produce detailed images useful for identification and monitoring. Wired connectivity ensures stable data transmission for continuous recording and live monitoring. Its dome form factor and white finish enable discreet, professional installation on ceilings or walls. Built-in rotation and a wide tilt angle let installers optimize viewing direction and cover large areas without additional moving parts. Low minimum illumination extends operational capability in dimly lit locations.

Suitable for

• Retail stores and shopping areas requiring high-resolution monitoring
• Office interiors and lobbies where ceiling or wall mounting is preferred
• Parking lots and building entrances for outdoor surveillance
• Corridors and common areas where low-light performance is needed

Key specifications

• Resolution: 2880 x 1620 pixels
• Form factor: dome
• Connectivity: wired
• Placement: indoor and outdoor
• Mounting: ceiling or wall
• Sensor type: CMOS
• Minimum illumination: 0.005 lx
• Rotation: 360°
• Tilt angle: 0°–78°
• Detection distance: 63.6 m
• Observation distance: 25.4 m
• Recognition distance: 12.7 m
• Weight: 0.4 kg
• Colour: white

How to use

Install the camera on a suitable ceiling or wall surface using appropriate fixings and cable routing for the wired connection. Position and secure the dome so the required field of view is achieved, then adjust rotation and tilt to cover the target area. Connect the camera to your network video recorder or PoE switch according to the system design and configure network settings, resolution and recording parameters through the recorder’s or camera’s management interface. Verify image framing, focus and low-light performance after configuration.

Recommendations

For best results, mount the camera at a location that balances wide coverage with the necessary recognition distance for your use case. Use stable wired network infrastructure and configure appropriate recording schedules, motion detection zones and retention policies. Regularly inspect the dome for dirt or obstructions and clean with a soft, non-abrasive cloth to maintain image clarity.
