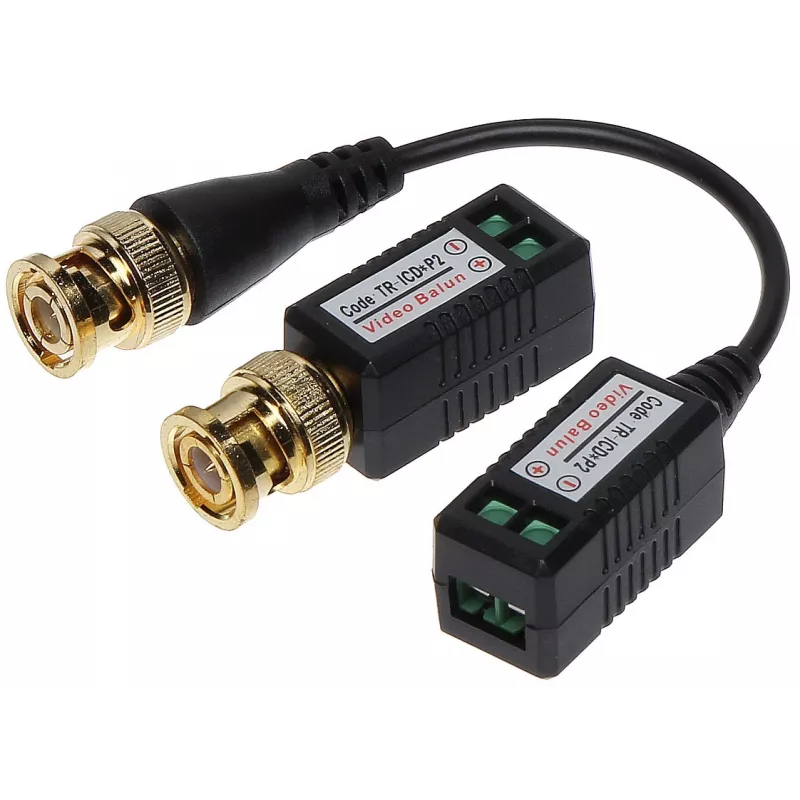

DELTA TR-1CD*P2 Transformador de vídeo

The DELTA TR-1CD*P2 is a passive single-channel video transformer designed to transmit video signals over twisted-pair cable. It matches the impedance of a 75Ω coaxial cable to a 100Ω balanced line, enabling video transmission up to 400 m over category 5 twisted-pair cable and eliminating unbalanced interference.

Key features

• Passive video transformer for transmitting video over twisted-pair cable
• Impedance matching between 75Ω coaxial and 100Ω balanced line

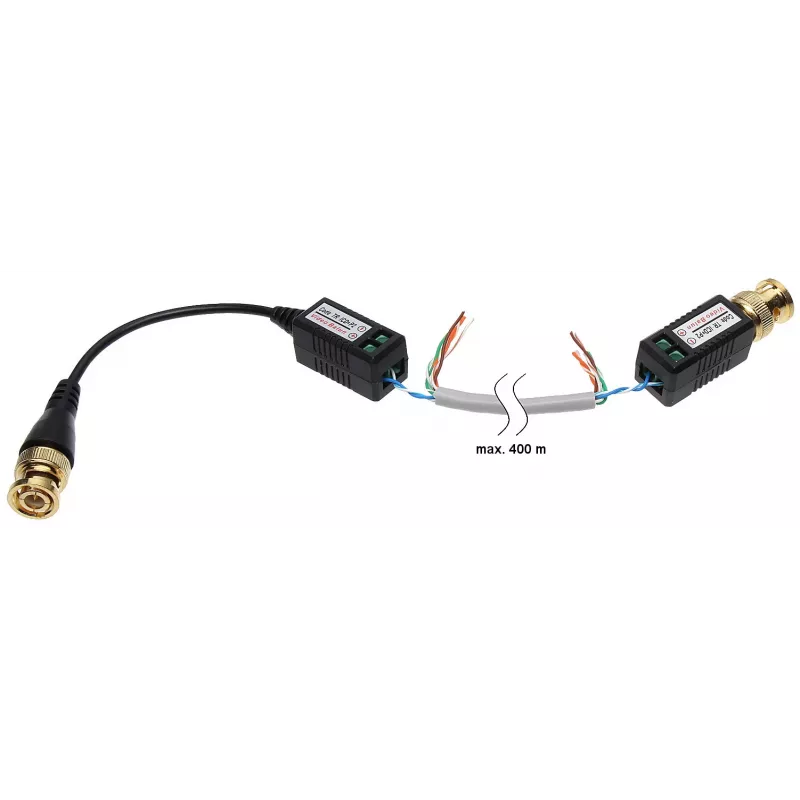

• Video range up to 400 m over category 5 UTP cable
• Eliminates unbalanced interference
• Supports AHD up to 5 Mpx, HD-CVI up to 8 Mpx 4K UHD, HD-TVI up to 8 Mpx 4K UHD, and CVBS PAL/NTSC

Specifications

• Brand: Delta
• MPN: TR-1CD*P2
• Device type: Passive
• Number of channels: 1
• Voltage in/out 75Ω (CVBS): 1 Vpp
• CMRR (dB @ 5MHz): 50 dB
• Coaxial connector impedance: 75 Ω
• Balanced connector impedance: 100 Ω
• Balanced connector type: Cable terminals
• Coaxial connector type: 1 x BNC - plug on cable 0.09 m; 1 x BNC - straight plug
• Operating temperature: -10 °C ... 55 °C
• Permissible relative ambient humidity: < 95 %
• Weight: 0.021 kg
• Dimensions: 16 x 15 x 46 mm
• Video range: 250 m @ 720p - UTP cat. 5e; 150 m @ 1080p - UTP cat. 5e; 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
• Attenuation: 4.43 MHz @ 0.24 dB; 11 MHz @ 0.46 dB; 21 MHz @ 1.03 dB; 38 MHz @ 0.89 dB; 42 MHz @ 0.89 dB; 67.5 MHz @ 1.32 dB (attenuation applies to two devices connected together)
• Packaging: 2 pcs.
