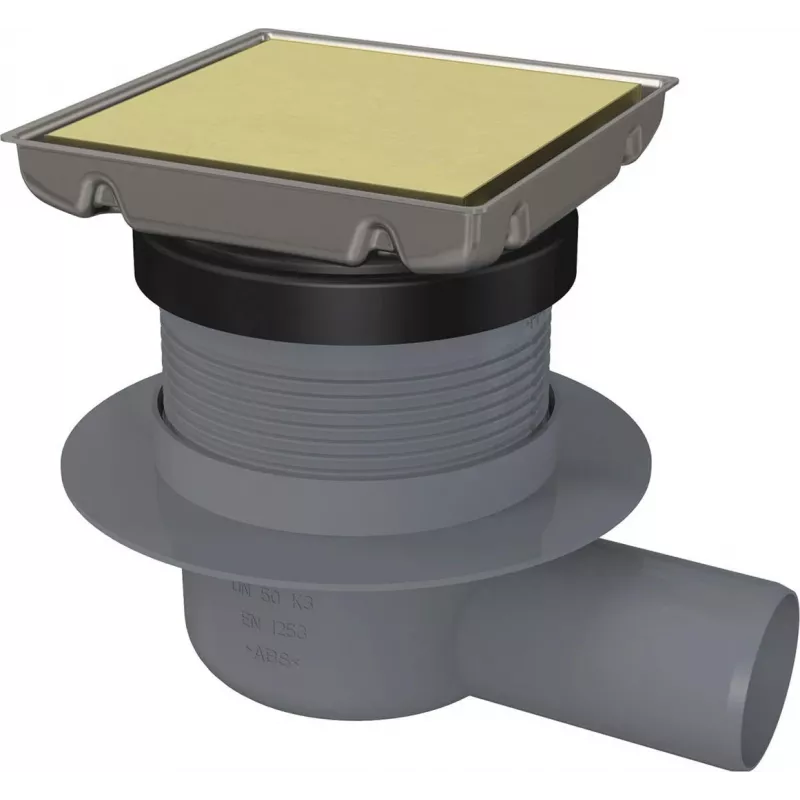

Desagüe de ducha DEANTE Point Drain - reversible 100x100 mm acero inoxidable

The DEANTE Point Drain - Reversible is a high-quality floor drain designed for modern showers, wet rooms, and bathroom floors. Featuring a reversible grate that accepts either plain stainless steel or tile inserts, this drain offers flexibility to match any tiled surface. The compact design with a 50 mm water seal effectively prevents odors, while the removable siphon allows easy cleaning. Manufactured from durable ABS plastic with a brushed stainless steel grate (Grade 304), it complies with EN 1253 and is rated for pedestrian areas (load class K3).

Advantages

Reversible grate design for tile or stainless steel finish; integrated water trap for odor prevention; easy-to-clean removable siphon; high flow rate up to 30 L/min; robust construction suitable for tiled floors.

Suitable for

• Shower drains
• Wet room floors
• Bathroom floor drainage
• Residential and light commercial applications

Key specifications

• Drain Type: Point Drain
• Grate Type: Reversible (Tileable / Stainless Steel)
• Grate Dimensions: 100 x 100 mm
• Outlet Diameter: 50 mm
• Minimum Installation Height: 60 mm
• Flow Rate: Up to 30 L/min
• Water Seal Depth: 50 mm
• Body Material: ABS Plastic
• Grate Material: Stainless Steel (Grade 304)
• Application: Shower, Wet Room, Bathroom Floor
• Anti-Odor System: Yes (Integrated Water Trap)
• Cleaning Access: Removable Siphon
• Load Class: K3 (Pedestrian Areas)
• Connection Type: Horizontal, Solvent Weld
• Standard Compliance: EN 1253
• Grate Finish: Brushed Stainless Steel
• Grate Design Options: Plain Stainless Steel / Tile Insert
• Siphon Type: Compact, Removable
• Installation: Floor-mounted, suitable for tiled floors

Recommendations

Ensure correct installation height and connection type. Compatible with standard 50 mm waste pipes. For best results, consult a professional plumber.
