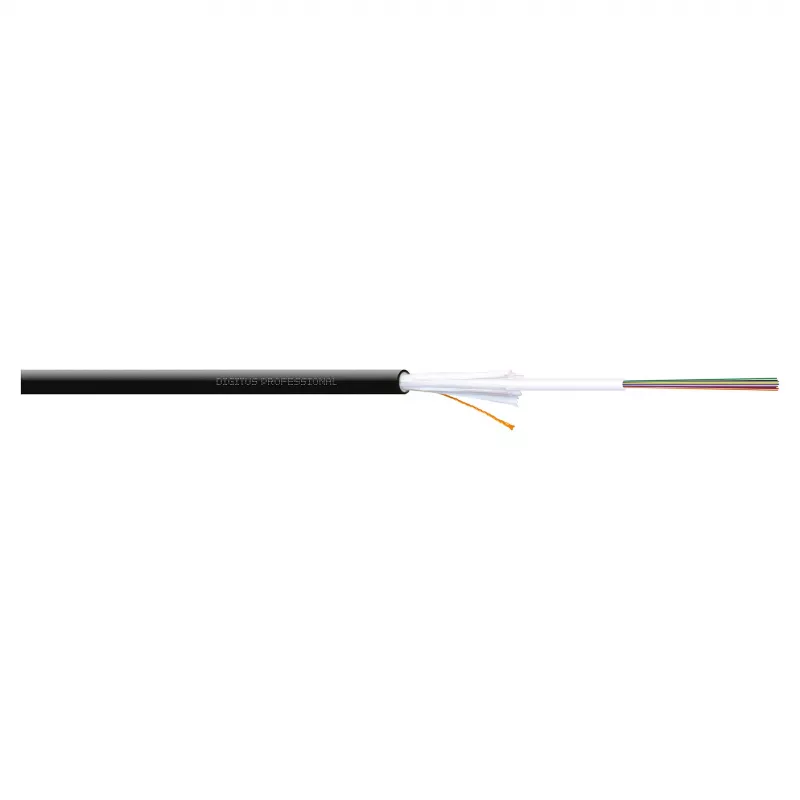

DIGITUS Cable de fibra óptica A-I-DQ(ZN)BH 8G50/125 MM OM4 8 fibras interior/exterior LSZH negro

The DIGITUS LWL A-I-DQ(ZN)BH 8G50/125 MM OM4 8 Fibers Indoor/Outdoor Cable is a high-performance fiber optic cable designed for universal installation. It features 8 multimode OM4 fibers with 50/125 µm core/cladding, providing excellent bandwidth and low attenuation for demanding network applications. The cable is suitable for both indoor and outdoor use, with a robust loose tube construction, gel-free dry design, and LSZH (Low Smoke Zero Halogen) sheath for enhanced safety. It meets strict fire performance standards (flame retardant, halogen-free, low smoke) and offers UV resistance and rodent protection.

Advantages

This cable combines the benefits of OM4 performance with a rugged design suitable for diverse environments. The LSZH sheath ensures minimal toxic gas emission in case of fire, making it ideal for public buildings and data centers. The dry, gel-free construction simplifies installation and termination, while the non-metallic strain relief (glass yarns) provides excellent tensile strength without conductivity.

Suitable for

• Data center backbone cabling
• Local area network (LAN) installations
• Fiber-to-the-desk (FTTD) applications
• Indoor/outdoor campus networks
• Industrial environments requiring flame retardant and halogen-free cables

Key specifications

• Fiber Type: Multimode (MM)
• Fiber Grade: OM4
• Number of Fibers: 8
• Core/Cladding Diameter: 50/125 µm

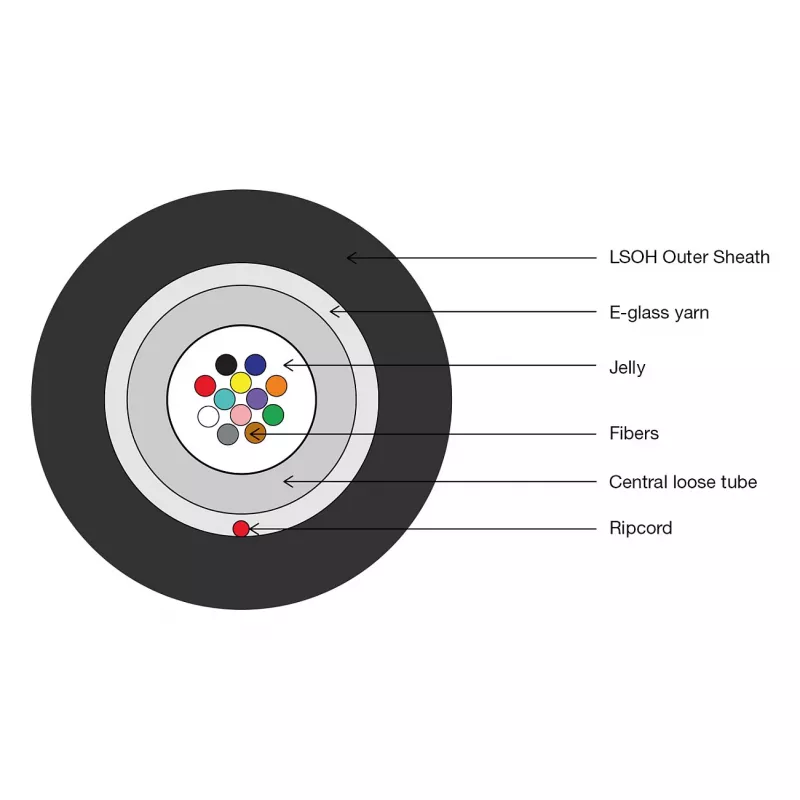

• Cable Construction: Loose Tube, Dry (Gel-free)
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Sheath Color: Black
• Application Environment: Universal (Indoor/Outdoor)
• Strain Relief: Non-metallic (Glass Yarns)
• Outer Diameter: Approx. 7.2 mm
• Attenuation @ 850nm: ≤ 2.5 dB/km
• Attenuation @ 1300nm: ≤ 0.8 dB/km
• Bandwidth @ 850nm (OFL): 4700 MHz*km
• Bandwidth @ 1300nm (OFL): 500 MHz*km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Fire Performance: Flame Retardant (IEC 60332-1-2), Halogen-free (IEC 60754-1/2), Low Smoke (IEC 61034-2)
• UV Resistance: Yes
• Rodent Protection: Yes
• Standards Compliance: ISO/IEC 11801, EN 50173-1, IEC 60794-1

Recommendations

For optimal performance, use with OM4-rated connectors and patch panels. Ensure proper cable management to maintain bend radius. This cable is not pre-terminated; field termination or splicing is required.
