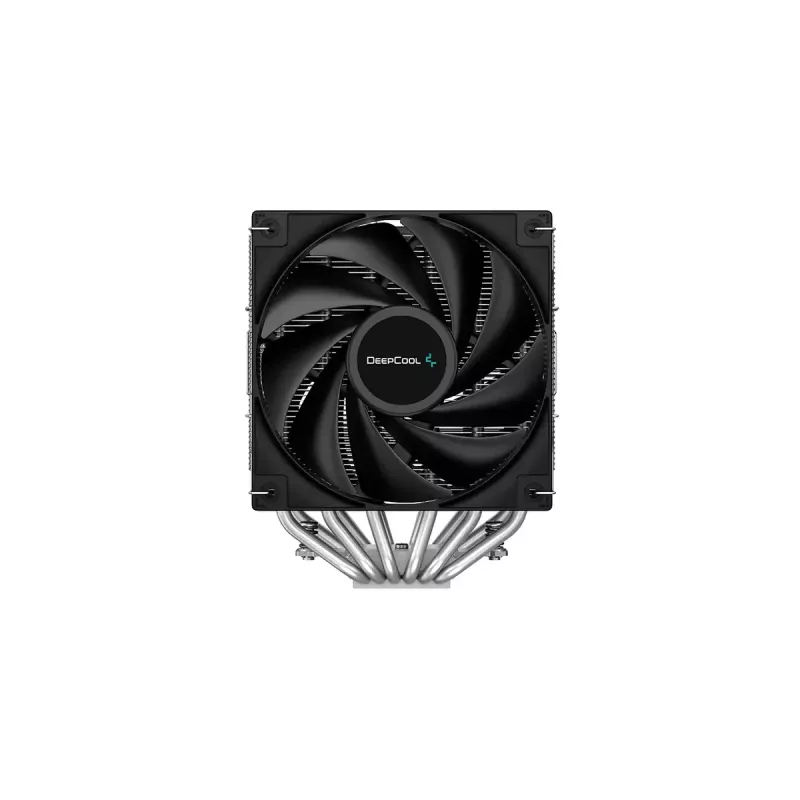

Disipador de aire DeepCool AG620 — 6 heatpipes, ventilador de 120 mm, TDP 260 W, altura 157 mm, rodamiento hidráulico

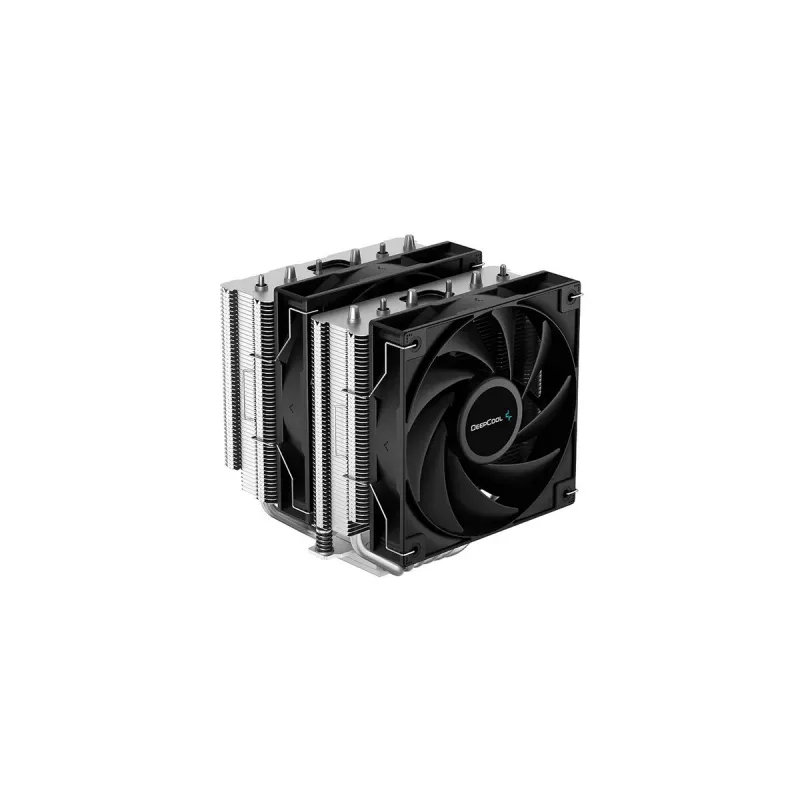

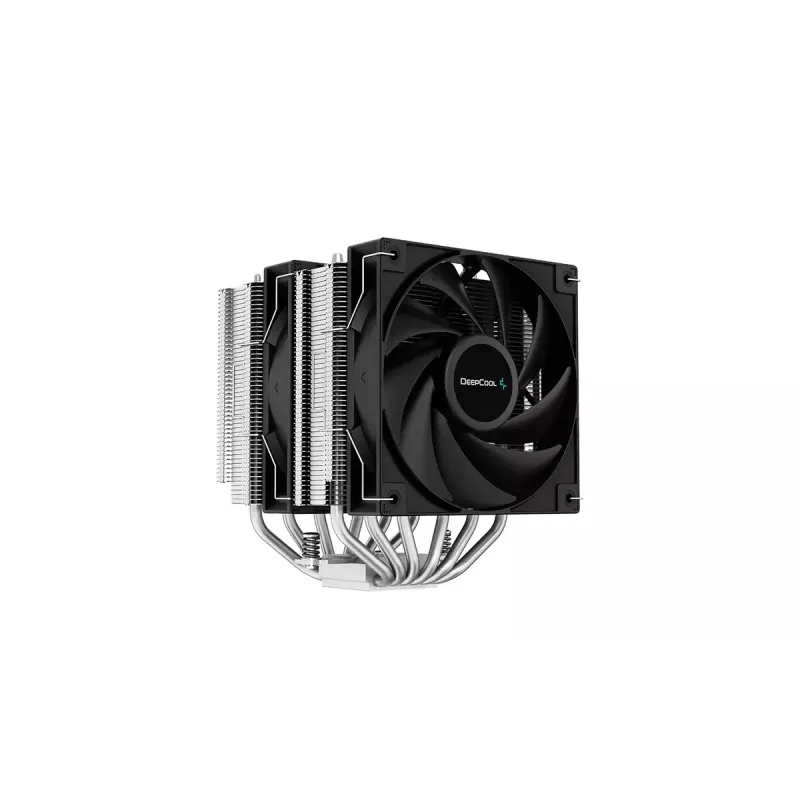

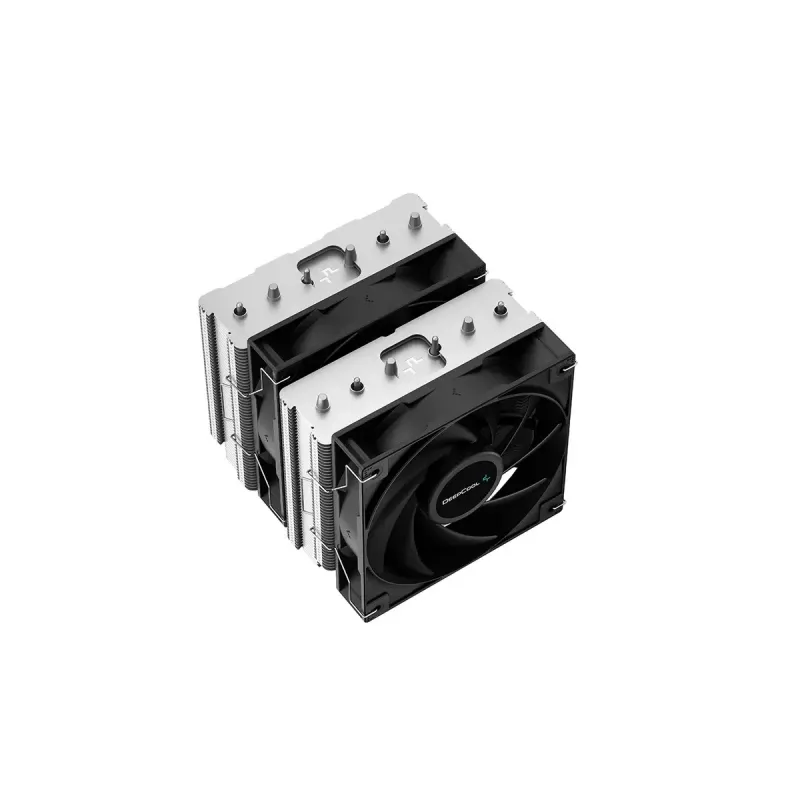

The DeepCool AG620 is a dual-tower 120mm air cooler engineered for effective heat dissipation in desktop PCs. It delivers up to 260 W of thermal design power handling in a compact 129 × 136 × 157 mm footprint and comes in aluminium and black finishes. The cooler includes a 120 mm PWM fan with a speed range from 300 to 1850 RPM and a hydraulic bearing for quieter operation and increased longevity.

Advantages

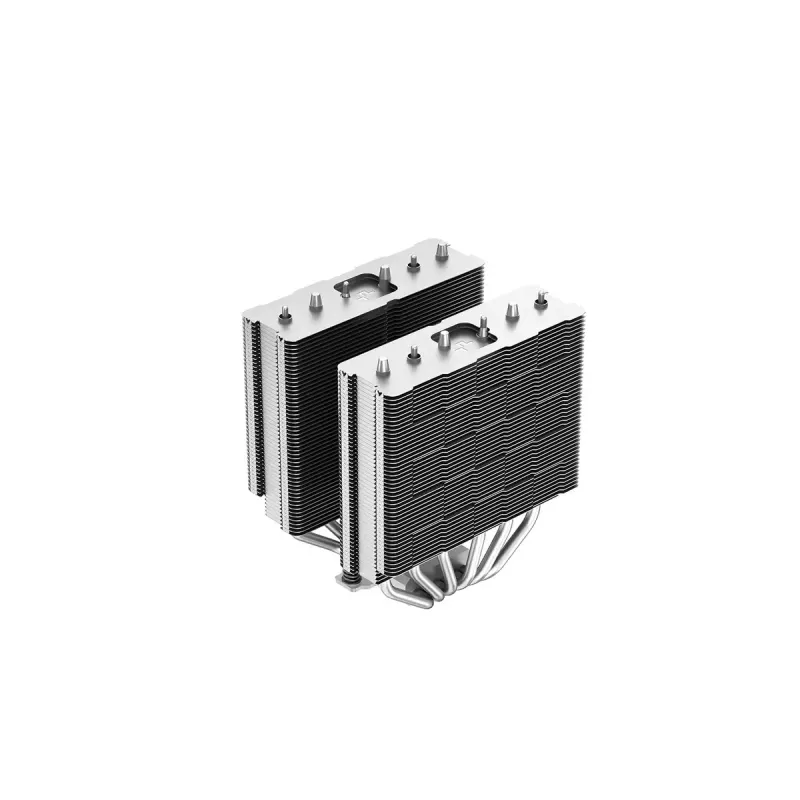

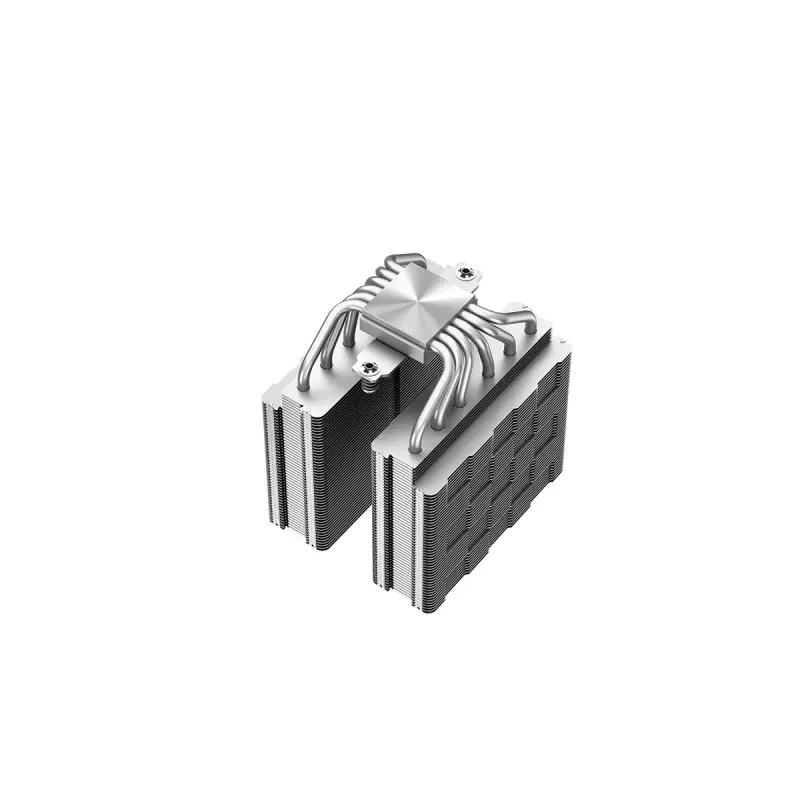

The AG620 combines a dual-tower heatsink with a matrix fin array and optimized bidirectional heat pipe technology to reduce thermal resistance across a wide TDP range. Its fan supports automatic PWM for balanced airflow and low noise (≤29.4 dB(A)), while the included all-metal mounting brackets provide secure, universal compatibility with modern Intel and AMD sockets. The design focuses on efficient phase-change heat transfer and dense fin stacking to improve overall cooling performance.

Suitable for

• High-performance desktop CPUs up to 260 W TDP
• Compact mid-tower and full-tower PC builds where a dual-tower cooler fits (height 157 mm)
• Systems requiring quiet operation with automatic PWM fan control

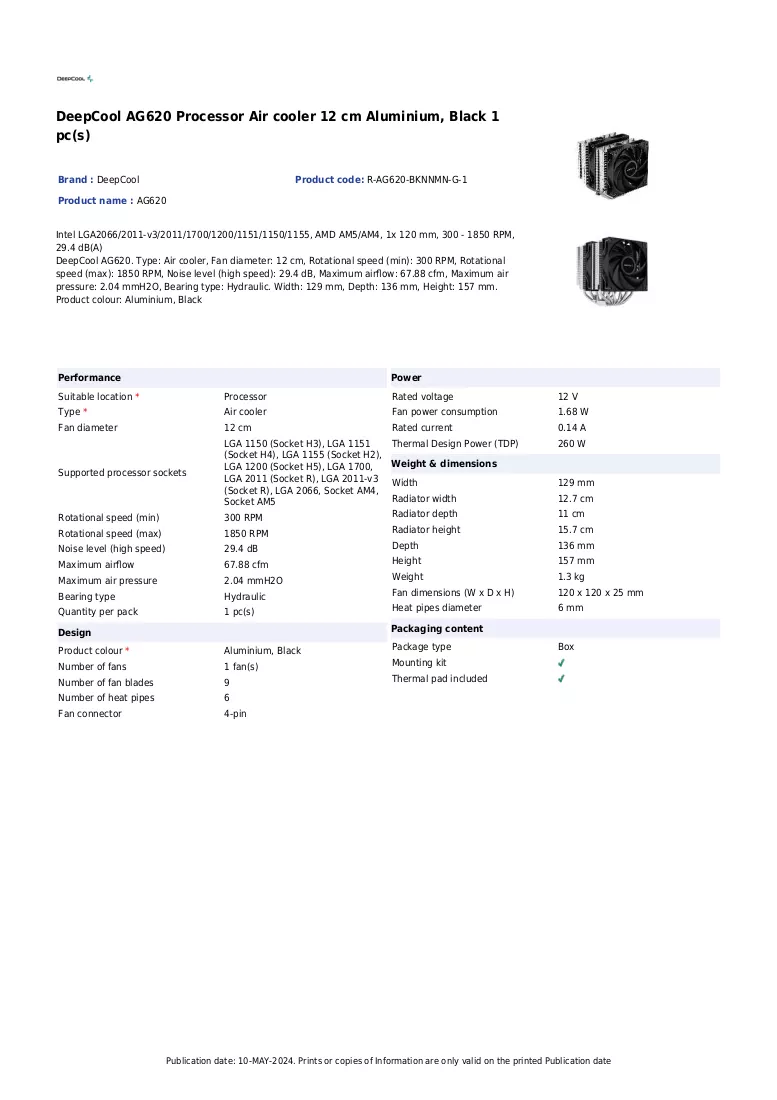

Key specifications

• Type: Air cooler

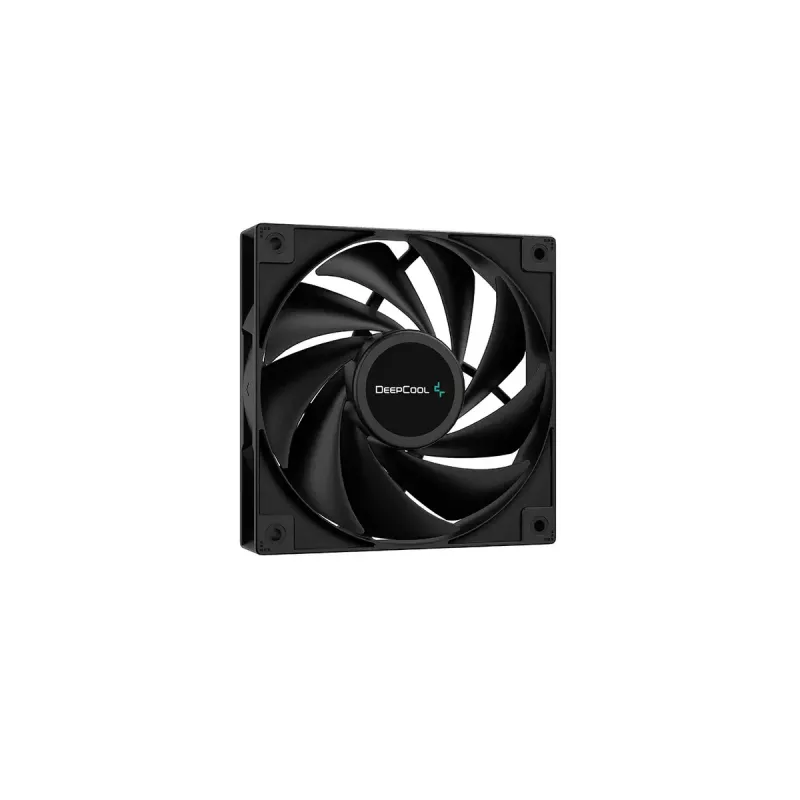

• Fan diameter: 120 mm
• Fan speed: 300–1850 RPM
• Noise level: ≤29.4 dB(A)
• Airflow: 67.88 CFM
• Maximum cooling power (TDP): 260 W
• Max air pressure: 2.04 mmH2O
• Bearing type: Hydraulic

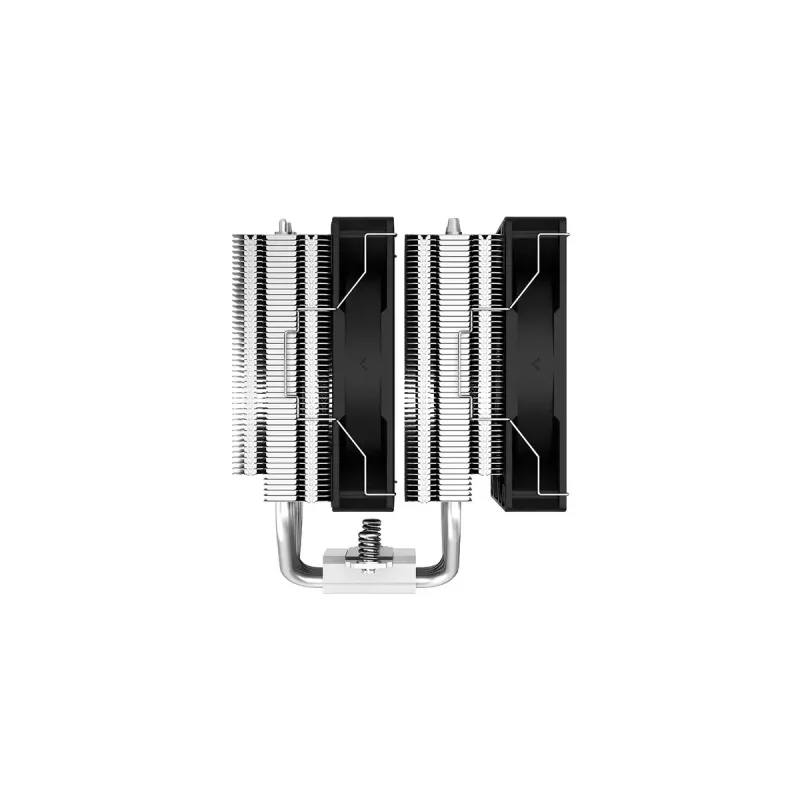

• Dimensions (W × D × H): 129 × 136 × 157 mm
• Weight: 1.3 kg
• Supported sockets: Intel LGA 1151/1150/1155/1200/1700/2011/2011‑v3/2066; AMD AM4/AM5
• Colour: Aluminium, Black

How to use

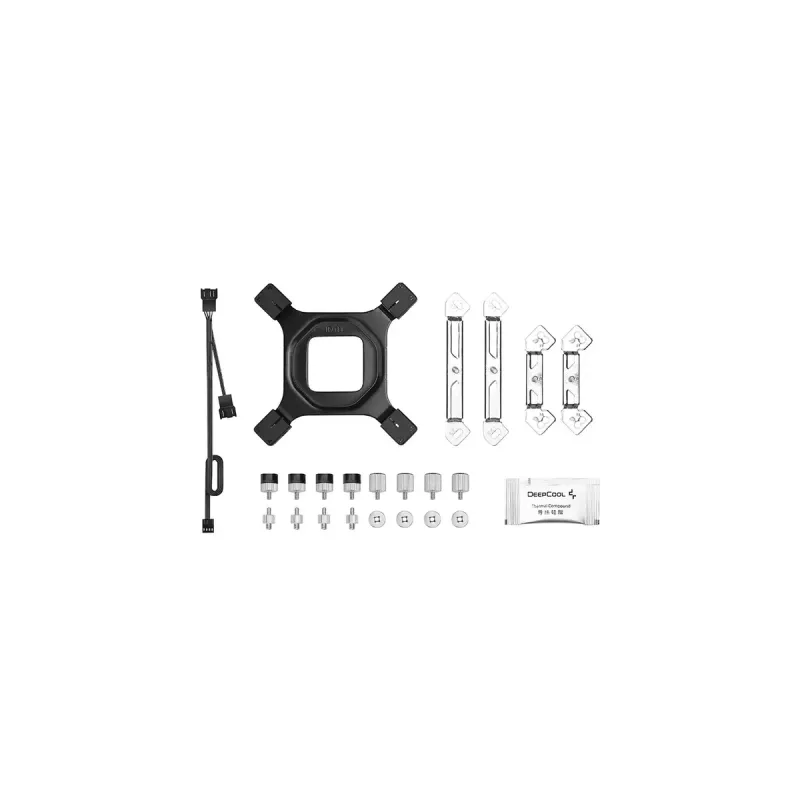

Install the DeepCool AG620 following the included five-step mounting procedure: attach the all-metal mounting brackets for your CPU socket, apply thermal paste to the CPU surface, position the dual-tower heatsink with even contact pressure, secure the cooler to the motherboard, and connect the 4‑pin PWM fan header to the CPU_FAN or appropriate fan header. Ensure sufficient clearance for RAM and case components before final mounting.

Recommendations

For best results, use a high-quality thermal paste and enable PWM control in BIOS or motherboard software to balance cooling performance and noise. Verify case compatibility for the 157 mm cooler height and confirm RAM clearance when installing near tall memory modules.
