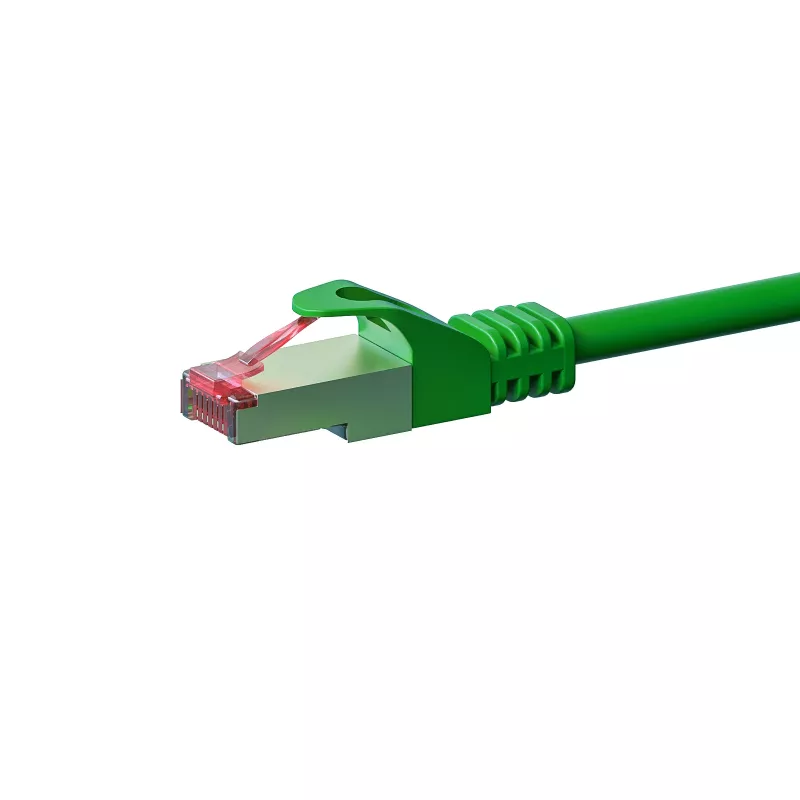

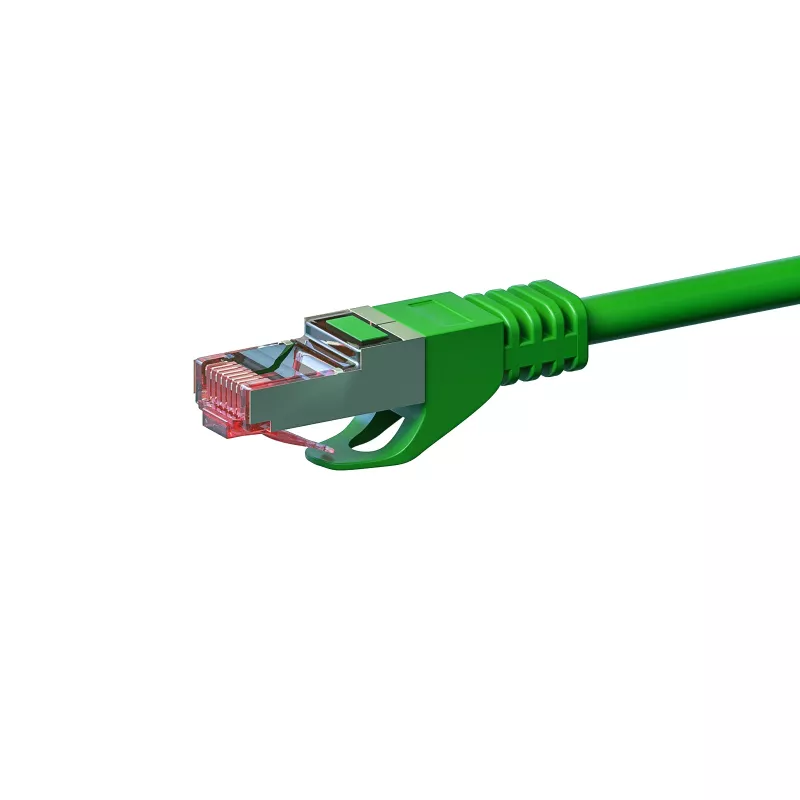

DSIT CAT 6 Cable de red LSOH - S/FTP - 50 metros - verde (DC-S63-500)

Network installers and IT technicians working in office buildings or data centers often need a reliable, high-performance cable that meets strict fire safety regulations. The DSIT CAT 6 S/FTP LSOH cable in green is built for exactly those environments. With 50 meters of solid bare copper conductors, each pair individually foil-shielded and an overall braid screen, this cable delivers exceptional protection against alien crosstalk and EMI, ensuring stable 10 Gigabit Ethernet performance up to 250 MHz.

Key specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket: LSOH (Low Smoke Zero Halogen)
• Length: 50 meters
• Colour: Green
• Conductor: Solid bare copper, 23 AWG
• Pairs: 4 twisted pairs
• Impedance: 100 Ohm
• Bandwidth: 250 MHz
• Max data rate: 10GBASE-T
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• RoHS compliant: Yes

Why choose it

The LSOH jacket emits very low smoke and no toxic halogens when exposed to fire, making it the safe choice for public buildings, offices, and enclosed spaces where evacuation is critical. The S/FTP shielding provides superior signal integrity, allowing you to run cables near power lines or other interference sources without performance loss. The green colour aids quick identification in complex installations.

Ideal use cases

• Structured cabling in office buildings and data centers
• 10 Gigabit Ethernet backbone connections
• Installations requiring LSOH fire safety compliance
• High-density environments with significant EMI

Good to know

Supplied on a reel for easy pulling and storage. The cable is designed for indoor use and can be terminated with standard RJ45 connectors. Operating temperature range: -20°C to +60°C. Outer diameter approximately 7.2 mm.
