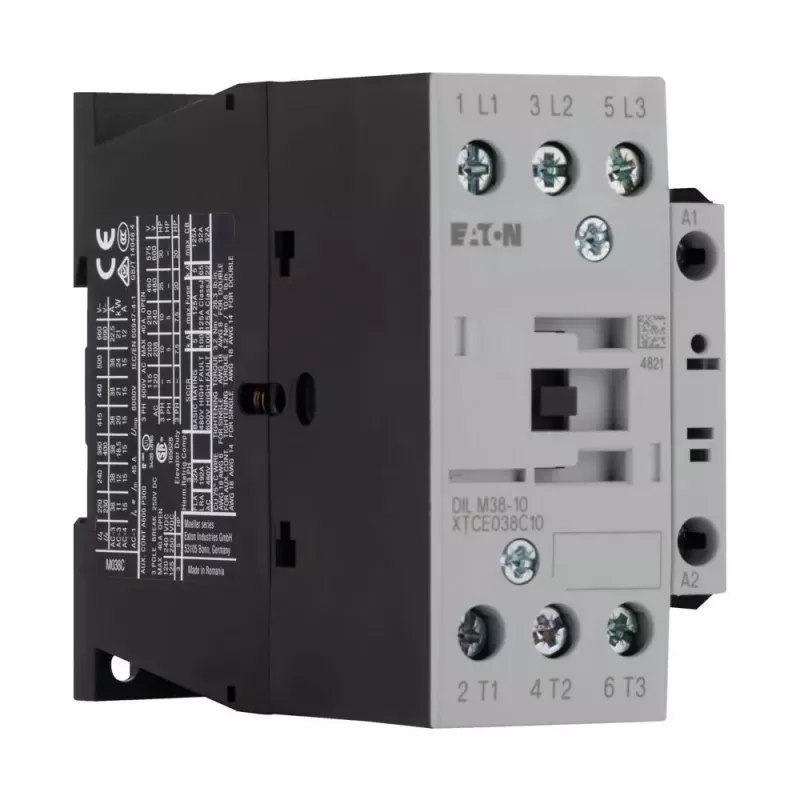

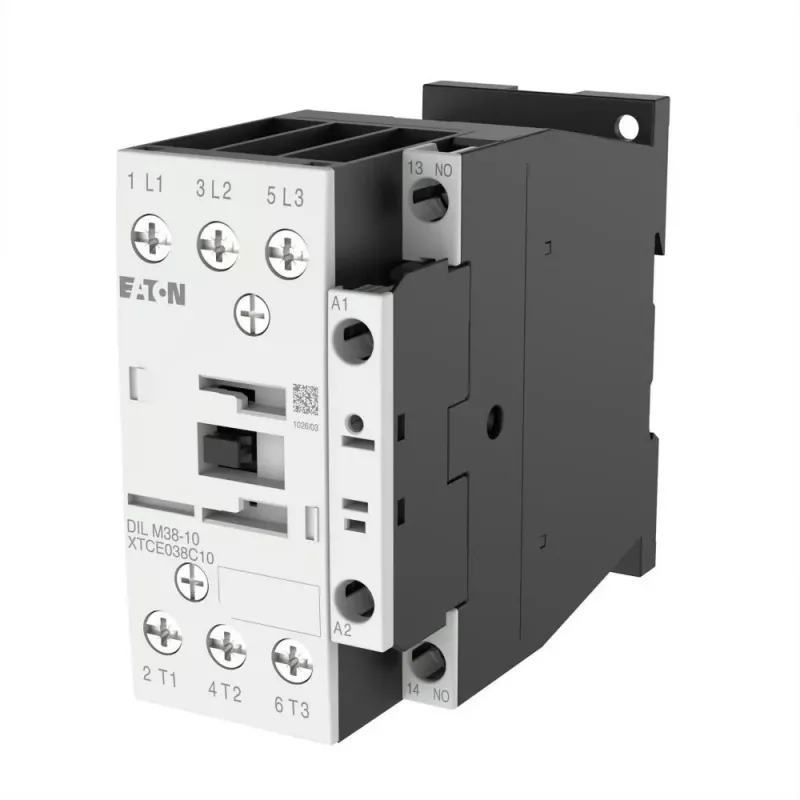

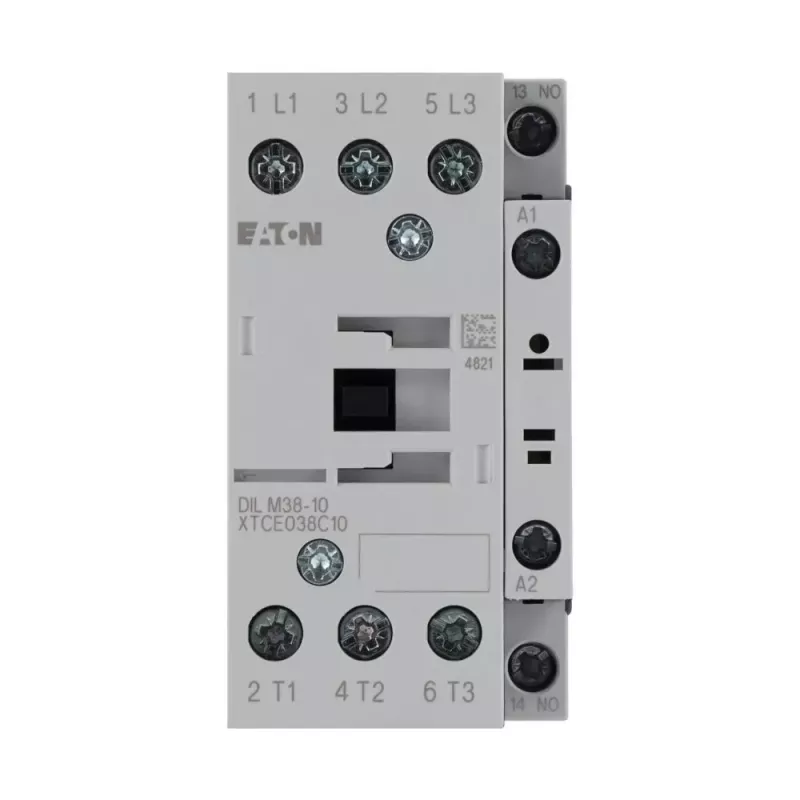

Eaton DILM38-10(RDC24) contactor de potencia 3 polos, 38 A AC-3, bobina 24 V DC, 1 contacto auxiliar NA 112442

With a rated operational current of 38 A at AC-3 (400 V) and a control circuit voltage of 24 V DC, the Eaton DILM38-10(RDC24) power contactor is built for reliable switching of three-phase motors up to 18.5 kW. Its 3-pole main contact configuration (3 NO) and screw terminals ensure secure connections in industrial control panels.

Overview

The DILM38-10(RDC24) is a 3-pole power contactor designed for DIN rail or screw mounting. It features a 24 V DC coil and one normally open auxiliary contact, making it suitable for motor control and other switching applications. The contactor has a rated operational voltage of 690 V AC and a rated insulation voltage of 690 V.

What stands out

• High electrical durability of 1.5 million operations (AC-3)
• Mechanical durability of 10 million operations
• Wide operating temperature range from -25 to +60 °C
• Compact dimensions: 56 mm width, 85 mm height

Technical details

• Rated operational current (AC-3, 400 V): 38 A
• Rated operational current (AC-1, 690 V): 55 A
• Rated operational voltage: 690 V AC
• Control circuit voltage: 24 V DC
• Auxiliary contacts: 1 NO
• Rated power (AC-3, 400 V): 18.5 kW
• Mounting: DIN rail / screw
• Degree of protection: IP00
• Terminal type: screw terminals
• Number of poles: 3
• Main contact configuration: 3 NO
• Actuation current type: DC

Our verdict

A robust and reliable power contactor for demanding industrial environments, offering high switching capacity and long service life.
