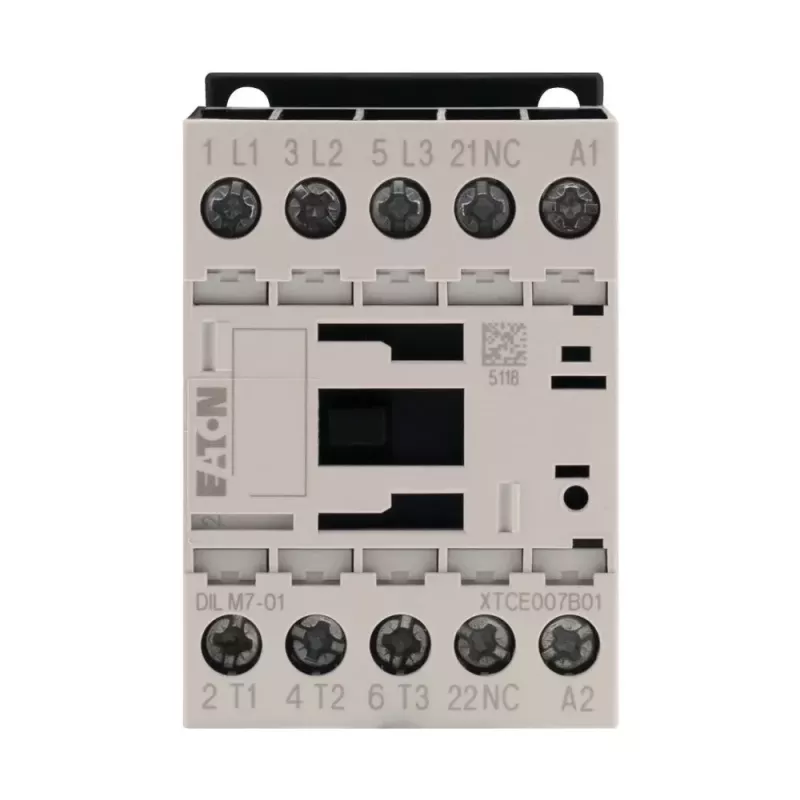

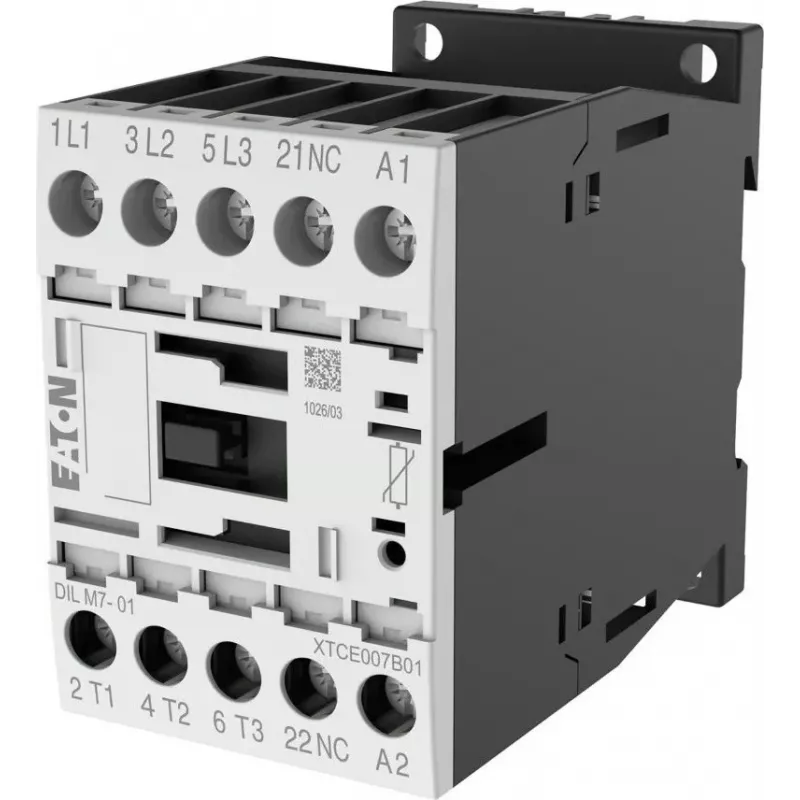

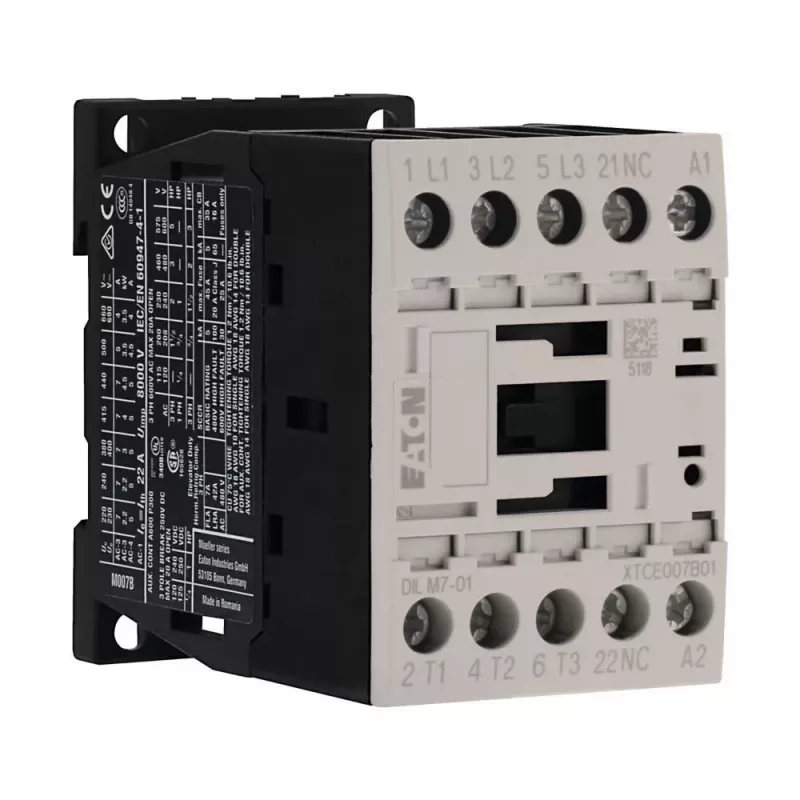

Eaton DILM7-01 contactor de potencia, bobina 24 V AC, 3 polos, 7 A, 1 contacto auxiliar NC 276572

Industrial switching of three-phase motors and resistive loads demands a contactor that combines compact dimensions with dependable performance. The Eaton DILM7-01 power contactor answers this need with a 3-pole main circuit rated for 7 A at AC-3 (400 V) and a 24 V AC 50 Hz coil, making it suitable for motor starting and control applications up to 3 kW.

Who is it for

Panel builders, machine OEMs, and maintenance engineers who require a reliable, DIN-rail mountable contactor for small motors, heating circuits, or auxiliary switching in industrial control systems.

Main features

• 3-pole main contacts with 1 NC auxiliary contact
• Control coil: 24 V AC, 50 Hz
• Rated operational current: 7 A at AC-3, 400 V (3 kW motor power)
• Rated operational current: 22 A at AC-1, 400 V for resistive loads
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Screw terminals for secure wiring
• DIN rail or screw mounting
• Operating temperature range: -25 °C to +60 °C
• Mechanical life: 10 million operations; electrical life: 1.5 million operations (AC-3)

Specifications

• Number of poles: 3
• Auxiliary contacts: 1 NC
• Control circuit voltage: 24 V AC
• Control circuit frequency: 50 Hz
• Rated operational current (AC-3, 400 V): 7 A
• Rated operational power (AC-3, 400 V): 3 kW
• Rated operational current (AC-1, 400 V): 22 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Operating temperature: -25 °C to +60 °C
• Mechanical durability: 10,000,000 cycles
• Electrical durability: 1,500,000 cycles

Tips

Verify coil voltage compatibility before installation. For motor loads, ensure the contactor's AC-3 rating matches the motor's full-load current. Use appropriate wire sizes and torque settings on screw terminals to maintain reliable connections.
