Eaton T3-3-8342/I2/SVB interruptor principal de 6 polos, 32 A, rojo/amarillo 207208

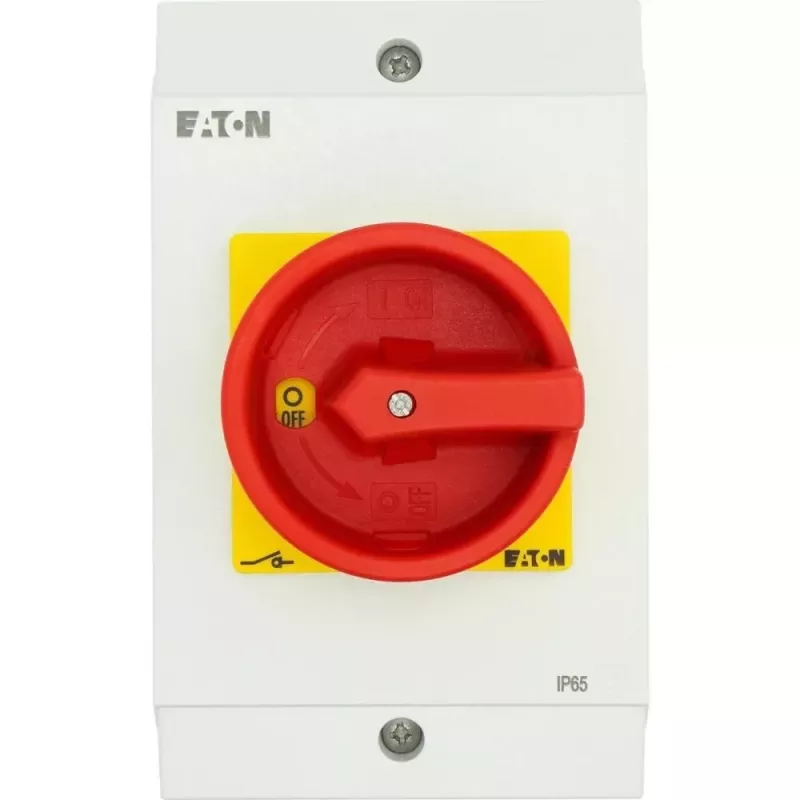

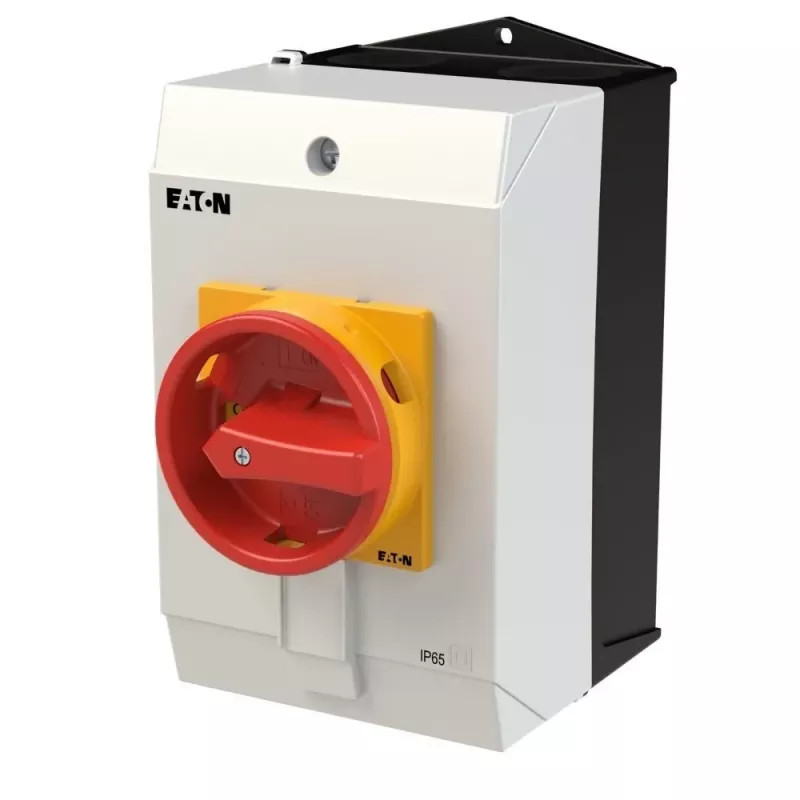

Industrial electricians and panel builders use the Eaton T3-3-8342/I2/SVB as a main disconnect switch in control cabinets and machine power circuits. This 6-pole switch handles rated operational currents up to 32 A and voltages up to 690 V AC, with a robust ON-OFF switching function and a 90° switching angle. The red handle and yellow front plate provide clear visual status indication.

Key specifications

• Switch type: Main switch / disconnect switch
• Number of poles: 6
• Rated operational current: 32 A
• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated short-circuit withstand current: 0.64 kA (1s)
• Rated conditional short-circuit current: 50 kA
• Switching function: ON-OFF (I-0)
• Number of switching positions: 2
• Switching angle: 90°
• Mounting type: Surface mounting (enclosed)
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Handle colour: Red
• Front plate colour: Yellow
• Terminal type: Screw terminals
• Rated power (AC-23A, 400V): 15 kW
• Rated power (AC-21A, 400V): 15 kW
• Ambient operating temperature: -25 to +50 °C

Why choose it

The enclosed construction and IP65 front protection suit demanding industrial environments. Six poles allow switching of multiple circuits or phases simultaneously, while the high short-circuit withstand rating ensures reliable operation under fault conditions.

Ideal use cases

• Main disconnect for industrial control panels
• Machine power isolation in manufacturing
• Motor circuit switching up to 15 kW
• HVAC and pump control systems

Good to know

The switch complies with IEC/EN 60947 and VDE 0660 standards. Screw terminals provide secure conductor connections. The red handle and yellow front plate offer high visibility for safety.
