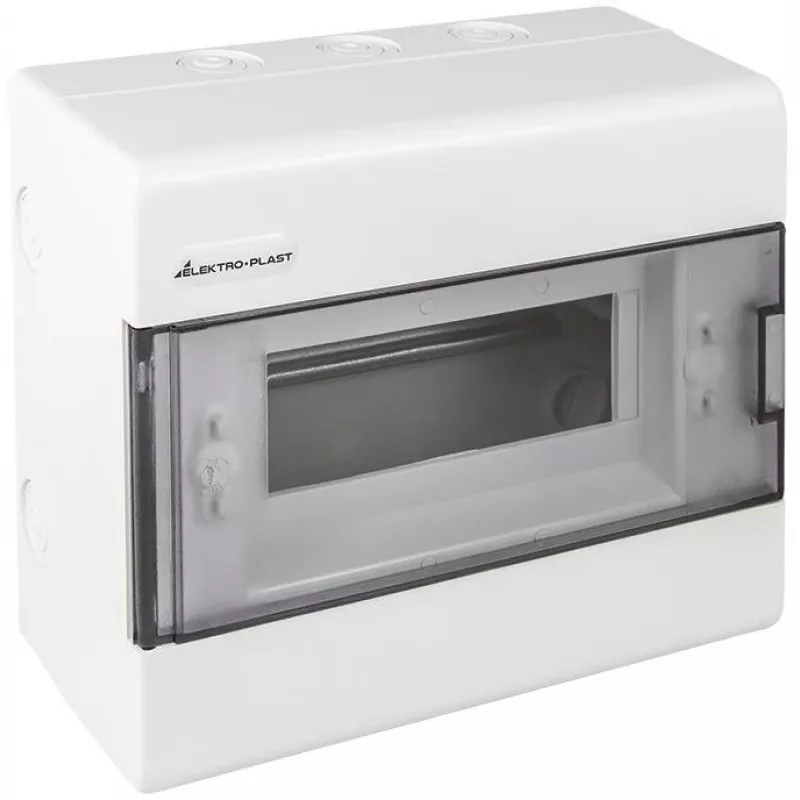

ELEKTRO-PLAST OPATÓWEK SRn-8 Cuadro modular 1x8 montaje en superficie (N+PE) IP40

The ELEKTRO-PLAST OPATÓWEK SRn-8 is a high-quality modular distribution board designed for surface mounting. It accommodates up to 8 modules in a single row, making it ideal for residential, commercial, and light industrial applications. The enclosure is made of durable ABS plastic in white (RAL 9003) and features a transparent smoked door for easy inspection. It comes pre-equipped with neutral (N) and protective earth (PE) terminals, ensuring safe and reliable electrical distribution.

Advantages

This distribution board offers robust construction with an IP40 rating, protecting against solid objects larger than 1mm. The IK07 impact resistance ensures durability in demanding environments. The included 35mm DIN rail simplifies installation of modular devices, while pre-punched knockouts allow flexible cable entry. Compliance with PN-EN 60670-24 and PN-EN 62208 standards guarantees safety and performance.

Suitable for

• Indoor electrical distribution in residential buildings
• Commercial spaces such as offices and retail stores
• Light industrial facilities requiring reliable power distribution

Key specifications

• Enclosure Type: Modular Distribution Board
• Mounting Type: Surface-mounted
• Number of Modules: 8
• Number of Rows: 1
• IP Rating: IP40
• Material: ABS Plastic
• Color: White (RAL 9003)
• Door Type: Transparent, Smoked
• Included Terminals: Neutral (N) and Protective Earth (PE)
• Rated Insulation Voltage: 400V AC
• Rated Current: Up to 63A
• Glow Wire Test: 650°C
• Impact Resistance: IK07
• Operating Temperature: -25°C to +60°C
• DIN Rail: Standard 35mm, included
• Cable Entry: Pre-punched knockouts
• Standards Compliance: PN-EN 60670-24, PN-EN 62208

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is designed for indoor use only and should be installed in a dry, ventilated area. Always adhere to local electrical codes and regulations.
