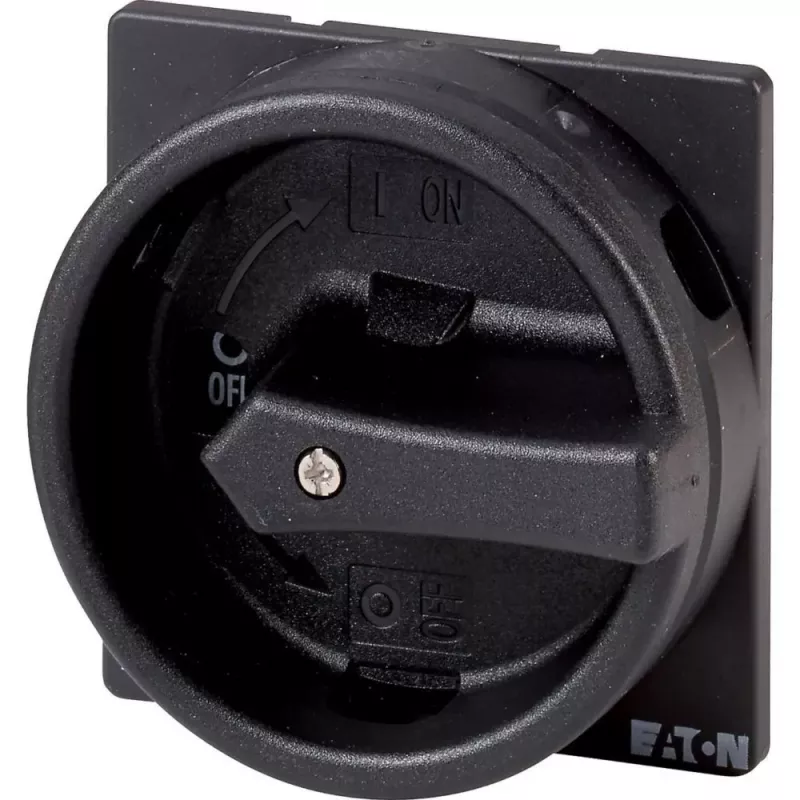

Empuñadura giratoria Eaton SVB con función de candado para interruptores principales P1/P3, negra (062491)

When a main switch or disconnector is installed behind a panel or door, operating it safely and securely becomes a challenge. The Eaton SVB rotary handle solves this by extending control to the front of the enclosure, allowing operators to switch the device on and off without opening the panel. Its integrated padlock feature enables lockout/tagout in the OFF position, preventing accidental re-energization during maintenance.

Who is it for

This handle is intended for electrical panel builders, maintenance technicians, and industrial facility managers who need a reliable, lockable switching solution for Eaton P1 and P3 series main switches. It is suitable for use in distribution boards, motor control centers, and machine control panels where safety and compliance with IEC/EN 60947 are required.

Main features

• Direct rotary operation for Eaton P1 and P3 main switches
• Padlock capability: accepts up to 3 padlocks in the OFF (0) position
• Front panel or door mounting with IP65 protection when installed
• Ergonomic black handle made of high-quality insulating plastic
• Dust-tight and jet-proof construction for harsh environments
• Complies with IEC/EN 60947 standards

Specifications

• Brand: Eaton
• Model: SVB-sw-P3
• Manufacturer Part Number: 062491
• EAN: 4015080624912
• Product type: Rotary handle
• Application: Main switch, disconnector, load break switch accessory
• Compatibility: Eaton P1 and P3 series main switches
• Padlock capability: Yes (max. 3 padlocks)
• Locking position: OFF (0) position
• Colour: Black
• Housing material: High-quality insulating plastic
• Mounting type: Front panel / door mounting
• Protection class (front): IP65
• Operating mechanism: Direct
• Standard compliance: IEC/EN 60947
• Environmental resistance: Dust-tight, jet-proof

Tips

For optimal safety, always verify that the handle is fully in the OFF position before applying padlocks. Use padlocks with shackle diameters up to 8 mm to ensure they fit the locking holes. When mounting, ensure the panel cutout matches the handle's dimensions and that the shaft is properly aligned with the switch to avoid excessive force during operation.
