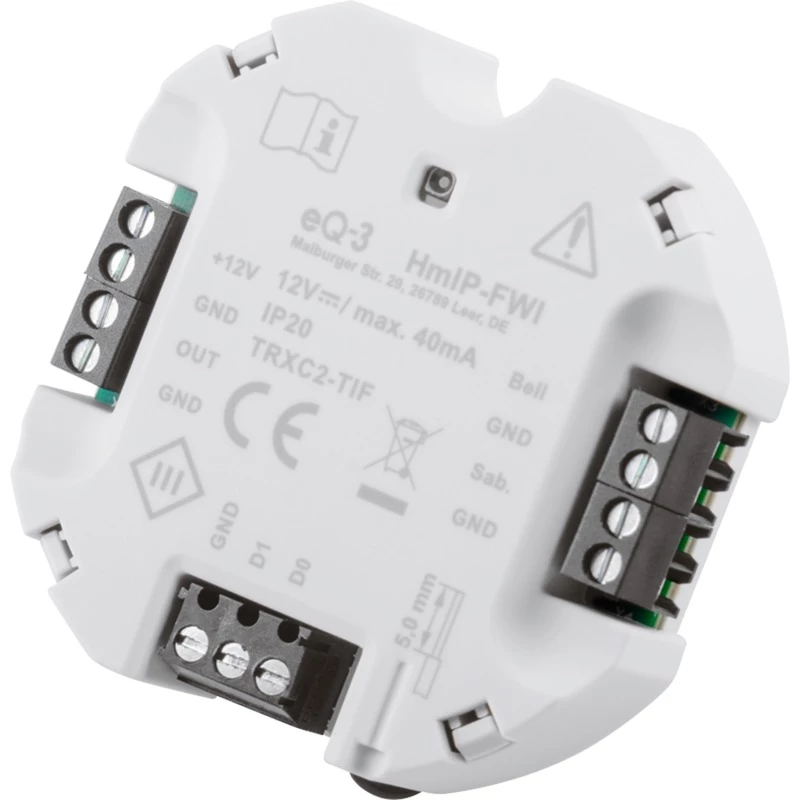

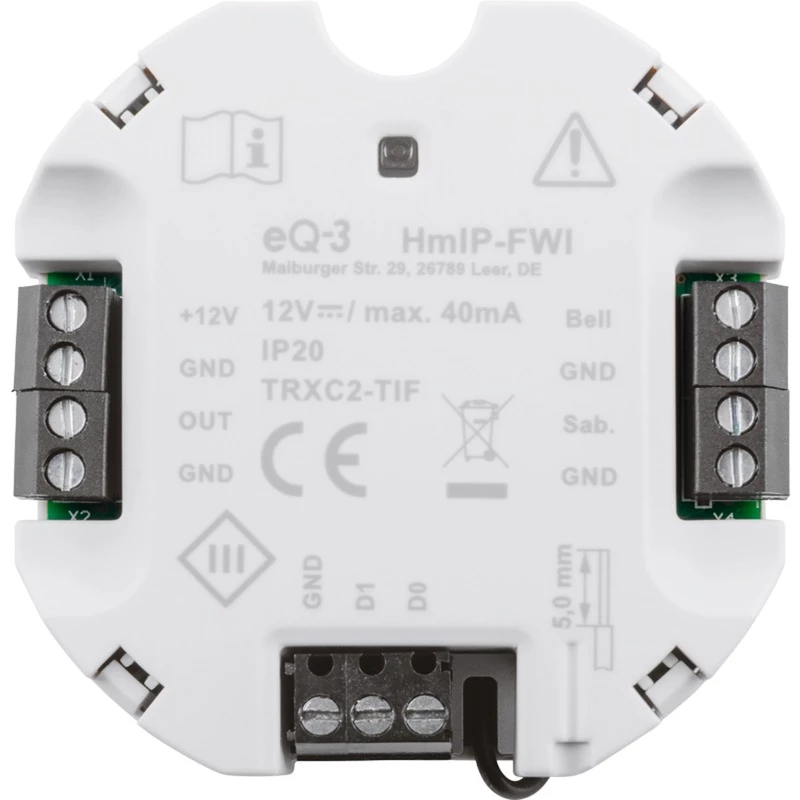

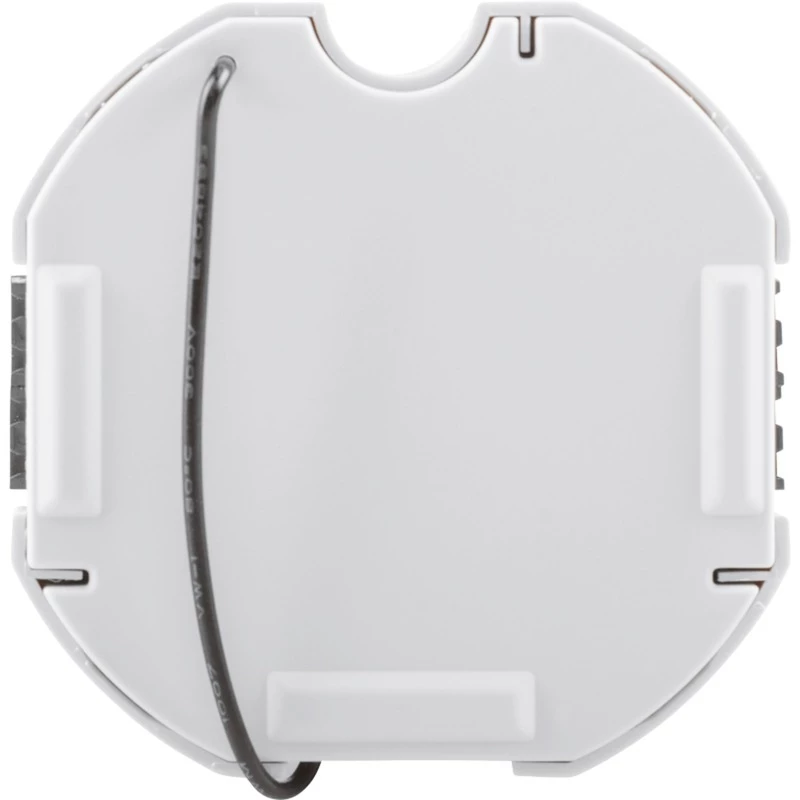

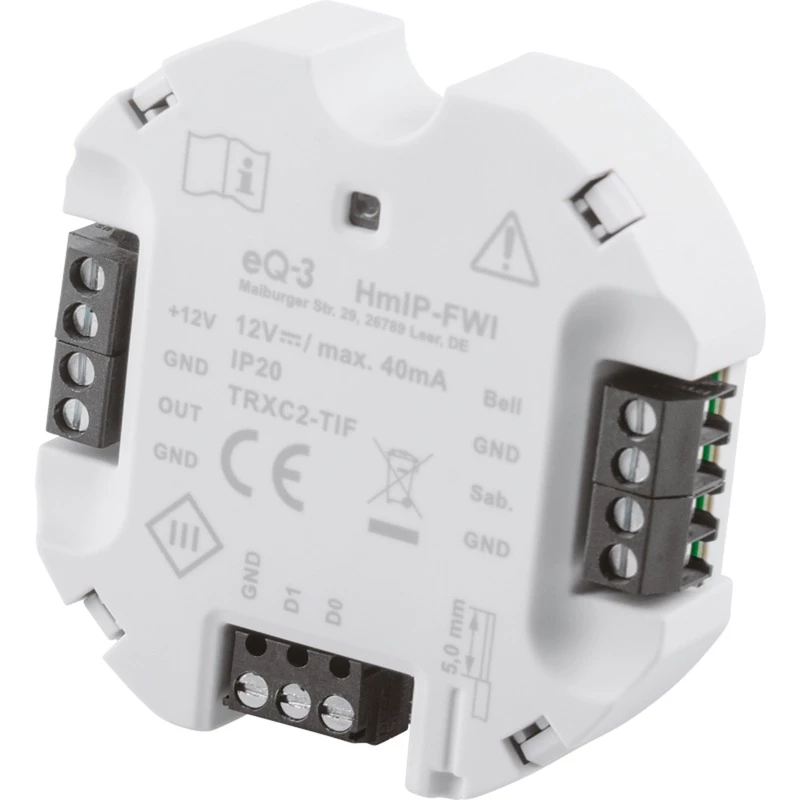

Homematic IP HMIP-FWI receptor Smart Home 868 MHz con cable blanco

The Homematic IP HMIP-FWI Smart Home Receiver 868 MHz Wired White provides a compact wired interface to integrate Wiegand-compatible access devices into a Homematic IP smart home system. Designed for installation in standard flush-mounted boxes, the receiver supports connection to code locks, fingerprint sensors, card and transponder readers and enables centralized control via the Homematic IP app. Operating on 868 MHz and requiring a 5–12 V input, it allows automation scenarios such as unlocking doors while switching lights or disabling alarm modes when an authorised Wiegand device is used.

Advantages

The Wiegand interface enables secure and convenient access control by linking external Wiegand-enabled devices with Homematic IP. It supports multifunctional control using different codes and can be combined with other Homematic IP devices to create automatic sequences. The compact design permits easy installation in common flush-mounted boxes and the receiver also provides additional connections for a bell push button, sabotage contact and an LED or bell.

Suitable for

• Integrating code locks with Homematic IP
• Connecting fingerprint sensors to the smart home system
• Using card or transponder readers for door access
• Creating automated actions (e.g., turn on lights when door opens)

Key specifications

• Product: Homematic IP HMIP-FWI Smart Home Receiver 868 MHz Wired White
• Frequency: 868 MHz
• Input voltage: 5–12 V
• Current: 0.2 A
• Dimensions: 52 mm x 14 mm x 52 mm
• Connections: Wiegand interface; bell push button; sabotage contact; LED/bell output
• MPN: 155182A0
• EAN: 4047976551828

How to use

Install the receiver in a standard flush-mounted box and wire it to the chosen Wiegand-compatible device following local electrical regulations. Configure the Wiegand interface and assign devices through the Homematic IP app. Once integrated, assign codes or credentials on the external reader and define the desired automation rules in the app to control doors, lights or alarm states based on access events.

Recommendations

For reliable operation, use a stable 5–12 V DC power supply and mount the receiver in a dry, protected location inside a flush-mounted box. Test access configurations and linked automations after installation and ensure compatible Wiegand device wiring. For safety-related integrations (e.g., alarm systems), follow applicable local standards and consult a qualified installer if needed.
