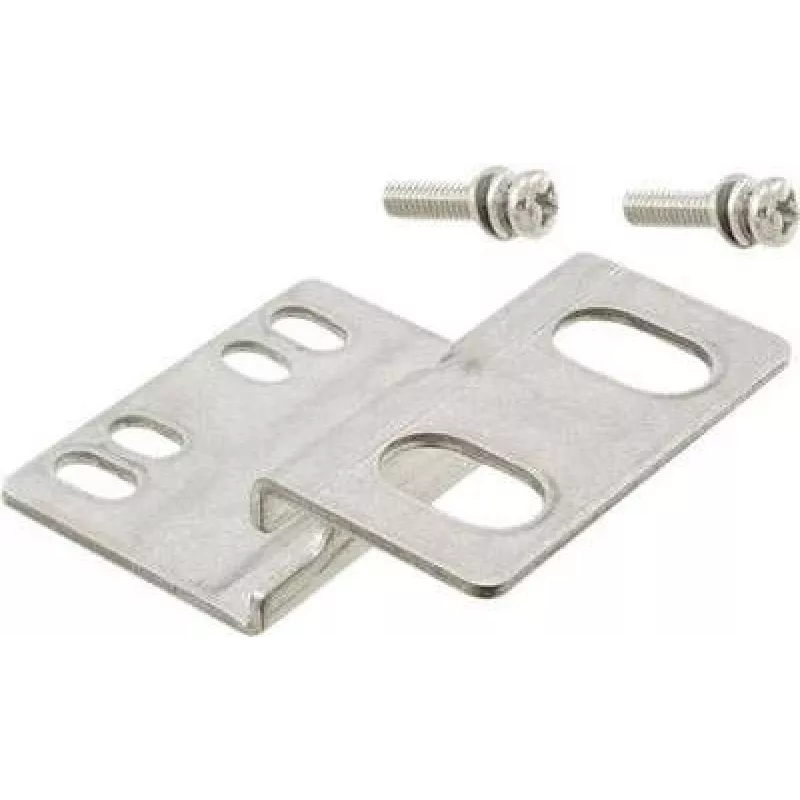

Escuadra de montaje Panasonic MSCX25 — escuadra de montaje para serie MSCX

The Panasonic MSCX25 mounting bracket is a metal accessory designed for secure attachment of devices within the MSCX product series. It provides a stable connection point for installations where the MSCX25 interface is specified, supporting accurate alignment and reliable fastening in industrial and equipment enclosure environments.

Advantages

This mounting bracket is made from durable metal for long-term mechanical stability. Its form factor is matched to MSCX-series devices to ensure correct positioning and compatibility. The bracket simplifies installation by providing a dedicated attachment point, reducing assembly time and the need for custom fabrication. Corrosion-resistant finishing and precision-drilled mounting holes contribute to consistent installation quality and repeatable results.

Suitable for

• Industrial control panel mounting
• Fastening electronic modules inside enclosures
• Securing equipment to racks or subframes
• Replacement or retrofit of existing MSCX-series installations

Key specifications

• Material: metal construction for structural support
• Compatibility: designed for use with MSCX-series devices
• Finish: corrosion-resistant coating for enhanced durability
• Mounting: precision-drilled holes for mechanical fastening
• Application environment: suitable for industrial and enclosure installations

How to use

Position the bracket so that its holes align with the mounting points on the MSCX-series device and the target surface. Use appropriate fasteners (screws, bolts, or rivets) sized to match the bracket holes and the installation substrate. Tighten fasteners to secure the bracket without deforming the bracket or the connected device. Verify alignment and mechanical stability before powering or operating attached equipment.

Recommendations

Choose stainless or appropriately rated fasteners for corrosive or outdoor environments, and follow equipment manufacturer torque specifications where provided. Inspect mounting points periodically for loosening or corrosion and replace the bracket if deformation or excessive wear is observed.
