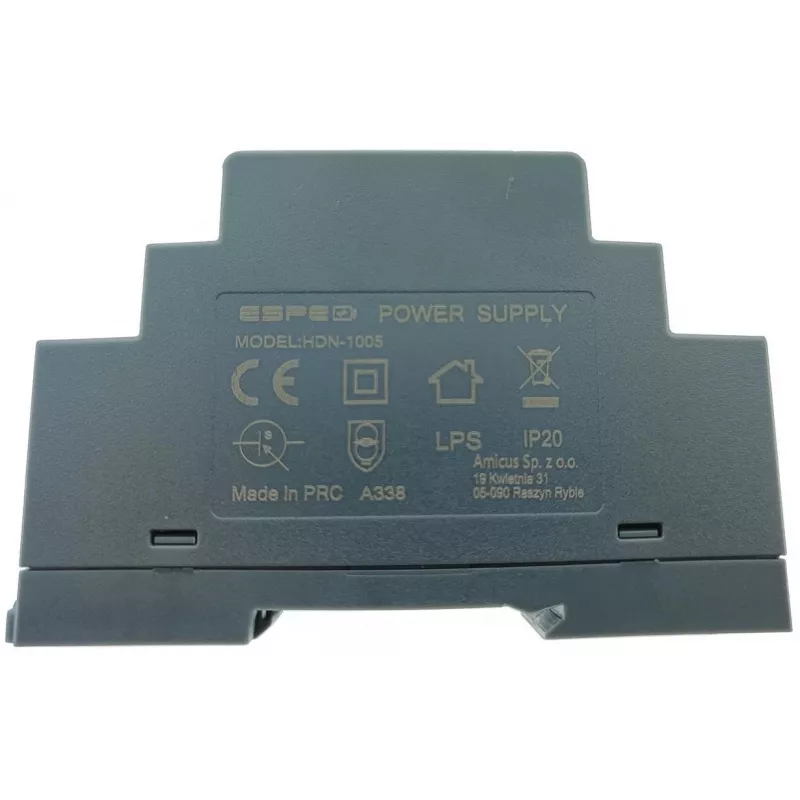

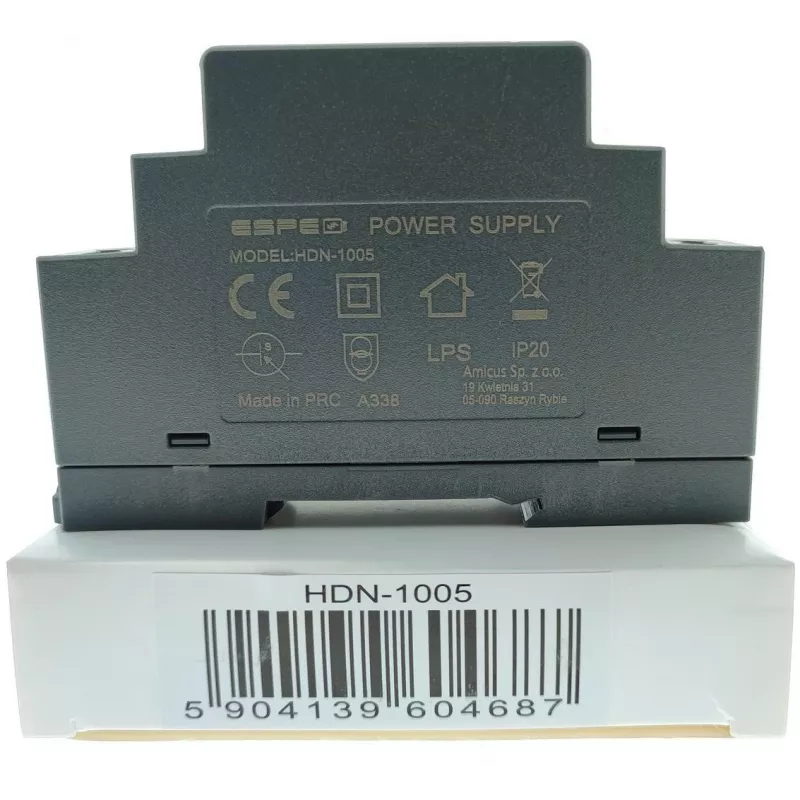

ESPE HDN-1005 Fuente de alimentación para carril DIN 5V/10W/2A

The ESPE HDN-1005 is a high-performance DIN rail power supply designed for industrial automation and control systems. It delivers a stable 5V DC output with 2A current and 10W power, ensuring reliable operation for sensitive electronic devices. With a wide input voltage range of 85-264V AC or 120-370V DC, it adapts to various power environments. The unit features comprehensive protection mechanisms including overload, over voltage, and short circuit protection with auto-recovery, enhancing system safety and longevity.

Advantages

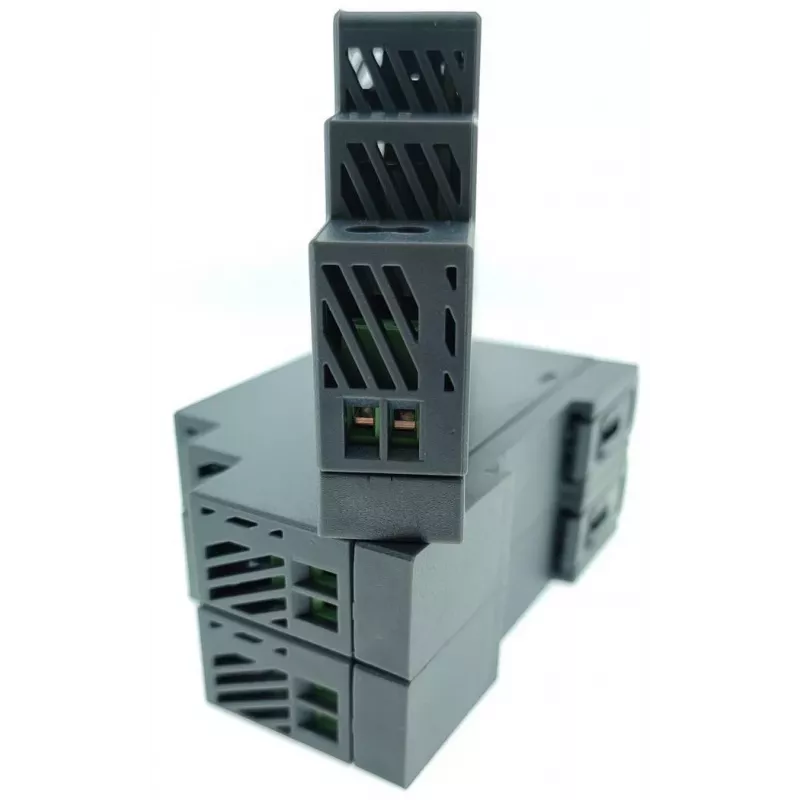

Compact design for space-saving installation on TS-35 DIN rails. High efficiency >78% reduces energy waste and heat generation. Built-in EMI filter meets EN55022 Class B standards for low electromagnetic interference. Green LED indicator for quick power status verification. Robust plastic housing ensures durability and electrical insulation.

Suitable for

• Industrial control panels
• Building automation systems
• PLC and sensor power supply
• Telecommunication equipment
• Security and access control systems

Key specifications

• Output: 5V DC, 2A, 10W
• Input: 85-264V AC / 120-370V DC, 47-63Hz
• Efficiency: >78%
• Ripple & Noise: <100mVp-p
• Protection: Overload, Over Voltage, Short Circuit (auto-recovery)
• Isolation: 3000V AC Input to Output
• Operating Temperature: -20°C to +50°C

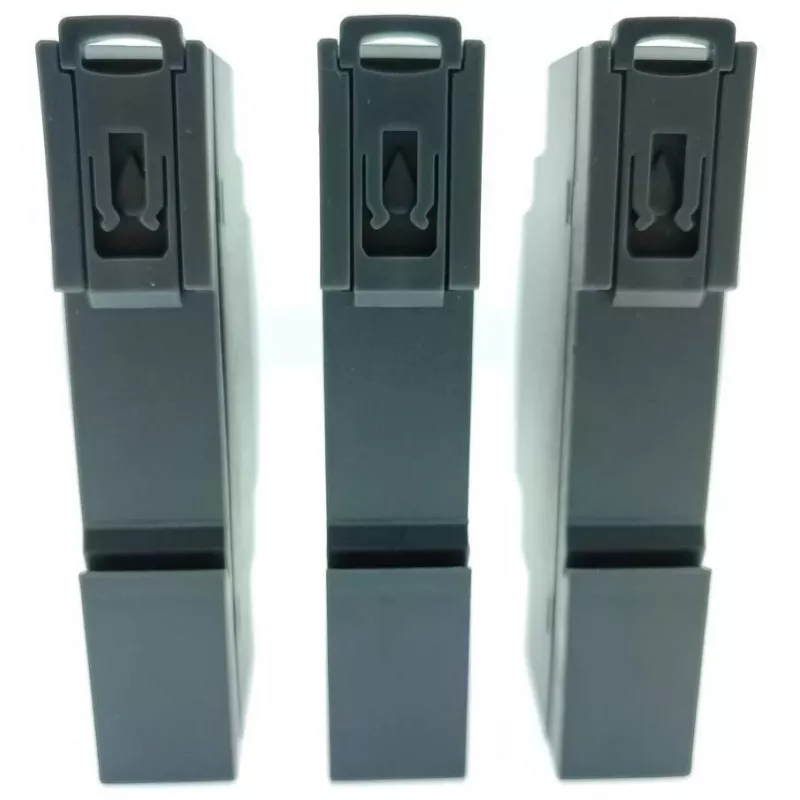

• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• MTBF: >300,000 hours
• Safety: EN60950-1
• EMC: EN55022 Class B
• Housing: Plastic

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated load. Use appropriate wire gauges for input and output connections. This power supply is ideal for applications requiring a reliable 5V DC source with industrial-grade protection.
