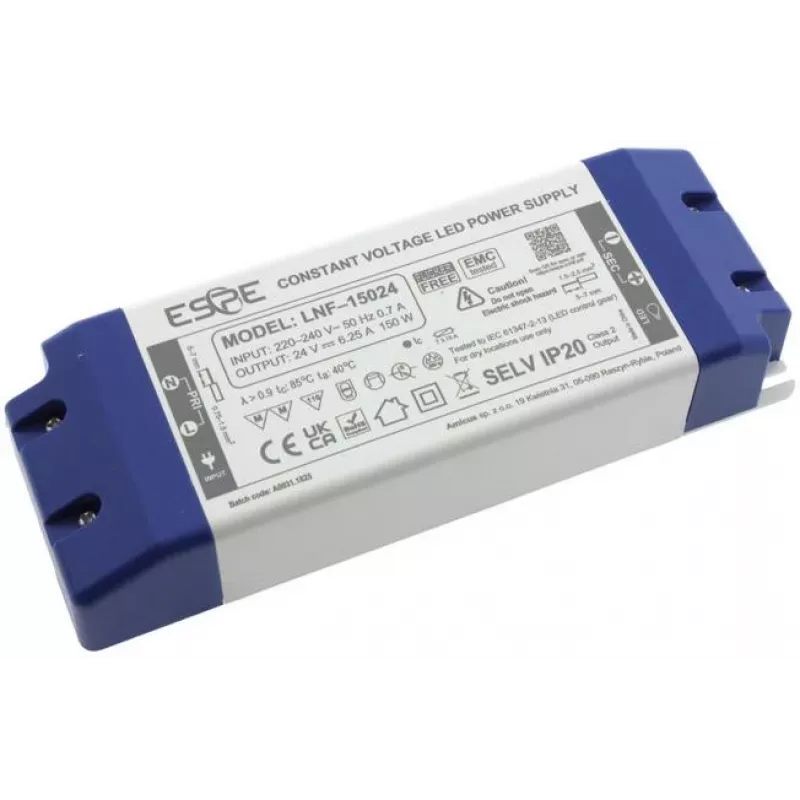

ESPE LNF-15024 Fuente de alimentación conmutada LED 24V 150W 6,25A IP20

The ESPE LNF-15024 is a high-performance LED switching power supply designed for indoor LED lighting applications. It delivers a stable 24V DC output with 150W power and 6.25A current, ensuring reliable operation for various LED installations. With an IP20 rating, it is suitable for dry indoor environments. The power supply features natural convection cooling, making it silent and maintenance-free. It includes comprehensive protection against overload, short circuit, over voltage, and over temperature, ensuring long-lasting performance and safety.

Advantages

High efficiency (>85%) reduces energy waste and heat generation. Compact metal housing with perforations for effective heat dissipation. Easy installation with screw terminals for input and output connections. Reliable constant voltage output for consistent LED brightness. Built-in protections safeguard both the power supply and connected devices.

Suitable for

• Indoor LED strip lighting
• LED panel lights
• LED signage and displays
• Architectural lighting
• Commercial and residential LED installations

Key specifications

• Product Type: LED Switching Power Supply
• Output Voltage: 24V DC
• Output Power: 150W
• Output Current: 6.25A
• Input Voltage Range: 170-264V AC
• Input Frequency: 50/60 Hz
• IP Rating: IP20
• Efficiency: >85%
• Protection Features: Overload, Short Circuit, Over Voltage, Over Temperature
• Cooling Type: Natural Convection
• Housing Material: Metal (Perforated)
• Operating Temperature Range: -20°C to +50°C
• Certifications: CE, RoHS
• Output Type: Constant Voltage (CV)
• Number of Outputs: 1
• Dimming Functionality: No
• Power Factor: >0.5
• Input Connection: Screw Terminals
• Output Connection: Screw Terminals

Recommendations

For optimal performance, ensure proper ventilation around the power supply. Do not exceed the rated output power. Suitable for indoor use only. Always follow local electrical codes during installation.
