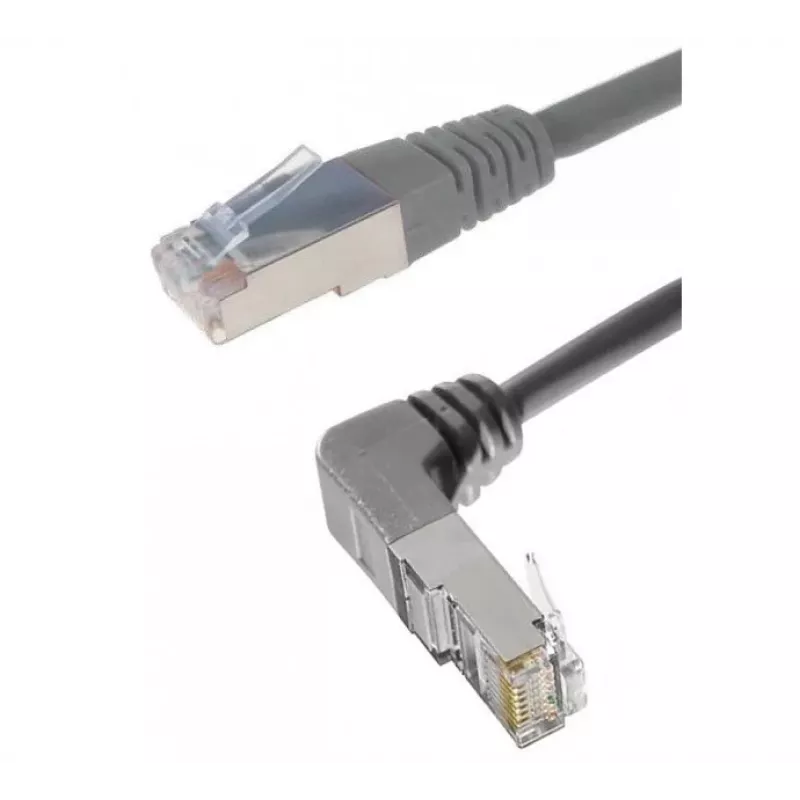

Exertis Connect Cat. 6A S/FTP Cable de conexión, en ángulo, gris, 1,0 m (854303)

This Cat. 6A patch cable stands out with its one-sided angled connector, making it easier to route in tight spaces behind desks or patch panels. The S/FTP shielding with individually foiled pairs and an overall braid provides excellent protection against crosstalk and EMI, ensuring reliable 10 Gigabit Ethernet performance up to 500 MHz. The grey LSZH jacket is ideal for public buildings where low smoke and zero halogen are required. Gold-plated contacts and a snagless boot add durability and ease of use.

Highlights

• Cat. 6A performance up to 10 Gbps and 500 MHz
• S/FTP shielding: pairs in metal foil plus overall braid
• One angled RJ45 connector for tight spaces
• LSZH jacket: low smoke, zero halogen
• Gold-plated contacts and snagless boot

In daily use

The angled connector reduces strain on the cable when plugged into equipment near walls or in dense patch fields. Stranded 26 AWG conductors keep the cable flexible for frequent moves, while the snagless boot prevents the latch from catching on other cables. It supports PoE, PoE+, and 4PPoE, so you can power devices like IP cameras or access points without a separate power supply.

Full specifications

• Cable type: Patch cable
• Ethernet category: Cat. 6A
• Shielding: S/FTP (PiMF)
• Length: 1.0 m
• Colour: Grey
• Connector 1: RJ45 male, straight
• Connector 2: RJ45 male, angled (90°)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Wiring scheme: T568B
• Connector plating: Gold
• Boot type: Snagless

Final note

A dependable, high-performance patch cable with the convenience of an angled connector for challenging installations.
