Extensor HDMI HDMI-EX-4 4K@30Hz HDBaseT sobre Cat5e/6/7 60m

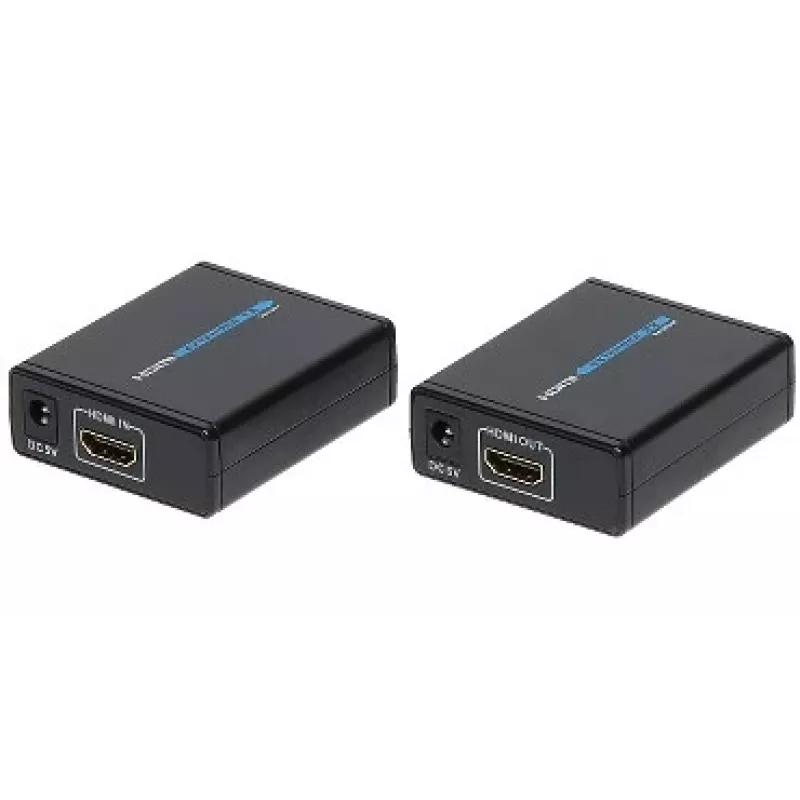

The HDMI Extender HDMI-EX-4 is a professional-grade solution for extending HDMI signals over long distances using HDBaseT technology. It supports 4K@30Hz up to 30 meters and 1080p@60Hz up to 60 meters via a single Cat5e/6/7 cable, making it ideal for home theaters, conference rooms, and digital signage.

Advantages

This extender offers plug-and-play installation with no software required, ensuring quick setup. It supports IR pass-through for remote control extension and EDID pass-through for seamless compatibility with various displays. The aluminum alloy housing provides durability and effective heat dissipation.

Suitable for

• Home theater systems requiring long HDMI runs
• Conference rooms and classrooms for AV distribution
• Digital signage and retail displays
• Professional AV installations

Key specifications

• Transmission Technology: HDBaseT over Cat5e/6/7
• Max Resolution: 4K@30Hz (30m), 1080p@60Hz (60m)
• HDMI Version: 1.4
• HDCP Version: 1.4
• Video Bandwidth: 10.2 Gbps
• Color Depth: 8-bit, 10-bit, 12-bit
• Audio Formats: LPCM, DTS-HD, Dolby TrueHD, Dolby Digital, DTS
• IR Pass-through: Yes (20-60KHz)
• EDID Pass-through: Yes
• Latency: < 5ms
• Power Supply: DC 5V/1A (x2, for Sender and Receiver)
• Housing Material: Aluminum Alloy
• Connectors: 1x HDMI Type A Female (Sender & Receiver), 1x RJ45 Female (Sender & Receiver)
• ESD Protection: Human Body Model ±8kV (Air-gap), ±4kV (Contact)
• Operating Temperature: 0°C to 60°C
• Installation: Plug & Play

Recommendations

For optimal performance, use high-quality Cat6 or Cat7 cables. Ensure the power adapters are connected to both the sender and receiver units. This extender is not PoC (Power over Cable) compatible, so both units require power.
