FSP Champ Tower 3K sistema de alimentación ininterrumpida (SAI) doble conversión (online) 3 kVA 2700 W

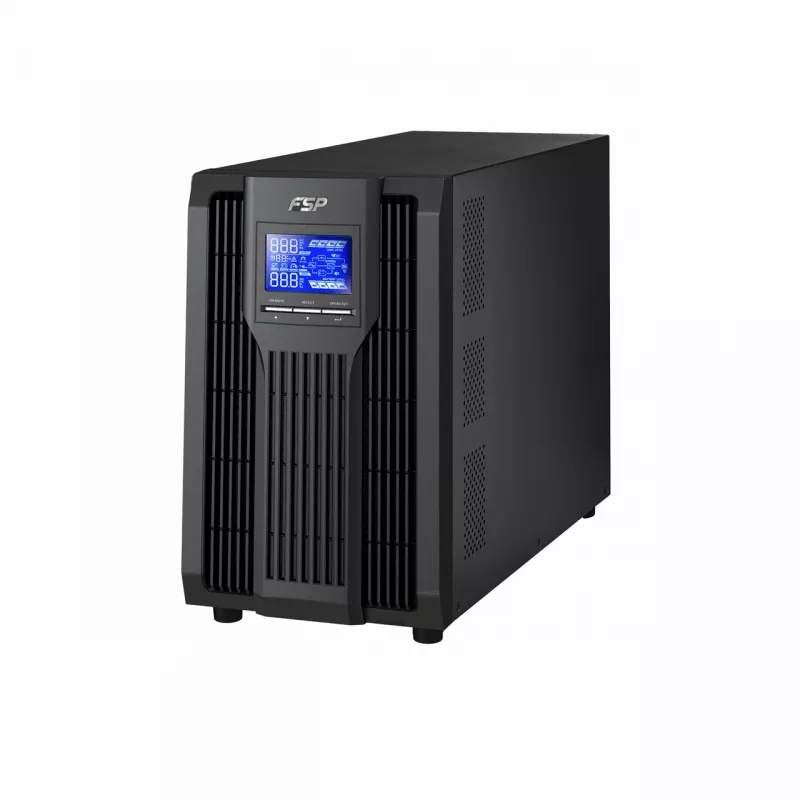

FSP Champ Tower 3K is a double-conversion online UPS delivering 3 kVA (2700 W) output power with a 0.9 power factor. Housed in a compact tower/rackable cabinet and managed by a microprocessor controller, this UPS includes an internal 9 Ah battery and provides approximately 3.5 minutes of backup at full load. Standard connectivity includes USB and RS-232 ports plus an intelligent expansion slot for optional adapters and communication cards.

Advantages

The double-conversion topology ensures continuous, clean AC output and smooth voltage regulation. A 0.9 output power factor increases usable wattage for connected equipment. Built-in USB and RS-232 interfaces simplify monitoring and shutdown procedures, while the intelligent slot allows for protocol converters or relay cards to extend functionality. The compact cabinet supports tower or rack installation to suit different deployment needs.

Suitable for

• Small servers and network equipment
• Workstations and point-of-sale systems
• Network switches, routers and communication devices
• Critical single-rack or small office installations

Key specifications

• Model: FSP Champ Tower 3K (MPN: PPF24A1823, EAN: 4713224529856)
• Output power capacity: 3 kVA / 2700 W
• Topology: Double-conversion online UPS
• Battery: 9 Ah, typical backup ~3.5 minutes at full load

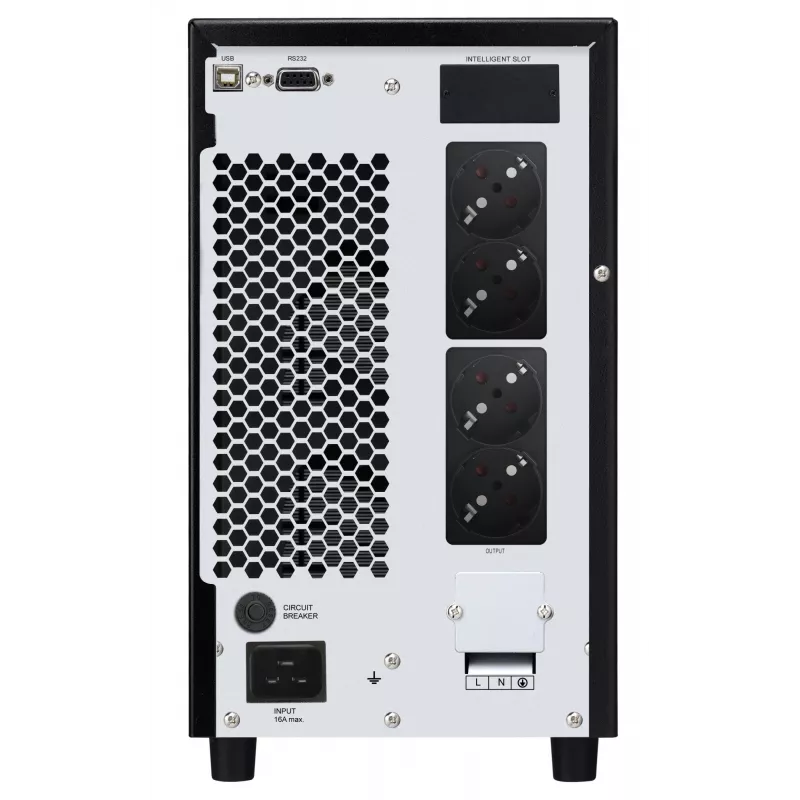

• Interfaces: USB 2.0 (1), RS-232
• Form factor: Tower, rack-mountable
• Colour: Black
• Weight: 27.6 kg

How to use

Install the UPS in a well-ventilated area on a stable surface or mount it in a rack according to the manufacturer’s instructions. Connect the UPS input to a dedicated AC supply, and plug critical devices into the UPS output sockets. Use the microprocessor-controlled front panel to view status and configure basic settings. For safe shutdown and monitoring, connect the UPS to a computer via the USB or RS-232 port and install compatible monitoring software. If needed, fit an optional communication or relay card into the intelligent slot following the accessory manual.

Recommendations

For reliable operation, perform regular battery tests and replace batteries according to the maintenance schedule. Keep adequate ventilation around the unit, avoid exposure to excessive heat or moisture, and ensure connected load does not exceed the 2700 W rating. Use the intelligent slot for network management cards when remote monitoring or integration with building management systems is required.
