Fuente de alimentación Gamber Johnson - Lind 20-60V ISO Straight

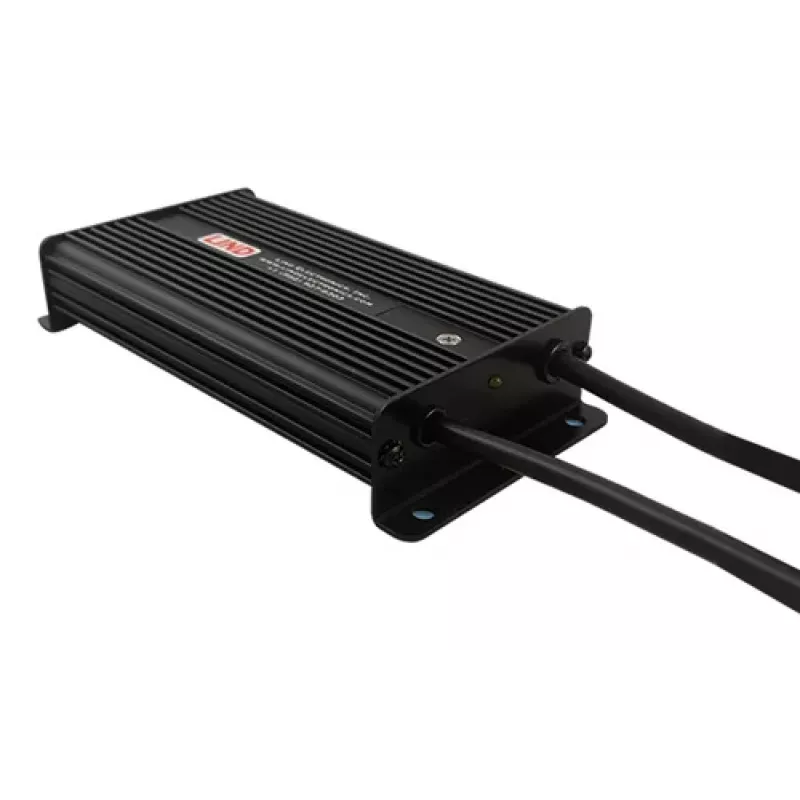

The Gamber Johnson Power Supply - Lind 20-60V ISO Straight is a high-performance DC-DC power adapter designed for demanding mobile and industrial applications. Engineered to convert a wide input voltage range of 20-60V DC to a stable 12V DC output, this power supply delivers up to 10A (120W) of clean, isolated power. With 1500V DC input-to-output isolation, it ensures reliable operation in electrically noisy environments. The straight DC power plug and bare wire input leads offer flexible installation, while integrated mounting flanges simplify secure mounting. Built with an aluminum enclosure and convection cooling, it operates efficiently across a wide temperature range. Certifications include CE, FCC, and E-Mark for vehicle use.

Advantages

Wide input voltage range (20-60V DC) accommodates various vehicle and battery systems. High isolation voltage (1500V DC) protects sensitive equipment from ground loops and transients. Robust protections (overload, short circuit, over voltage, thermal shutdown, reverse polarity) ensure safe operation. Compact, rugged aluminum housing with mounting flanges for easy installation. High efficiency (>85% typical) reduces power loss and heat generation.

Suitable for

• Mobile workstations and laptops in vehicles
• Industrial automation and control systems
• Telecommunications equipment
• Security and surveillance systems
• Any application requiring a stable 12V DC supply from a 20-60V DC source

Key specifications

• Product Type: DC-DC Power Adapter
• Input Voltage: 20-60V DC
• Output Voltage: 12V DC
• Output Current: 10A
• Output Power: 120W
• Isolation: 1500V DC Input to Output
• Efficiency: >85% (Typical)
• Input Connector: Bare Wire Leads (Hardwire)
• Output Connector: Specific DC Power Plug (Straight)
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Protections: Overload, Short Circuit, Over Voltage, Thermal Shutdown, Reverse Polarity
• Ripple & Noise: <100mV p-p
• Standby Current: <50mA
• Enclosure Material: Aluminum
• Cooling Method: Convection
• Mounting: Integrated Mounting Flanges
• Certifications: CE, FCC, E-Mark (Vehicle)

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the output load does not exceed 10A. Use appropriate gauge wiring for the input leads. The power supply is designed for indoor or protected outdoor use; avoid exposure to moisture or extreme temperatures beyond the rated range.
