Fuente de alimentación RAM Mounts RAM-GDS-CHARGE-V10U 10–32 V 0,2 m 136 g

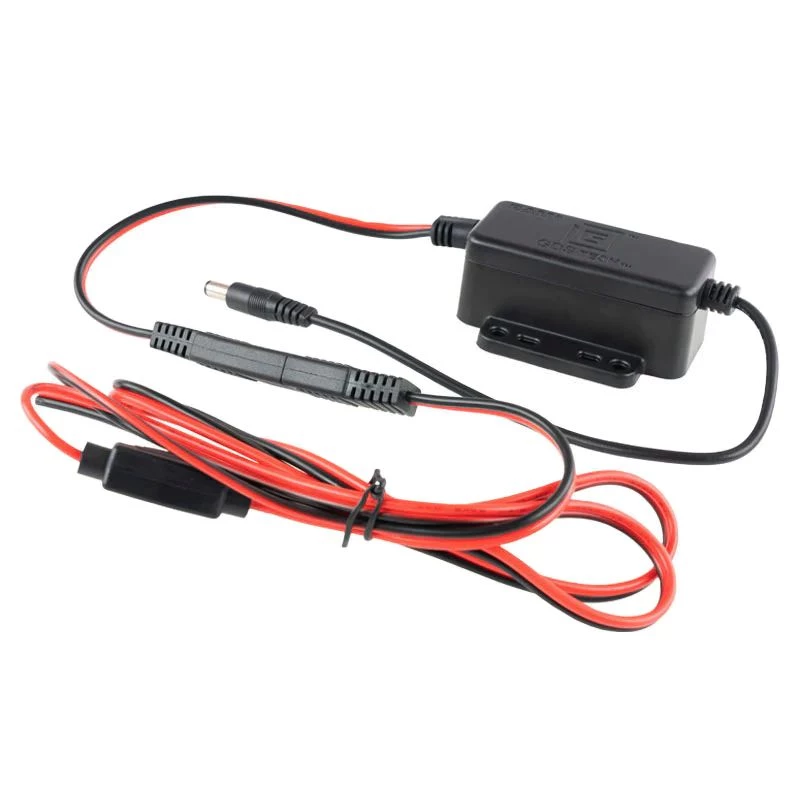

The GDS® Modular Hardwire Charger with 5.5mm male DC cable provides a reliable power source for RAM® and GDS® DC-powered docking stations. Designed for vehicle and indoor installations, the charger accepts a wide input range of 10–32 VDC and includes a short 0.2 m cable for compact setups. Its modular design allows easy replacement or upgrade of charger components without rewiring: simply unplug the power connector and attach the new module.

Advantages

The charger supports a broad input voltage range (10–32 VDC), making it suitable for most vehicle electrical systems as well as low-voltage indoor supplies. Its modular connector design simplifies upgrades and service by eliminating the need to reroute wiring. The compact 0.2 m cable and lightweight construction (approximately 136 g) enable convenient installation in confined spaces.

Suitable for

• Powering RAM® and GDS® DC docking stations
• Vehicle installations (cars, trucks, boats) with 12–24V systems
• Compact indoor installations where a short cable is preferred

Key specifications

• Input voltage: 10–32 VDC
• Output connector: 5.5 mm male DC plug
• Cable length: 0.2 m
• Weight: 136 g (approx.)

How to use

Install the charger by routing the cable to the docking station and connecting the 5.5 mm male DC plug to the device. For vehicle installations, connect the input to an appropriate fused power source within the 10–32 VDC range. To replace or upgrade the charger module, unplug the existing power connector from the docking station and attach the new charger components—no rewiring required.

Recommendations

Use with RAM® or GDS® DC-powered docking stations and ensure the vehicle or power supply voltage remains within the specified 10–32 VDC range. Protect the input with an inline fuse appropriate for the application and avoid routing the cable near high-heat sources or sharp edges.
