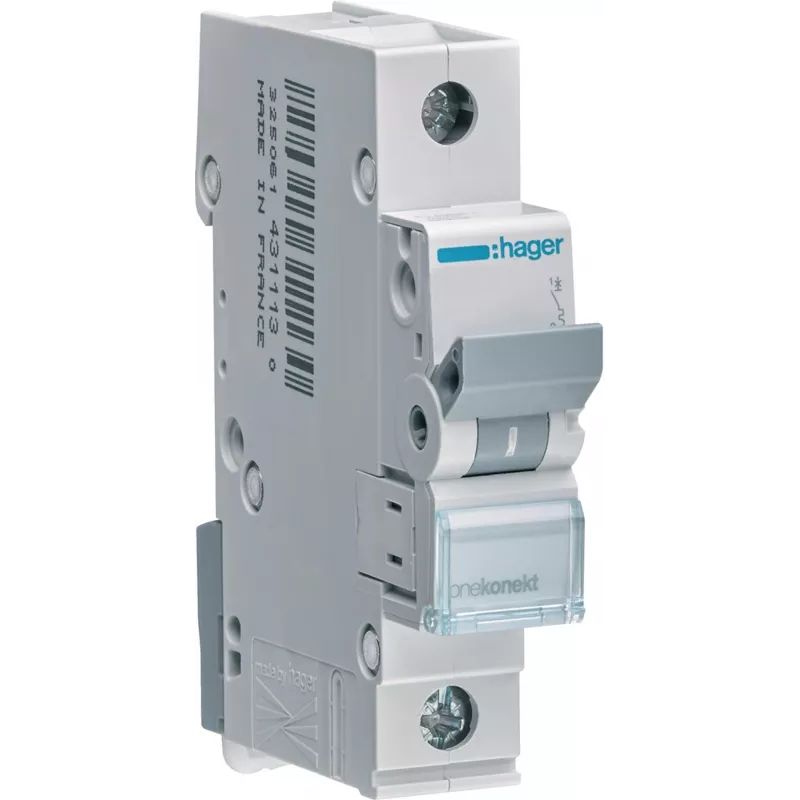

HAGER MCN116E MCB 6kA, curva C, 16A, 1 polo

The HAGER MCN116E is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial electrical installations. With a rated current of 16A and a tripping curve C, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general power outlets. This 1-pole MCB offers a short-circuit breaking capacity of 6kA, ensuring safety under fault conditions.

Advantages

Compact 1-pole design saves space on DIN rail; curve C characteristic prevents nuisance tripping for motor and transformer loads; high breaking capacity of 6kA ensures robust protection; screw terminals for secure and easy wiring; complies with EN 60898-1 for global acceptance.

Suitable for

• Lighting circuits
• General power outlets
• Small motor and transformer protection
• Residential and commercial distribution boards

Key specifications

• Rated current: 16 A
• Number of poles: 1
• Tripping curve: C
• Short-circuit breaking capacity: 6 kA
• Rated voltage (AC): 230/400 V
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal type: Screw terminals
• Terminal capacity (rigid): 1-25 mm²
• Terminal capacity (flexible): 1-16 mm²
• Protection degree: IP20 (terminals), IP40 (front)
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Standard: EN 60898-1
• Pollution degree: 2
• Overvoltage category: III
• Energy limiting class: 3
• Operating temperature: -25 to 60 °C
• Storage temperature: -40 to 80 °C

Recommendations

For optimal protection, always ensure the MCB is installed by a qualified electrician and that the circuit design complies with local regulations. The HAGER MCN116E is a reliable choice for standard overcurrent protection needs.
