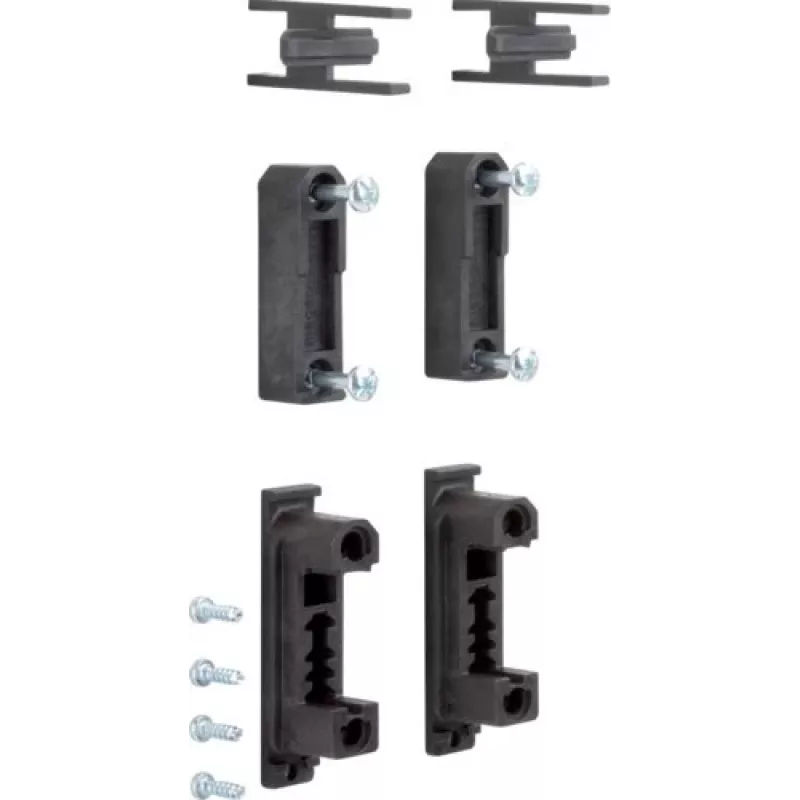

HAGER UZ61S3 Soporte de barras colectoras 60mm universN unipolar

In distribution boards and control cabinets, busbars must be mounted securely and insulated reliably to prevent short circuits and ensure operational safety. The HAGER UZ61S3 busbar support solves this by providing a robust, halogen-free thermoplastic holder for 60 mm busbar systems.

Who is it for

Electrical panel builders and maintenance technicians working with HAGER universN distribution boards or any 60 mm pitch busbar system. It is suited for new installations and retrofits where a single-pole busbar support is required.

Main features

• 1-pole support for 60 mm busbar systems
• Material: halogen-free thermoplastic, UL94 V2 flammability rating
• Colour: grey (RAL 7035)
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Rated impulse withstand voltage: 8 kV
• Operating temperature: -25 to 70 °C
• Mounting: on busbar
• Degree of protection: IP20

Specifications

• Busbar system pitch: 60 mm
• Number of poles: 1
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Rated impulse withstand voltage (Uimp): 8 kV
• Material: thermoplastic, halogen-free
• Colour: grey (RAL 7035)
• Mounting type: busbar mounting
• Degree of protection: IP20
• Operating temperature: -25 to 70 °C
• Storage temperature: -40 to 80 °C
• Flammability rating: UL94 V2
• Standards: IEC 61439-1, IEC 60947-1
• Compatibility: universal for 60mm busbar systems
• Application: distribution boards, control cabinets

Tips

Ensure the busbar support is snapped firmly onto the busbar and check alignment before energising the panel. Use only with compatible HAGER universN components for optimal fit and safety.
