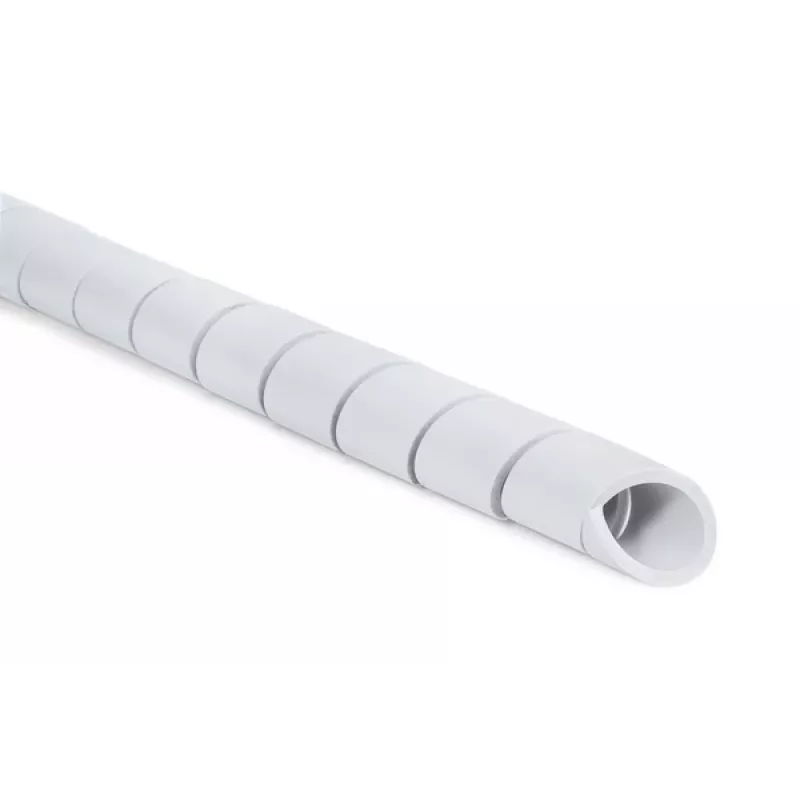

HellermannTyton 161-41102 funda espiral para cables, polipropileno, gris, diámetro nominal 10 mm, longitud 25 m

In control cabinets and machinery, loose cables can become tangled, abraded, or pinched. The HellermannTyton 161-41102 spiral cable wrap keeps wire bundles organized and protected. Made of grey polypropylene, it wraps around cables from 8 mm to 65 mm in diameter, providing a reusable sleeve that resists most acids, alkalis, and solvents. With a 25-meter length, it covers long runs in industrial panels, automotive harnesses, or office cable management.

Key specifications

• Product type: Spiral Cable Wrap
• Material: Polypropylene (PP)
• Colour: Grey
• Nominal diameter: 10 mm
• Bundle diameter range: 8 mm – 65 mm
• Length: 25 m
• Wall thickness: 0.8 mm
• Pitch: 10 mm
• Operating temperature: -60 °C to +80 °C
• Flammability rating: UL94 HB
• Halogen-free: Yes
• UV resistance: Limited
• Chemical resistance: Good (most acids, alkalis, solvents)
• RoHS compliant: Yes

Why choose it

The spiral design allows easy installation by hand without disconnecting cables. It can be removed and reused, making it ideal for maintenance or reconfiguration. The polypropylene material offers good chemical resistance and a wide temperature range, suitable for demanding environments.

Ideal use cases

• Bundling and protecting cables in industrial control panels
• Organizing wiring in automotive and marine applications
• Managing cables in office or home entertainment setups
• Insulating and shielding wire harnesses from abrasion

Good to know

The wrap is halogen-free and meets UL94 HB flammability rating. UV resistance is limited, so it is best used indoors or in protected outdoor areas.
