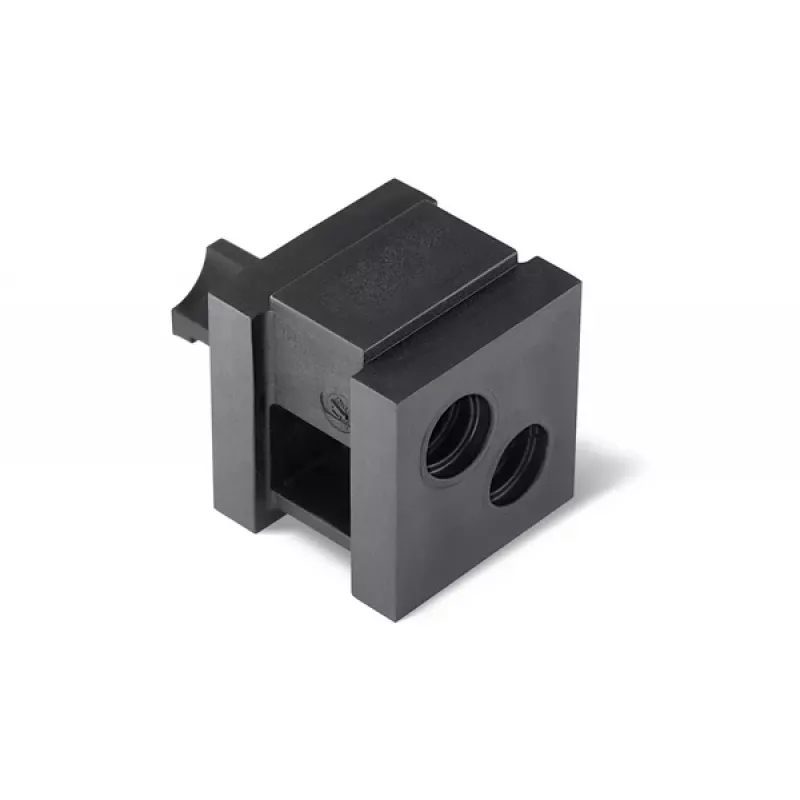

HellermannTyton VP-S 2/7-8 pasacables doble aislante, libre de halógenos, negro, 20 unidades 440-00021

Insulating double grommet for protecting and strain-relieving two cables through panel cut-outs. The VP-S 2/7-8 snaps securely into mounting holes of 7.0–8.0 mm, providing halogen-free insulation and mechanical support in tight spaces.

Advantages

Halogen-free polyamide 6.6 construction reduces toxic smoke in case of fire. Dual cable entry allows two separate cables to pass through one grommet, saving space and simplifying assembly. Snap-in mounting requires no tools and holds firmly in panels up to 2 mm thick.

Suitable for

• Routing two cables through sheet metal or plastic panels
• Protecting cable insulation from sharp edges
• Providing strain relief in control cabinets and enclosures
• Applications requiring halogen-free materials

Key specifications

• Material: Polyamide 6.6 (PA66), black
• Mounting hole diameter: 7.0–8.0 mm
• Cable entry diameter per cable: 2.0–3.0 mm
• Panel thickness: 2 mm
• Operating temperature: -30 °C to +105 °C
• Flammability rating: UL94 V2
• Pack size: 20 pieces

Recommendations

For clean cable management in industrial electronics, pair with HellermannTyton cable ties and edge protection profiles. Verify panel thickness and hole diameter before installation to ensure a secure snap fit.
