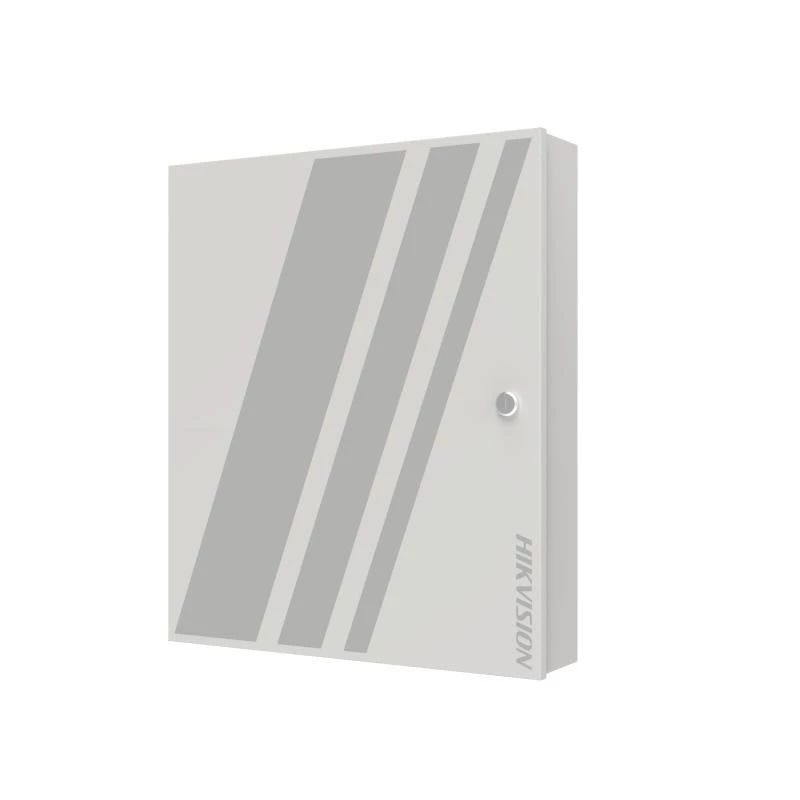

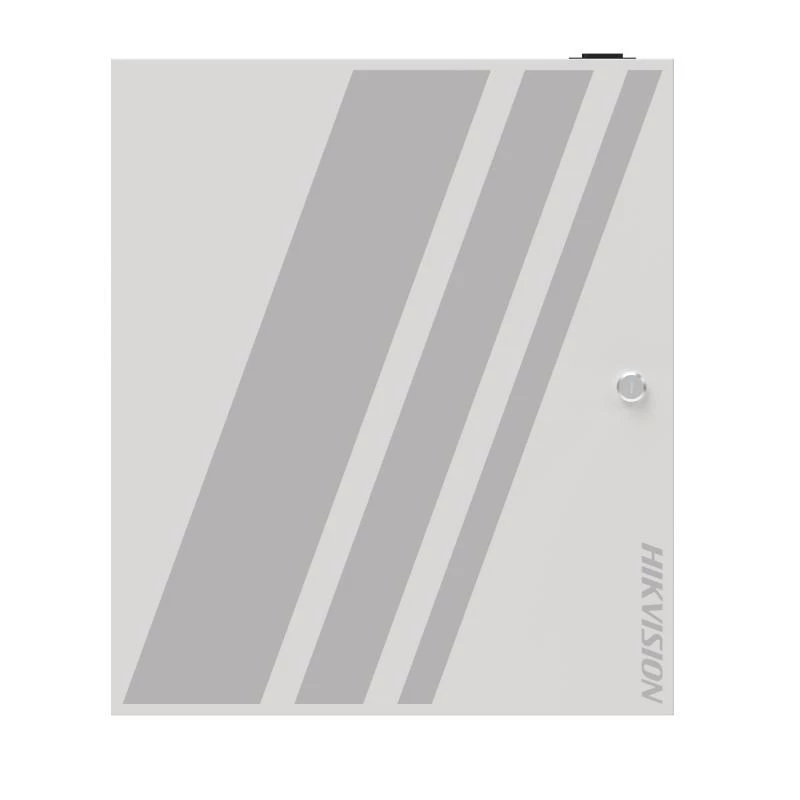

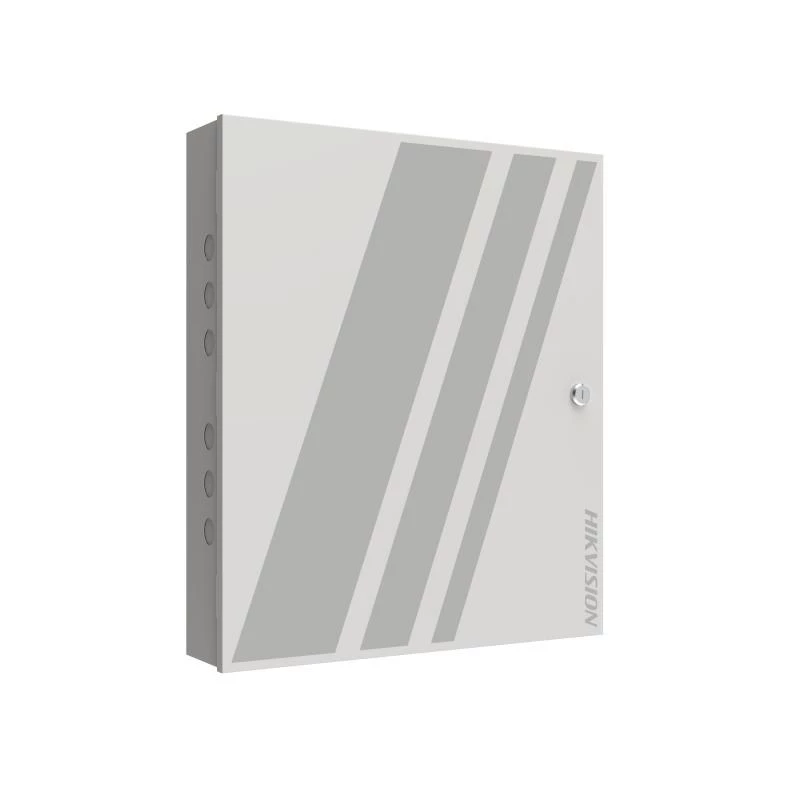

Hikvision DS-K2708X panel de control de accesos de 8 puertas

The Hikvision DS-K2708X is a high-performance 8-door access control panel designed for medium to large-scale security systems. It supports up to 8 doors with Wiegand or RS-485 readers, offering robust authentication modes including card, card+password, and password. With a large card capacity of 100,000 and event capacity of 300,000, it ensures reliable operation for demanding environments.

Advantages

This panel features advanced functions such as anti-passback, multi-door interlock, multi-card authentication, and first card opening. It integrates seamlessly with HikCentral Professional and iVMS-4200 software for centralized management. The 32-bit processor and 16M flash memory provide fast processing and stable performance.

Suitable for

• Commercial buildings and office complexes
• Industrial facilities and warehouses
• Educational institutions and campuses
• Government and public sector installations

Key specifications

• Doors Controlled: 8
• Readers Supported: 8 (Wiegand or RS-485)
• Card Capacity: 100,000
• Event Capacity: 300,000
• Communication: TCP/IP, RS-485
• Inputs: 8x Door Sensor, 8x Exit Button, 8x Alarm Input, 1x Case Tamper
• Outputs: 8x Lock Relay, 8x Alarm Output
• Power Supply: 12V DC, <4W
• Operating Temperature: -20°C to +65°C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, pair with Hikvision readers and HikCentral Professional software. Ensure proper power supply and network connectivity.
