Hikvision DS-PDPC12PF-EG2-WE Black Detector PIR con cámara AX PRO con luz blanca

The Hikvision DS-PDPC12PF-EG2-WE Black is a professional-grade AX PRO PIR camera detector with integrated white light illumination, designed for reliable intrusion detection and visual verification in residential and commercial security systems. This wireless detector combines passive infrared (PIR) technology with a built-in CMOS camera to capture alarm images, providing enhanced situational awareness.

Advantages

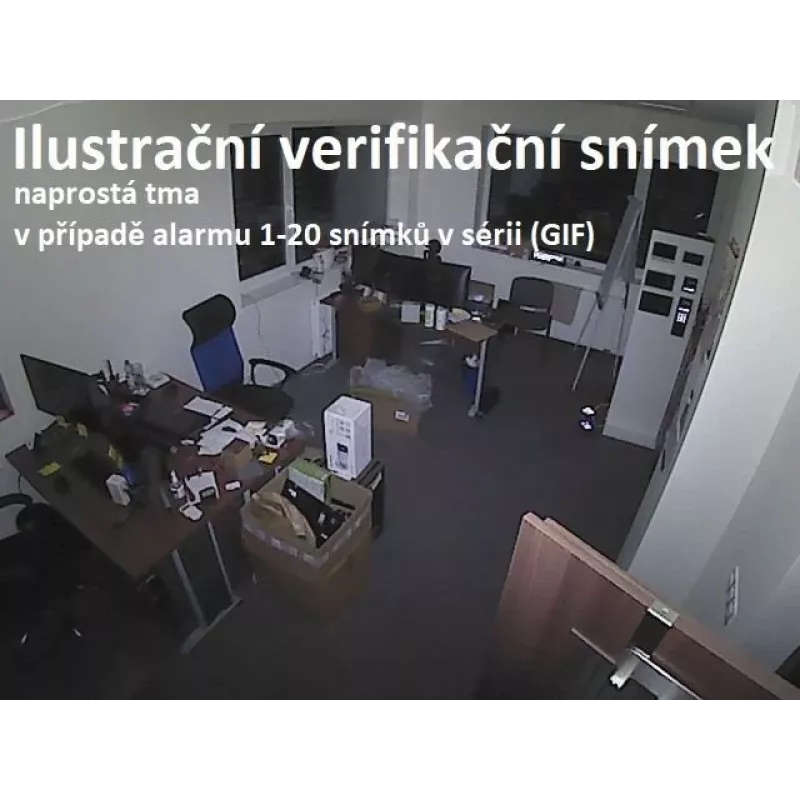

Integrated white light LED illuminates up to 12 meters for clear night vision images. Pet immunity up to 30 kg reduces false alarms from small animals. Tri-X wireless technology ensures stable communication up to 800 meters in open areas. Long battery life of up to 6 years minimizes maintenance. Tamper protection on front and rear prevents unauthorized access.

Suitable for

• Home security systems requiring visual alarm verification
• Small to medium-sized businesses needing reliable intrusion detection
• Integration with Hikvision AX PRO alarm systems
• Indoor installations with mounting height 1.8–2.4 meters

Key specifications

• Detection technology: Passive Infrared (PIR)
• Camera: Integrated CMOS, QVGA/VGA resolution

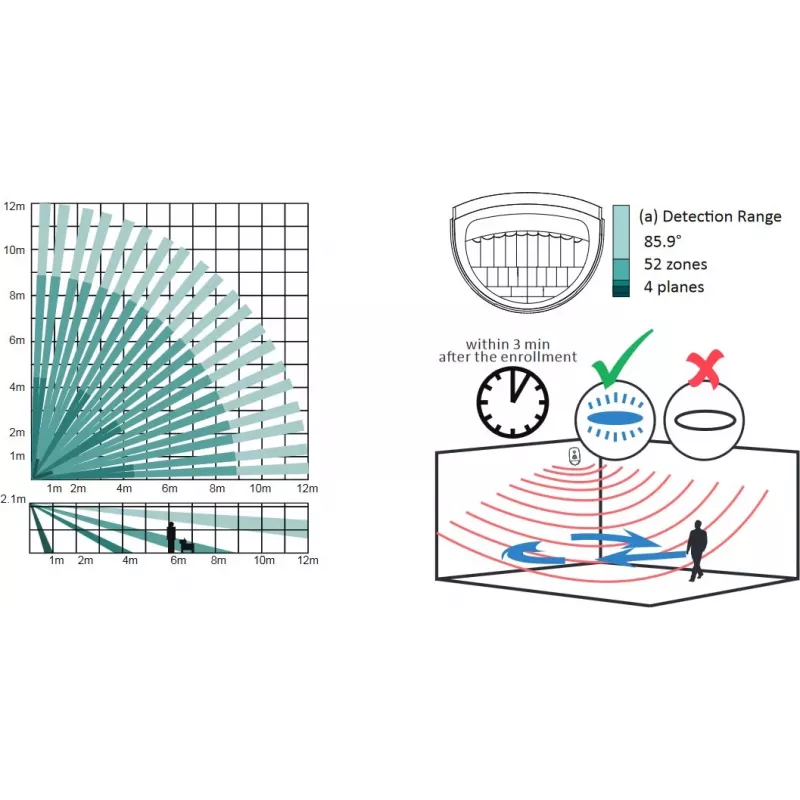

• PIR range: 12 meters, angle 85.9°
• White light range: 12 meters
• Wireless: Tri-X, 868 MHz, range up to 800 m
• Battery: 3 x CR123A (included), life up to 6 years
• Operating temperature: -10°C to 55°C
• Colour: Black

Recommendations

For optimal performance, install at the recommended height of 1.8–2.4 meters and ensure clear line of sight to the control panel. Test wireless signal strength before final mounting. Replace batteries as indicated by low battery alerts.
