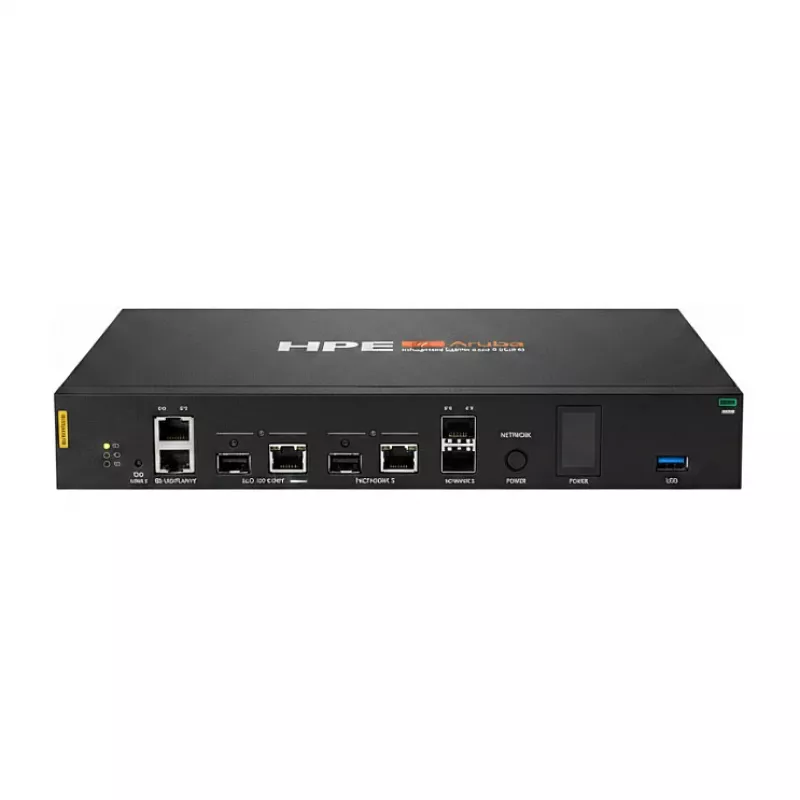

HPE Aruba Networking 9106 RW 2x SFP+ 2x Combo 2x PoE Hybrid Gateway EU

The Aruba Networking 9106 RW Hybrid Gateway is a powerful, versatile networking solution designed for small to medium businesses and branch offices. Combining advanced routing, security, and PoE capabilities, this gateway delivers high-performance connectivity and centralized management through Aruba Central. With 2x 1/10GbE SFP+ ports, 2x 1GbE Combo ports, and 2x 1GbE PoE+ ports, it offers flexible deployment options for modern networks.

Advantages

This hybrid gateway integrates SD-WAN, stateful firewall, and IPsec VPN into a single device, simplifying network architecture and reducing costs. Its cloud-managed platform via Aruba Central enables easy configuration, monitoring, and troubleshooting. The PoE+ support (up to 30W total budget) powers devices like IP cameras and access points directly, eliminating extra cabling. With support for up to 2048 concurrent devices and advanced routing protocols (OSPF, BGP, VRRP), it scales with your business needs.

Suitable for

• Branch offices requiring secure, high-speed WAN connectivity
• Small to medium businesses needing integrated routing, switching, and security
• Deployments requiring PoE for edge devices like APs and cameras
• Organizations adopting SD-WAN for optimized cloud and SaaS access

Key specifications

• Product Type: Hybrid Gateway
• Ethernet Ports: 2x 1/10GbE SFP+, 2x 1GbE Combo (RJ-45/SFP), 2x 1GbE RJ-45 PoE/PoE+
• PoE Standard: IEEE 802.3af/at, PoE Budget: 30 W
• Firewall Throughput: Up to 2 Gbps
• VPN Throughput (IPsec): Up to 1 Gbps
• Concurrent Devices: Up to 2048
• Management: Aruba Central (Cloud-managed), Local Web UI
• SD-WAN Support: Yes
• Security Features: Stateful Firewall, IPsec VPN, IDS/IPS (with subscription)
• Routing Protocols: Static, OSPF, BGP, PIM, VRRP
• Form Factor: Desktop, Wall-mountable, Rack-mountable (optional kit)
• Operating System: ArubaOS
• Processor: Multi-core CPU, Memory: 4 GB RAM, Storage: 32 GB eMMC Flash
• Power Supply: Internal AC, Input: 100-240 VAC, 50/60 Hz, Max Power Consumption: 60 W (with PoE)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)

Recommendations

For optimal performance, pair this gateway with Aruba Central subscription for full SD-WAN and security features. Use optional rack-mount kit for data center deployment. Ensure adequate ventilation for PoE operation.
