Hub DisplayPort MST ATEN VS92DP-AT

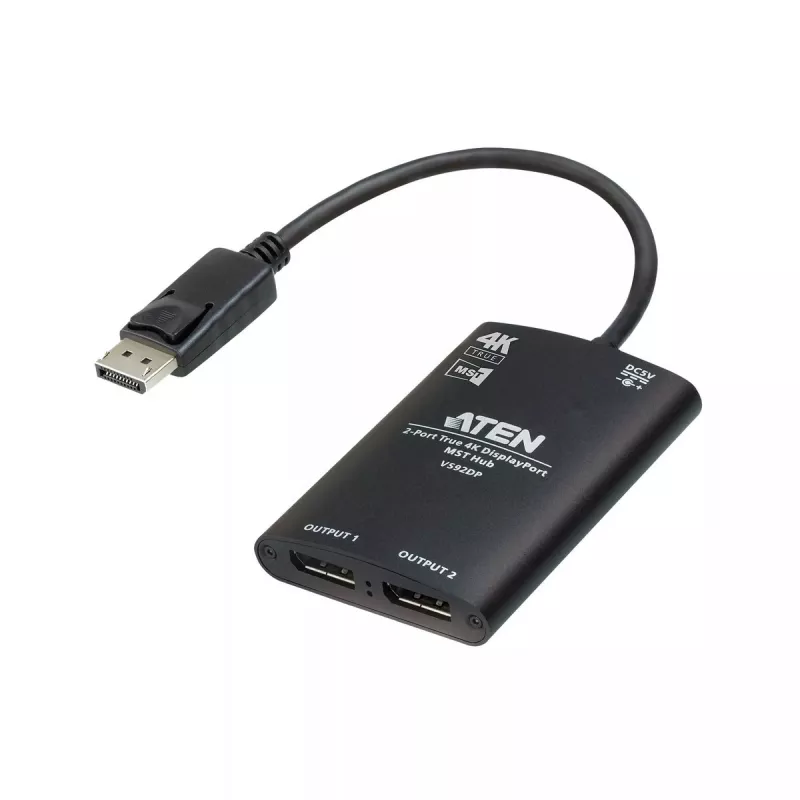

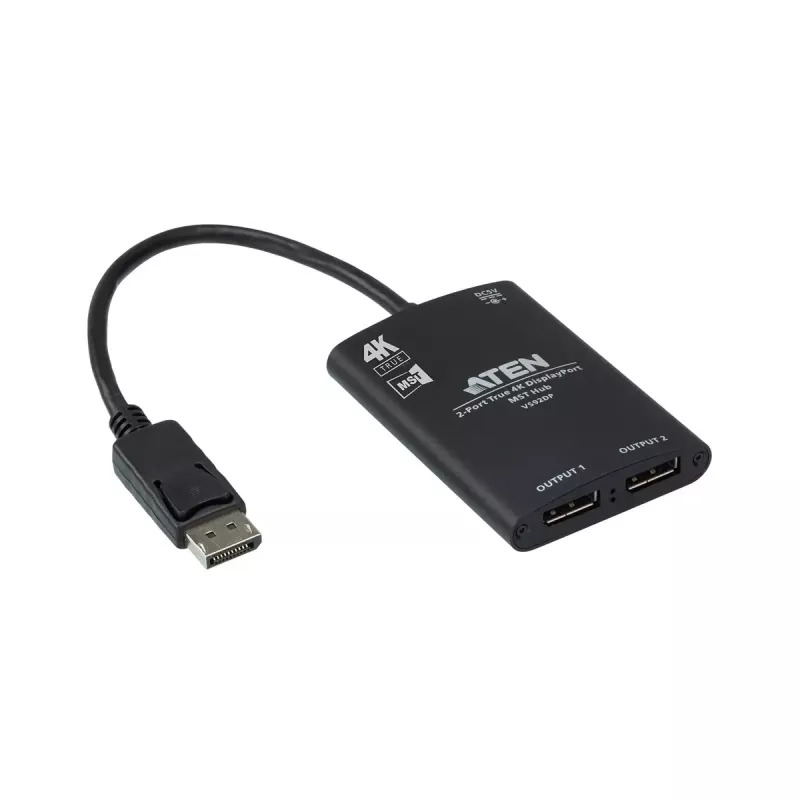

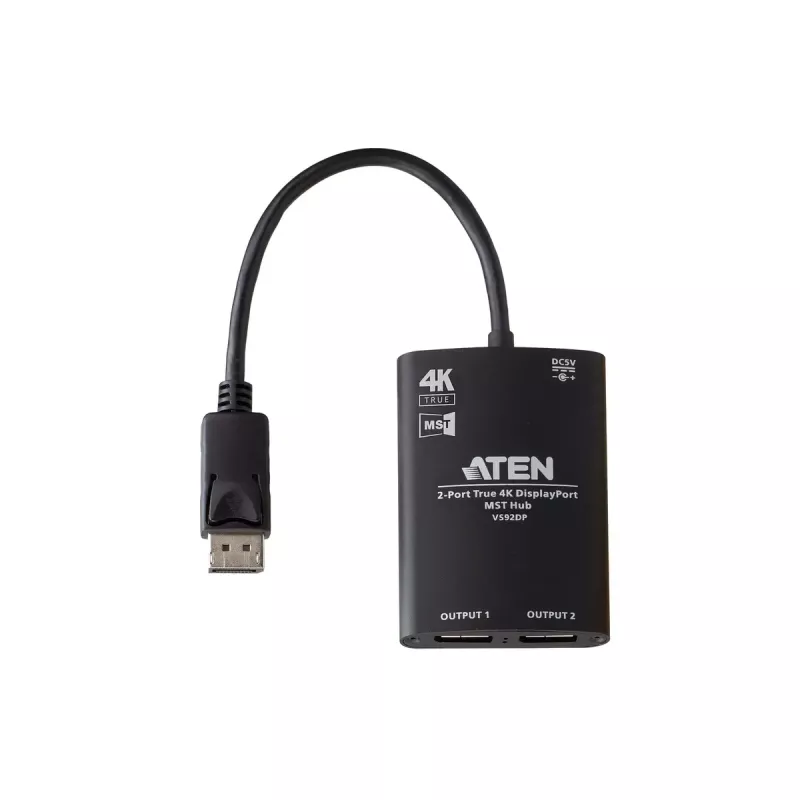

The ATEN VS92DP 2-Port True 4K DisplayPort MST Hub enables a Windows-based laptop or PC to drive two DisplayPort monitors with up to 3840 x 2160 resolution. Housed in a compact black aluminum case, the hub supports mirroring the same image to both displays or extending the desktop to show independent content on each screen. The unit consumes approximately 2 W and connects via DisplayPort, offering a cost-effective DisplayPort MST solution for multi-monitor setups.

Advantages

The hub provides two DisplayPort outputs without degrading high-definition video quality and supports true 4K output. Its compact aluminum housing and low power consumption (around 2 W) make it suitable for space-constrained workstations. It is plug-and-play with Windows-based systems and allows both mirror and extend display modes for flexible multitasking.

Suitable for

• Office productivity with dual-monitor setups
• Home workstations and remote work environments
• Multitasking on a Windows laptop or PC
• Presentations where the same image must be shown on two displays

Key specifications

• Model: VS92DP-AT (ATEN)
• Video port type: DisplayPort
• Number of video outputs: 2
• Maximum resolution: 3840 x 2160 (True 4K)
• Power consumption: ~2 W
• Colour: Black; housing: aluminium
• Dimensions: 60 mm x 88 mm x 150 mm
• Weight: 0.12 kg
• Includes: VS92DP hub, USB Type-A to USB Micro-B cable, user instructions

How to use

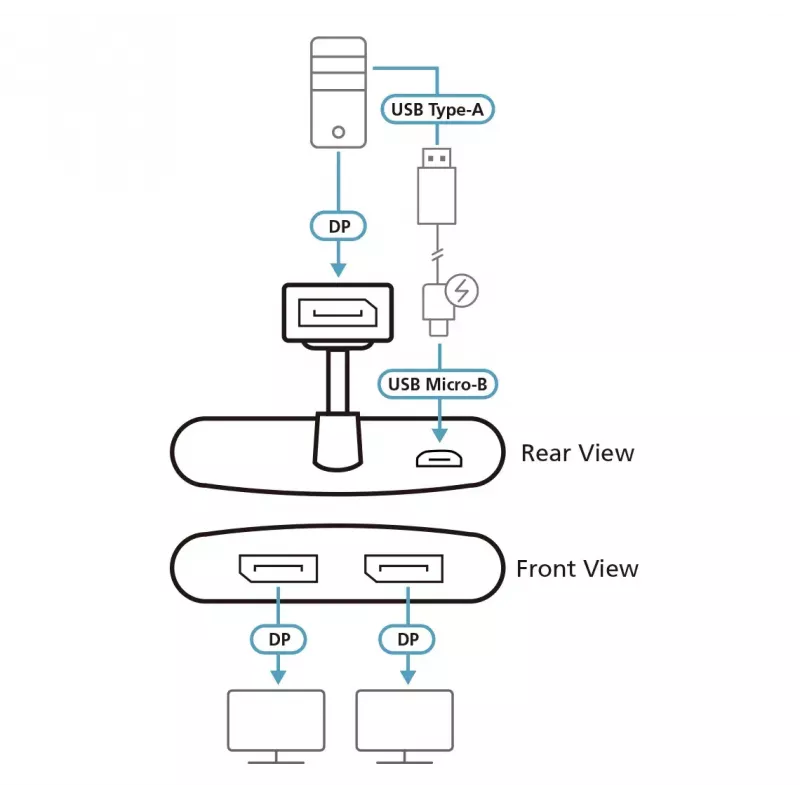

Connect the hub to a Windows-based laptop or PC using the DisplayPort source connection. Attach up to two DisplayPort monitors to the hub outputs. Use the operating system display settings to select mirror (duplicated) or extended desktop mode and arrange the monitor positions as required. If needed, connect the included USB Type-A to USB Micro-B cable for power or firmware updates as specified in the user instructions.

Recommendations

For optimal performance at 3840 x 2160 resolution, use certified DisplayPort cables and ensure the host GPU and drivers support DisplayPort MST. Place the hub in a ventilated area and follow the supplied instructions for setup and any firmware updates.
