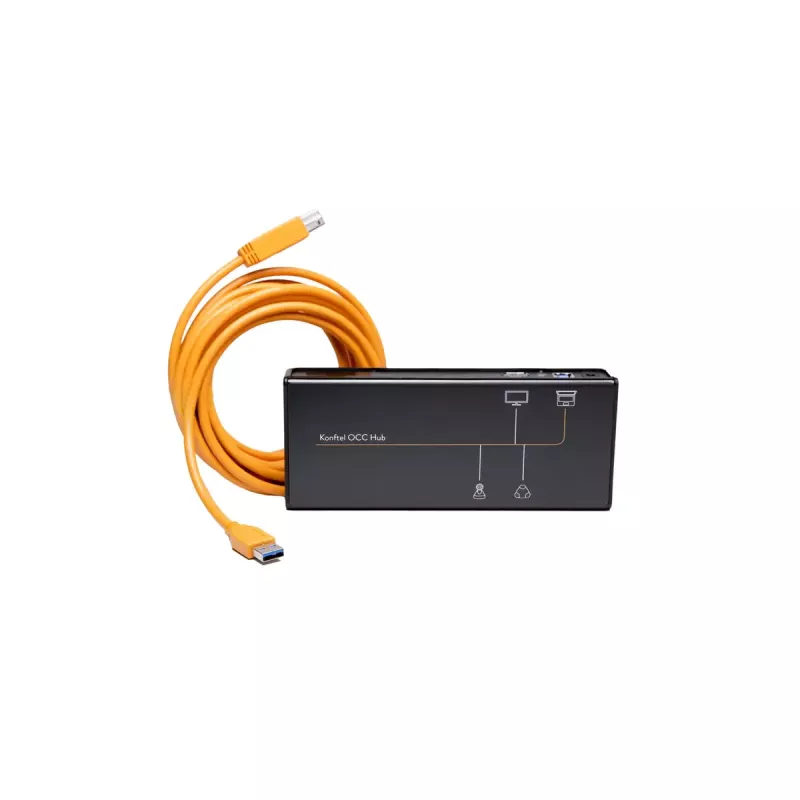

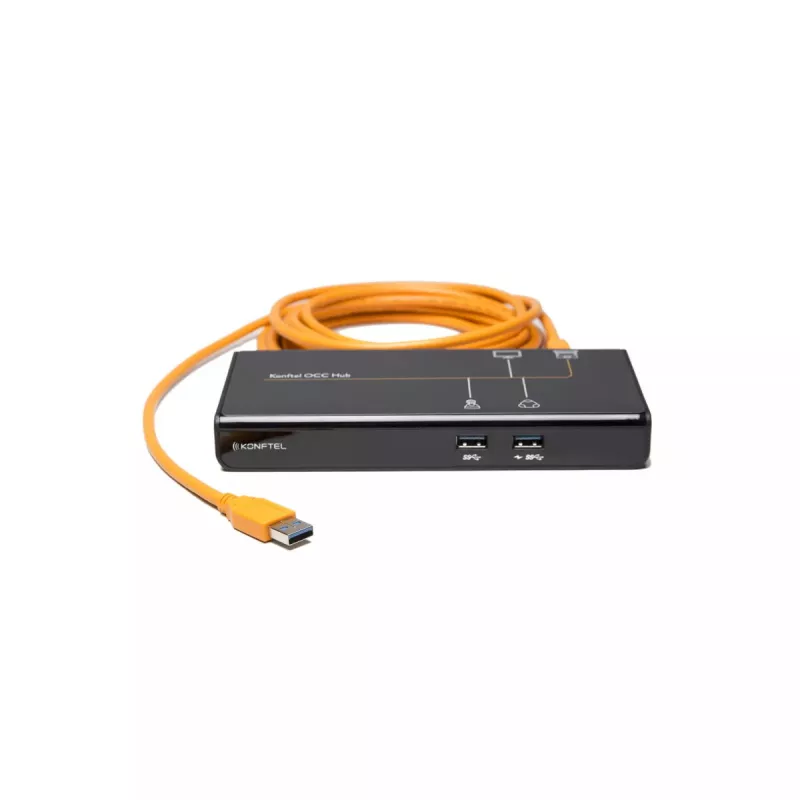

Hub Konftel OCC Hub

The Konftel OCC Hub is the central connection unit for Konftel’s video conferencing solutions, enabling a simple single-cable workflow for meeting rooms. It supports Konftel One Cable Connection so that a single USB cable links the camera, speakerphone and room display to the collaboration app on a laptop. The compact black hub includes HDMI and USB interfaces and is designed for flexible placement with a 5 m cable and compact dimensions.

Advantages

The Konftel OCC Hub consolidates camera, audio and display connections into one device, reducing cable clutter and simplifying setup. It offers a USB 3.2 Gen 1 Type-A host interface for reliable data transfer, an HDMI output for connecting the room screen and additional USB ports for peripherals. The hub supports resolutions up to 2048 x 1152 pixels and runs from a DC power supply compatible with 100–240 V input, providing broad compatibility across installations.

Suitable for

• Small and medium meeting rooms
• Huddle spaces and collaboration areas
• Workplaces requiring a single-cable USB connection to a laptop

Key specifications

• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• Hub interfaces: USB 3.2 Gen 1 Type-A, USB 2.0, HDMI
• Maximum resolution: 2048 x 1152 pixels
• Cable length: 5 m
• Power supply: DC input 100–240 V, output 5 V
• Dimensions: 182 x 78 x 32 mm
• Weight: 0.365 kg
• Colour: Black

How to use

Connect the Konftel OCC Hub to the laptop using the USB 3.2 Gen 1 Type-A host cable. Attach the camera to the hub’s USB port, connect the speakerphone, and connect the room display to the HDMI output. Plug the hub into the DC power supply if required. Open your preferred collaboration app on the laptop; the camera, microphone and screen should be available through the single USB connection.

Recommendations

Place the hub near the room’s AV equipment or under the meeting room table to keep cables tidy. Use the full 5 m cable length to achieve optimal placement of the laptop relative to the camera and screen. Verify that the collaboration app recognises connected devices and that the display resolution is set to a supported maximum of 2048 x 1152 pixels.
