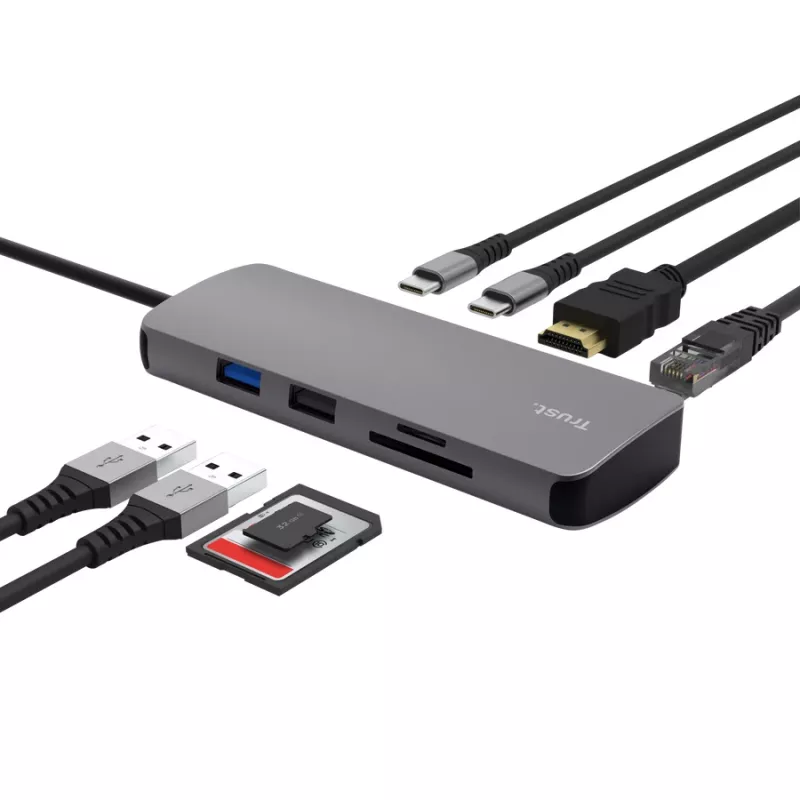

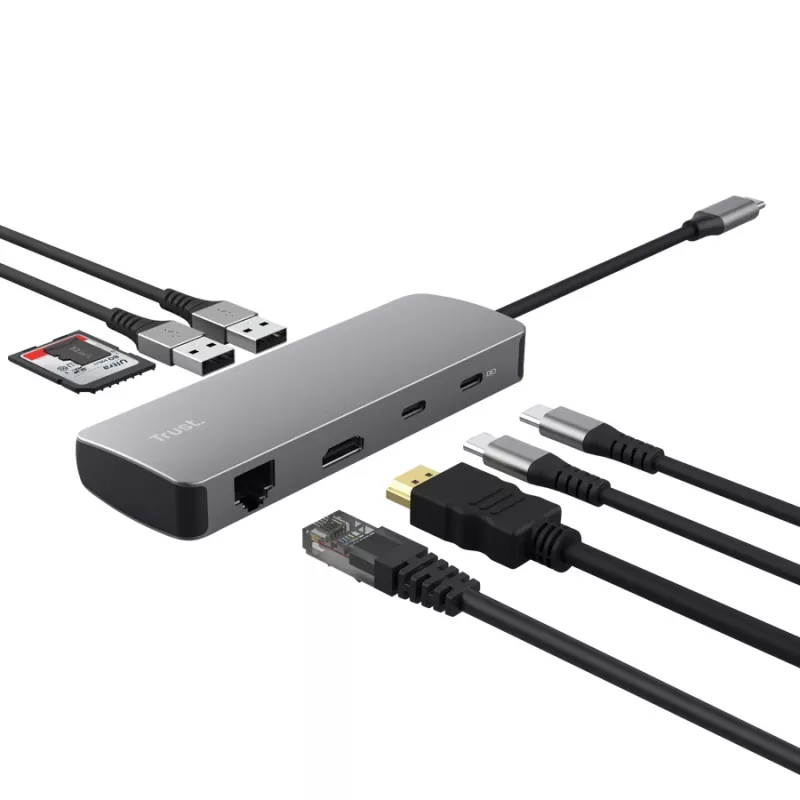

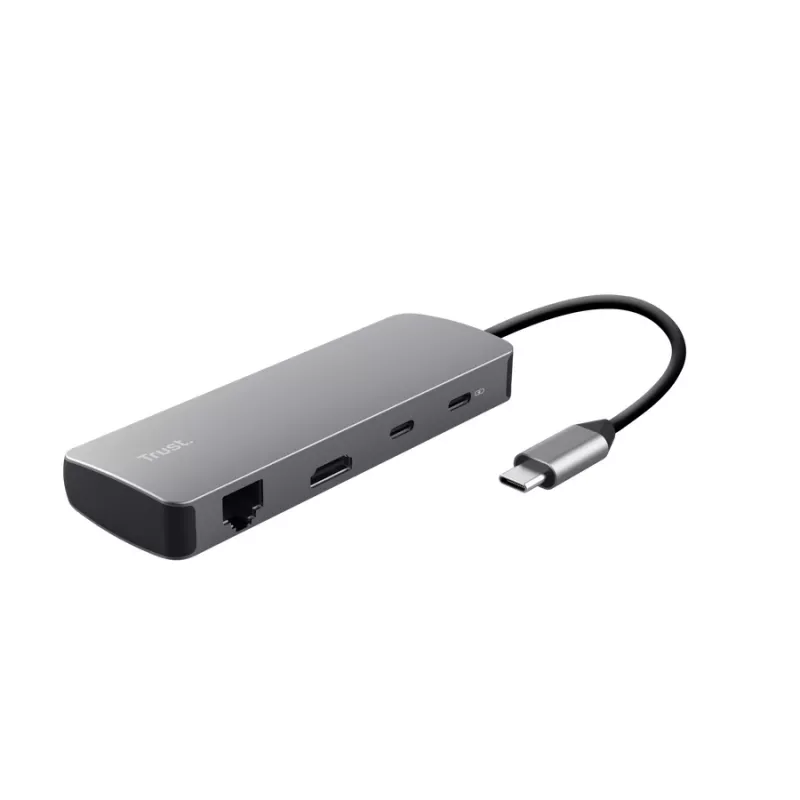

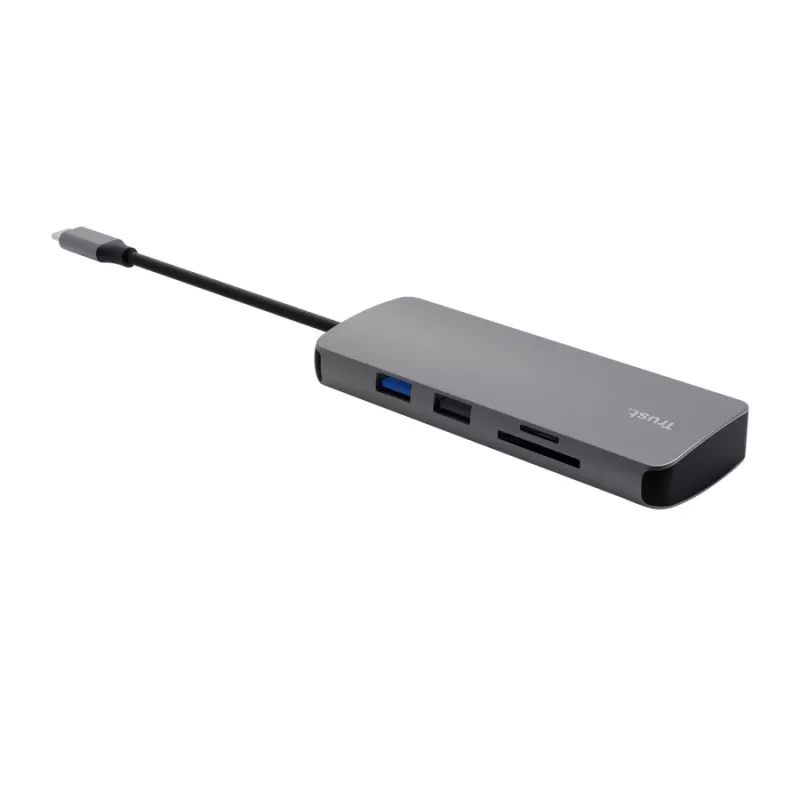

Hub USB Type-C TRUST 25672 — HDMI, RJ-45, USB 3.2 Gen 1 Type-A/Type-C, SD/MicroSD, gris

The TRUST 25672 USB Type-C hub is a compact connectivity solution that expands a laptop or tablet’s ports with HDMI video output, Gigabit RJ-45 Ethernet, high-speed USB 3.2 Gen 1 Type-A and Type-C ports, and an SD/MicroSD card reader. Encased in a grey aluminium housing and connected via a 0.15 m integrated USB-C cable, the hub measures 40 × 120 × 15 mm and weighs 0.068 kg. It is compatible with current desktop and mobile operating systems such as Windows 11, Mac OS X 14/15 and ChromeOS, enabling additional wired networking, external displays and fast data transfer for peripherals and memory cards.

Advantages

The hub provides multiple interfaces in a single, slim aluminium body, reducing the need for separate adapters. HDMI output supports connecting an external monitor or projector while the Gigabit RJ-45 port offers stable wired network performance. USB 3.2 Gen 1 Type-A and Type-C ports deliver up to 5 Gbps transfer rates for compatible devices. The integrated SD/MicroSD card reader allows quick access to camera media and portable storage. Its compact dimensions and lightweight design make it suitable for mobile use and easy storage alongside a laptop.

Suitable for

• Connecting an external monitor or projector via HDMI for presentations and extended displays
• Establishing stable wired network connections using Gigabit Ethernet
• Attaching USB peripherals such as flash drives, external SSDs, keyboards and mice
• Importing photos and videos from SD and MicroSD cards

Key specifications

• Host interface: USB Type-C
• Hub interfaces: HDMI, RJ-45 (Gigabit Ethernet), USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C
• Card reader: SD and MicroSD (TransFlash) support
• Ports quantity: 8
• Supported operating systems: Windows 11, Mac OS X 14/15, ChromeOS
• Housing material and colour: grey aluminium
• Integrated cable length: 0.15 m
• Dimensions (approx.): 40 × 120 × 15 mm
• Weight (approx.): 0.068 kg

How to use

Connect the hub’s integrated USB Type-C cable to a compatible USB-C port on your laptop or tablet. If your device supports video over USB-C (DisplayPort Alt Mode), connect an HDMI cable from the hub to an external monitor or projector. Plug an Ethernet cable into the RJ-45 port for a wired network connection. Insert SD or MicroSD cards into the corresponding slots to access photos and files, and attach USB peripherals to the Type-A or Type-C ports for data transfer or charging as supported by the host device. The hub is plug-and-play on supported operating systems; check system settings for network or display configuration if needed.

Recommendations

Use a high-quality HDMI cable and a Cat5e/Cat6 Ethernet cable to ensure optimal video and network performance. When connecting high-power peripherals, verify the host device’s USB-C port capabilities and consider a powered USB hub or a host with USB Power Delivery if required by connected devices.
