Iluminador IR exterior LIR-IS88 IR LAB

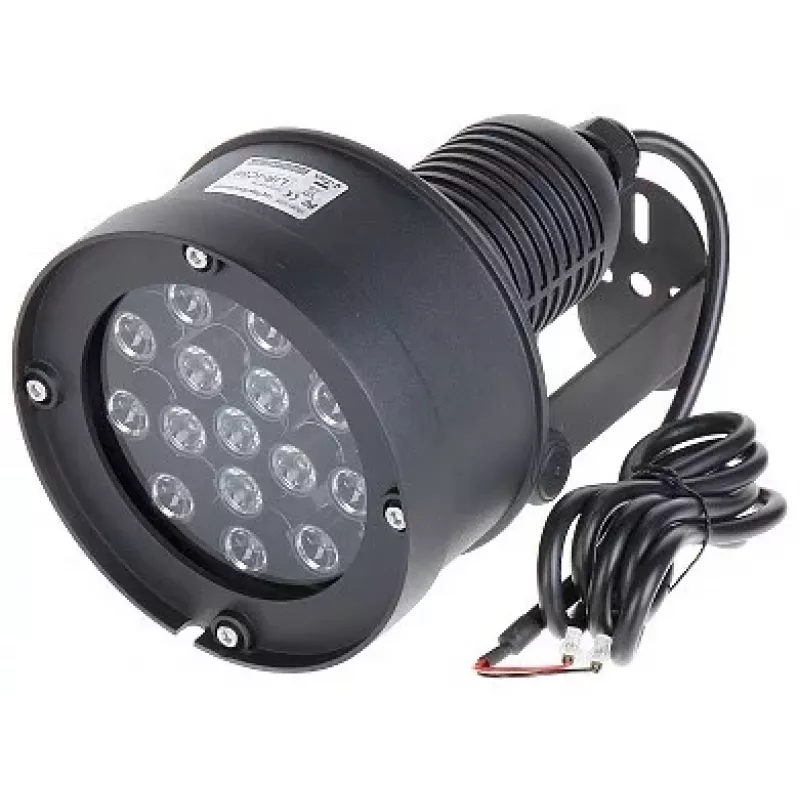

The LIR-IS88 IR LAB is a professional outdoor infrared illuminator designed for CCTV surveillance systems. It provides powerful 850 nm IR illumination with a range of up to 80 meters, ensuring clear night vision for security cameras. Built with a durable aluminum alloy housing and IP66 rating, it withstands harsh weather conditions. The built-in CDS light sensor enables automatic activation in low light, making it an ideal solution for 24/7 monitoring.

Advantages

High-power 8 LED array delivers uniform infrared light with a 60° beam angle. Energy-efficient 18W power consumption reduces operating costs. Rugged construction ensures long-lasting performance in outdoor environments.

Suitable for

• Outdoor CCTV surveillance systems
• Perimeter security and access control
• Parking lots, warehouses, and industrial sites
• Residential and commercial security

Key specifications

• Illumination Wavelength: 850 nm
• Illumination Range: Up to 80 meters
• Beam Angle: 60°
• Number of IR LEDs: 8 (High Power Array LEDs)
• Power Supply: 12V DC
• Power Consumption: 18 W
• Ingress Protection: IP66
• Housing Material: Aluminum Alloy
• Automatic Activation: Built-in CDS Light Sensor
• Operating Temperature: -20°C to +50°C
• Mounting Type: Wall/Ceiling Bracket (Adjustable)
• IR LED Type: Array LED
• Application: Outdoor CCTV Surveillance
• Color: Black/Grey

Recommendations

For optimal performance, pair with a compatible 12V DC power supply and ensure proper mounting for maximum coverage. Suitable for use with most analog and IP cameras.
