Impresora de etiquetas TSC TC300

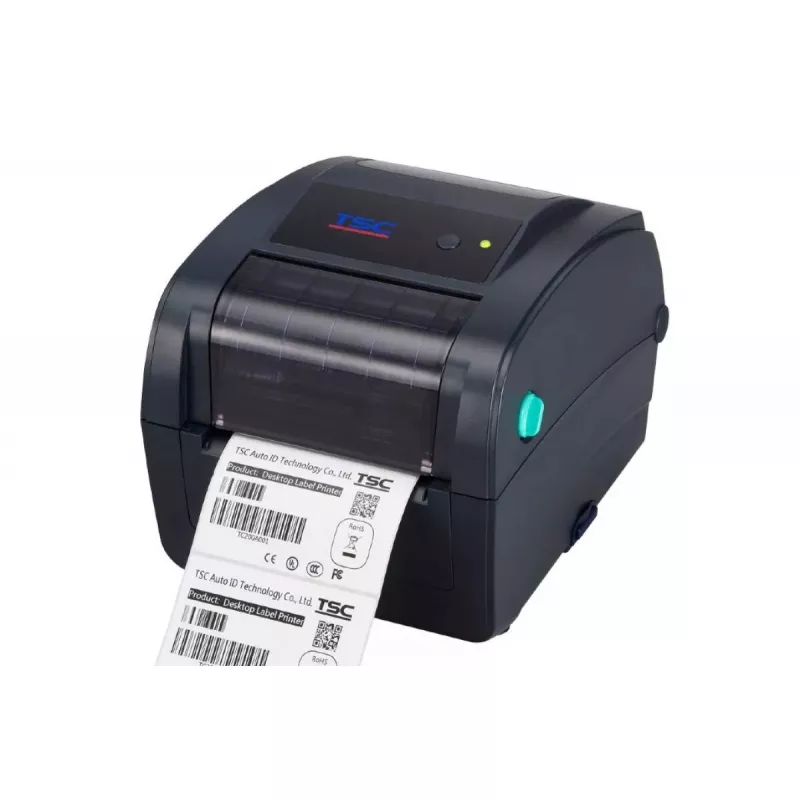

The TSC TC300 is a desktop thermal transfer label printer designed for reliable, compact label production. Based on the proven TSC TC series, the TC300 prints 4-inch-wide labels, tags or receipts at up to 102 mm/sec (approximately 6 ips) with a maximum resolution of 300 x 300 dpi. It accepts thermal transfer ribbons up to 110 m long on 0.5" notched cores and holds label rolls up to 5" diameter on 1" or 1.5" cores. The unit is available in navy and provides wired Ethernet LAN connectivity for integration into POS and label printing environments.

Advantages

Compact footprint and durable construction make the TSC TC300 suitable for environments with limited space. The printer combines a 300 x 300 dpi resolution and a 102 mm/sec print speed to deliver clear, readable labels at a practical throughput. Media and ribbon loading are designed for ease of use: center-biased spring-loaded roll holder and support for 0.5" notched core ribbons reduce downtime. Standard interfaces include Ethernet, USB 2.0, USB host and RS-232 for flexible connectivity.

Suitable for (tasks / use cases)

• Printing product and shipping labels in retail and warehouse settings
• Generating barcode tags for inventory management
• Printing receipts or small-format tags at point of sale
• Applications requiring durable, high-resolution thermal transfer labels

Key specifications

• Print technology: Thermal transfer
• Maximum printing width: 112 mm (4 inches)
• Maximum resolution: 300 x 300 dpi
• Print speed: 102 mm/sec (approx. 6 ips)
• Ribbon length supported: Up to 110 m on 0.5" notched cores
• Media roll capacity: Up to 5" diameter on 1" or 1.5" cores
• Interfaces: Ethernet LAN, USB 2.0, USB host, RS-232 serial
• Display: No
• Product colour: Navy
• Weight: 2.2 kg

How to use

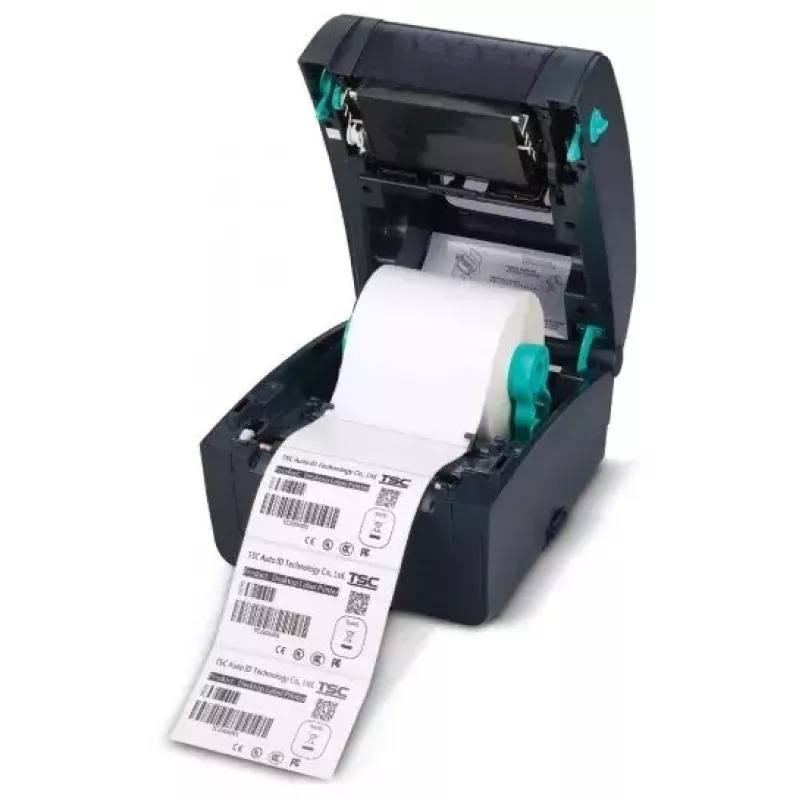

Place the TSC TC300 on a stable surface and connect it to power and your network or host device using the Ethernet or USB interface. Open the media cabinet, load the label roll onto the center-biased spring-loaded holder and thread the media through the print path. Install a thermal transfer ribbon on a 0.5" notched core and align it with the ribbon supply and take-up spindles. Close the cabinet and configure printer settings via the host driver or built-in utility to set media size, print speed and darkness. Send print jobs from your label design software or POS system.

Recommendations

Use ribbons up to 110 m in length on 0.5" notched cores and label rolls no larger than 5" diameter on 1" or 1.5" cores. For consistent print quality, select thermal transfer media and ribbons compatible with 300 x 300 dpi output and perform periodic printhead cleaning as recommended by the manufacturer.
