Intel X710T2LG1P5 Tarjeta de red PCIe 2.0 x8 2 x RJ45 10GbE OEM

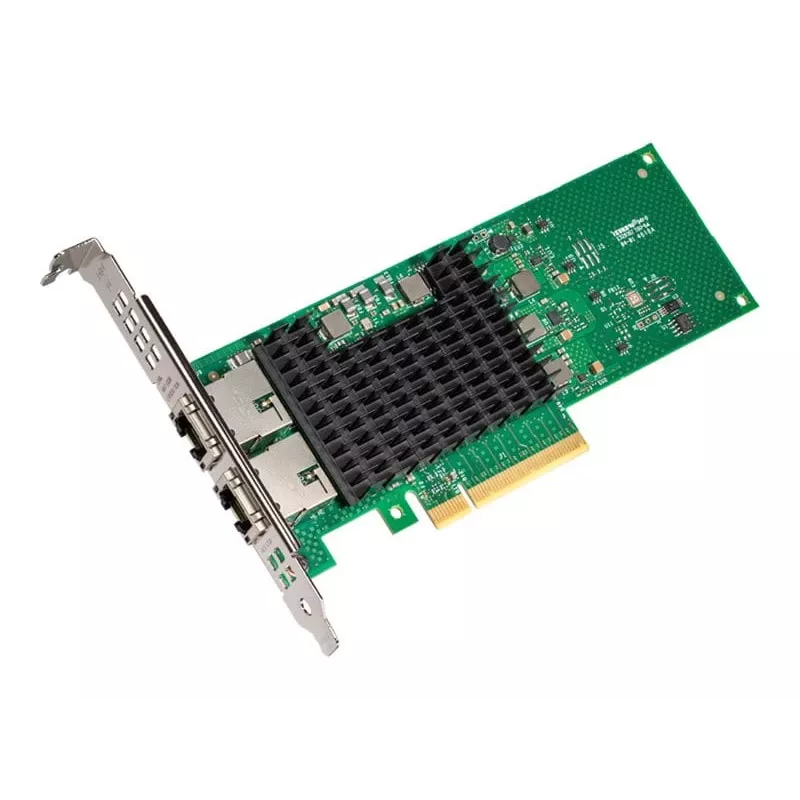

Enhance your server or workstation with the Intel X710T2LG1P5 Network Interface Card, a high-performance PCIe 2.0 x8 adapter designed for demanding data center and enterprise environments. This OEM card delivers reliable 10 Gigabit Ethernet connectivity over standard RJ45 copper cabling, leveraging the advanced Intel X540 chipset for low latency and high throughput.

Advantages

Experience seamless 10GbE performance with backward compatibility to 1GbE and 100MbE networks. The card supports jumbo frames up to 15.5 KB, VLAN tagging, and PXE boot, making it ideal for virtualization, storage, and high-bandwidth applications. Its full-profile bracket with included low-profile bracket ensures flexible installation in various chassis.

Suitable for

• Enterprise servers and data centers requiring high-speed network connectivity
• Virtualized environments (VMware ESXi, Hyper-V) with demanding I/O workloads
• Network-attached storage (NAS) and storage area networks (SAN) for fast data transfers
• High-performance computing (HPC) clusters and cloud infrastructure

Key specifications

• Host Interface: PCI Express 2.0 x8
• Network Ports: 2 x RJ45
• Max Data Transfer Rate: 10 Gbps
• Chipset ID: Intel X540
• Supported Standards: IEEE 802.3ae, 802.3an, 802.3az, 802.3x, 802.1Q, 802.1p
• Jumbo Frame Support: Up to 15.5 KB
• PXE Support: Yes
• VLAN Tagging: Yes
• Full Duplex Support: Yes
• Auto-Negotiation: Yes
• LED Indicators: Link/Activity
• Form Factor: Plug-in Card (PCIe)
• Bracket Type: Full-profile (Low-profile bracket included)
• OS Compatibility: Windows, Linux, VMware ESXi
• Recommended Cable Type: Cat6a (10Gbps up to 100m), Cat6 (10Gbps up to 55m)
• Power Consumption: 10W (typical)
• Controller Type: Ethernet Controller

Recommendations

For optimal 10GbE performance, use Cat6a or higher cabling. Ensure your system has an available PCIe 2.0 x8 or higher slot. This OEM card does not include retail packaging or accessories; only the card and low-profile bracket are provided.
