Intellinet Cable de instalación Cat6a S/FTP 100m rollo LSZH AWG23 gris

The Intellinet Cat6a S/FTP Installation Cable is a high-performance, shielded twisted pair cable designed for structured cabling in demanding network environments. With a length of 100 meters on a convenient roll, this cable supports 10 Gigabit Ethernet (10GBASE-T) and offers a bandwidth of 500 MHz, ensuring reliable, high-speed data transmission for enterprise networks, data centers, and industrial applications.

Advantages

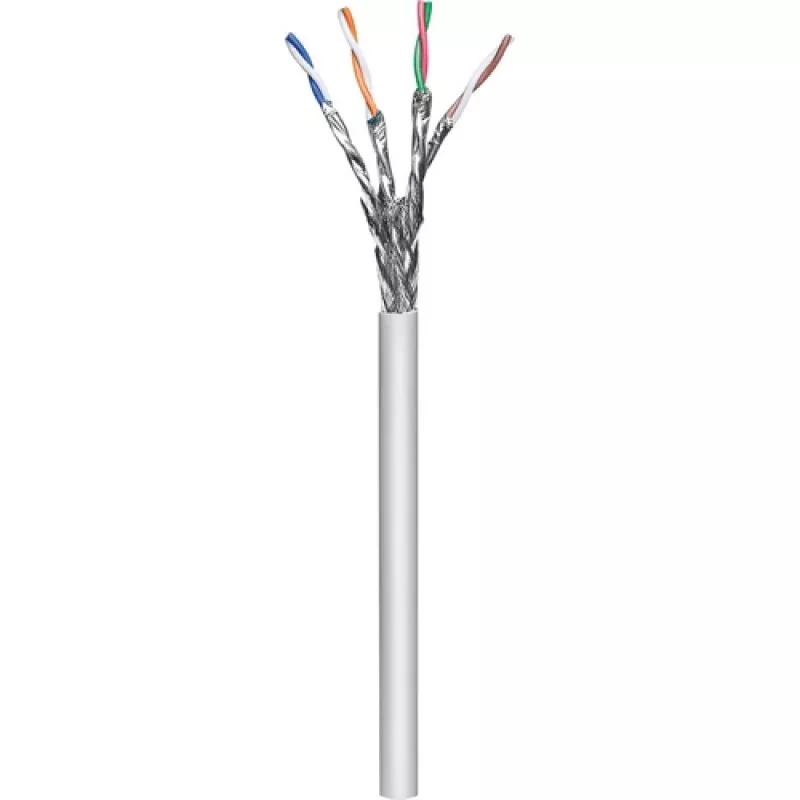

This cable features S/FTP (Screened Foiled Twisted Pair) shielding, which provides excellent protection against electromagnetic interference (EMI) and crosstalk, ensuring signal integrity even in high-interference environments. The solid copper conductors (AWG 23) guarantee superior conductivity and durability. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire, making it ideal for indoor installations where safety is a priority. Additionally, the cable supports Power over Ethernet (PoE, PoE+, PoE++) for powering devices like IP cameras and wireless access points.

Suitable for

• Structured cabling in offices, data centers, and industrial facilities
• 10GBASE-T networks requiring high bandwidth and low latency
• Installations where fire safety and low smoke emission are critical
• Powering PoE devices over long distances

Key specifications

• Cable Type: Installation Cable (S/FTP)
• Category: Cat6a (Category 6a)
• Length: 100 m (on roll)
• Conductor: Solid Copper, AWG 23
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Grey
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: 7.5 mm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Flame Retardancy: IEC 60332-1, IEC 61034-2, IEC 60754-2
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with compatible Cat6a connectors and ensure proper grounding of the shielding. Ideal for new installations or upgrades to 10 Gigabit Ethernet.
