Interruptor regulador Eltako ELT EUD62NPN-IPM 110–240V Wi‑Fi hasta 300W

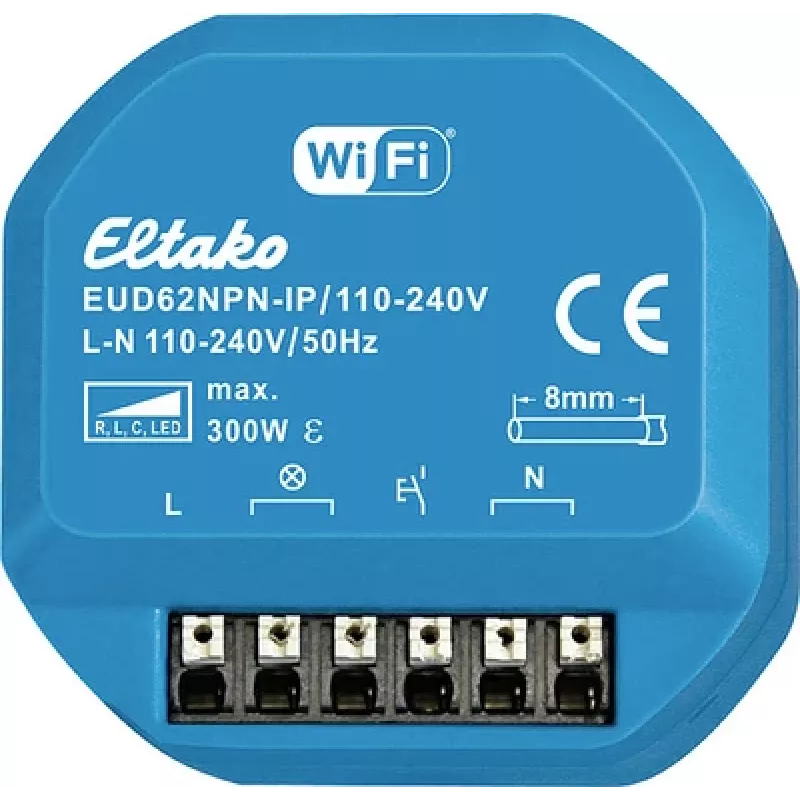

Universal dimmer Eltako ELT EUD62NPN-IPM 110–240V Wi‑Fi up to 300W is a compact, wallbox-compatible dimming module designed to control lighting circuits with supply voltages from 110 to 240 V. The device supports dimming of resistive loads and compatible LED/halogen lamps with a maximum load of 300 W. Integrated Wi‑Fi connectivity allows local and remote control, while the module’s form factor is optimized for installation behind conventional switches or in distribution boxes.

Advantages

The module combines wide voltage compatibility with an output suitable for mixed lamp types, enabling retrofit installation in existing wiring. Wi‑Fi integration permits control via mobile apps and smart home systems without additional gateways. The compact construction facilitates installation in standard wallboxes and reduces the need for visible control equipment. Safety features and load handling are designed for stable dimming performance under typical household conditions.

Suitable for

Key specifications

How to use

Install the dimmer module in a standard wallbox or suitable installation enclosure in accordance with local electrical regulations. Connect the module to the supply voltage and the lighting load following the wiring diagram supplied by the manufacturer. After powering the device, connect it to the local Wi‑Fi network and configure control options using the manufacturer's app or compatible smart home platform. Use the existing wall switch for manual on/off and dimming operations, or operate the module remotely via the app.

Recommendations

Verify lamp compatibility before installation: use dimmable LED lamps specified by the lamp manufacturer for phase-cut dimming when applicable. Do not exceed the 300 W maximum load. Ensure proper ventilation and avoid enclosing the module in spaces with restricted airflow. For safety and compliance, installation and wiring should be performed by a qualified electrician in accordance with local electrical codes.
