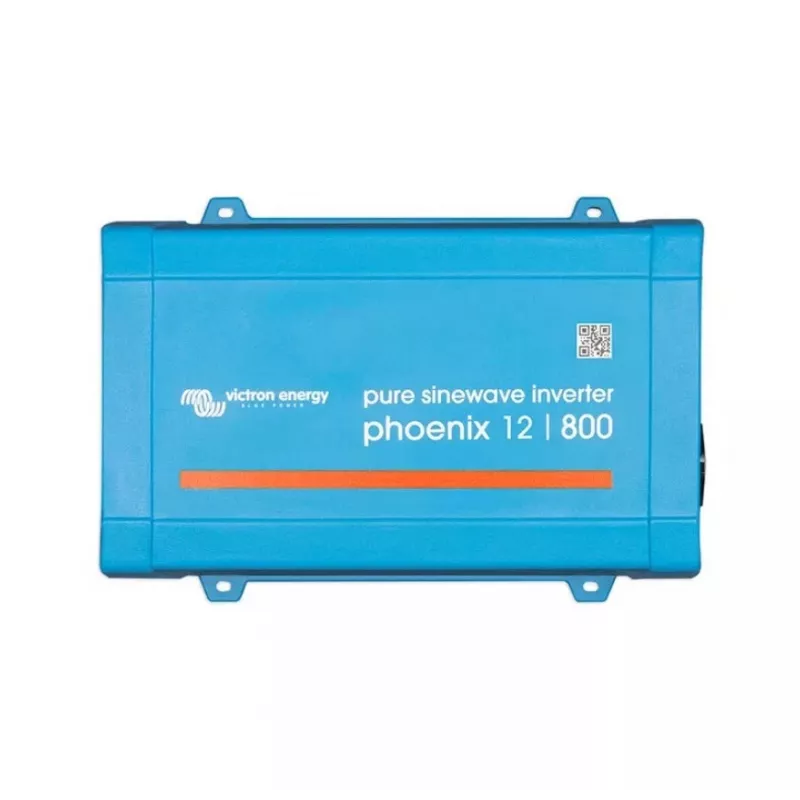

Inversor de corriente Victron Energy Phoenix 12/800 VE.Direct Schuko 12V 800W

The Victron Energy Phoenix 12/800 VE.Direct Schuko is a pure sine-wave power inverter that converts 12V DC to 230V AC with a continuous output of 800W. Designed for reliable AC supply in vehicles, boats and off-grid installations, this inverter provides a stable mains-like output suitable for sensitive electronics, household appliances and power tools. The compact housing includes a Schuko (Type F) AC outlet and VE.Direct communication port for monitoring, configuration and integration with Victron systems.

Advantages

This inverter delivers clean pure sine-wave output, minimising interference and ensuring compatibility with audio‑visual equipment, computers and other sensitive devices. Its 800W continuous rating and robust overload capability support a range of domestic and mobile loads. Built-in VE.Direct connectivity enables straightforward monitoring and firmware updates when connected to a computer or compatible Victron communication device. The Schuko output provides a familiar European socket for direct connection of standard plugs without adapters.

Suitable for

• Powering laptops, TVs and audio equipment in vehicles and boats
• Running small kitchen appliances and power tools off a 12V battery
• Providing AC backup for off-grid cabins and remote work sites
• Integrating with Victron battery systems for monitoring and control

Key specifications

• Nominal DC input voltage: 12V
• Continuous AC output power: 800W
• Output waveform: pure sine wave
• AC output voltage: 230V AC
• Frequency: 50Hz
• Output socket type: Schuko (Type F)
• Communication: VE.Direct port for monitoring and configuration
• Compact rack/bench mounting design for mobile and stationary use

How to use

Install the inverter in a dry, ventilated location close to the 12V battery and connect the DC input using appropriately sized cables and proper fusing according to installation guidelines. Connect the AC load to the Schuko socket and switch the inverter on. Use the VE.Direct connection to configure parameters, view real‑time data or update firmware via a computer or Victron communication accessory. Observe the inverter’s rated limits and allow adequate ventilation during continuous operation.

Recommendations

For reliable performance, use a suitably sized 12V battery or battery bank with correct cable sizing and a DC fuse or circuit breaker. Do not exceed the continuous 800W rating; consider surge currents of appliances when starting motors or compressors. For integrated systems, monitor battery state and inverter status via VE.Direct to optimise runtime and protect both battery and load.
