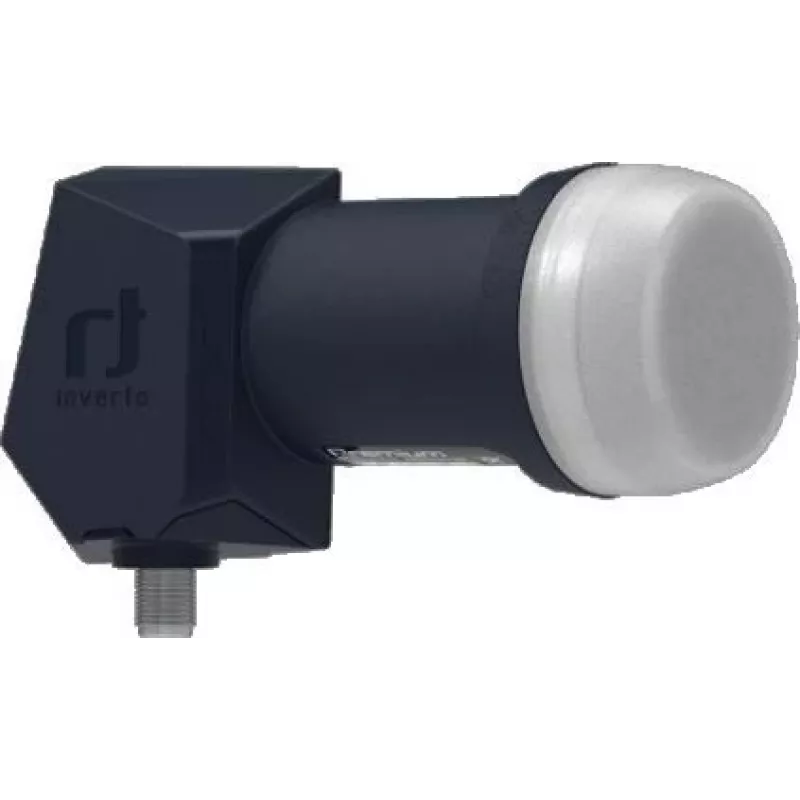

Inverto Premium Single Universal LNB PLL de 40mm

The Inverto Premium Single Universal 40mm PLL LNB is a high-performance satellite low-noise block downconverter designed for single-receiver installations. Featuring advanced PLL (Phase-Locked Loop) technology, it ensures exceptional frequency stability and low phase noise, delivering reliable signal reception for digital satellite TV and data services.

Advantages

This LNB offers a typical noise figure of only 0.2 dB, maximizing signal quality even in challenging conditions. The PLL technology provides superior LO stability (±1 MHz max) and low phase noise, reducing signal degradation. Its universal design supports both low and high band reception with 13V/18V voltage and 0/22 kHz tone switching, making it compatible with most satellite receivers.

Suitable for

• Single satellite dish installations for residential or commercial use
• Digital satellite TV reception (DVB-S/S2)
• Data and VSAT applications requiring stable LNB performance
• Upgrading older LNB models for improved signal quality

Key specifications

• LNB Type: Single Universal
• Feed Diameter: 40 mm
• Noise Figure: 0.2 dB (typical)
• Input Frequency: 10.7 - 12.75 GHz
• Output Frequency: 950 - 2150 MHz
• LO Frequency: 9.75/10.6 GHz
• Conversion Gain: 55 dB (min)
• Output Connector: F-Type
• Operating Temperature: -30 to +60 °C
• Current Consumption: 120 mA max

Recommendations

For optimal performance, pair this LNB with a high-quality satellite dish and RG6 coaxial cable. Ensure proper alignment and weatherproofing of connections. Ideal for single-tuner receivers or as a replacement LNB for existing installations.
