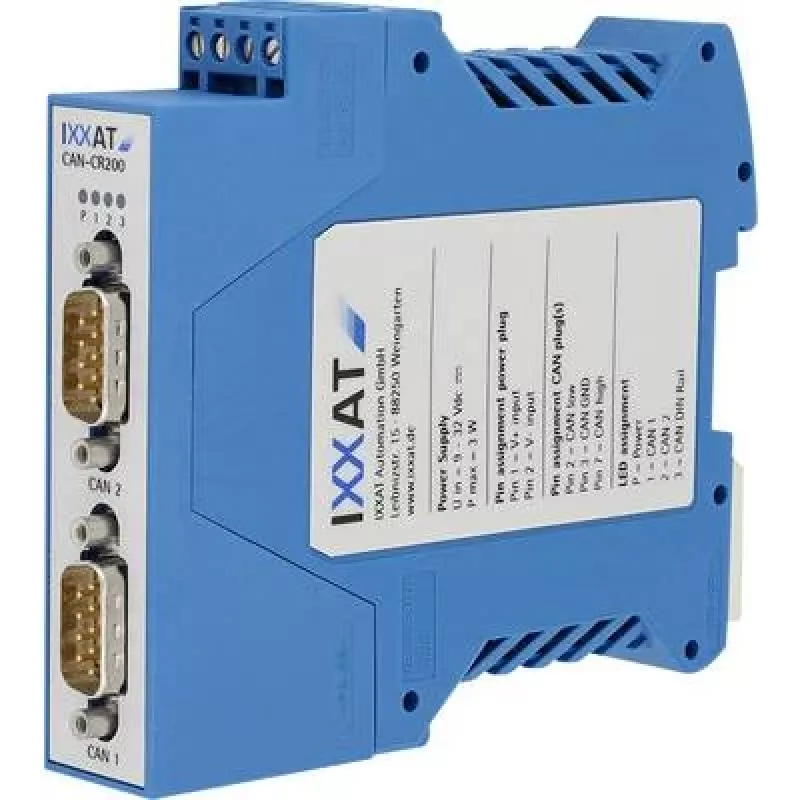

Ixxat CAN-CR200 repetidor de bus CAN, 2 canales, 9-32 V DC, aislamiento galvánico, carril DIN 1.01.0067.44010

The Ixxat CAN-CR200 is a CAN bus repeater that extends network reach and increases node count with galvanic isolation. It connects two CAN segments, providing electrical isolation of 1 kV between channels and power supply, while supporting data rates from 10 kbit/s to 1 Mbit/s.

Advantages

Galvanic isolation protects against ground loops and voltage differences. The repeater operates transparently, requiring no configuration, and enables network expansion beyond standard limits. DIN rail mounting and a wide 9-32 V DC power input simplify installation in industrial environments.

Suitable for

• Extending CAN networks in industrial automation
• Isolating segments to prevent interference
• Increasing node count on existing CAN buses
• Applications requiring high-speed CAN (ISO 11898-2)

Key specifications

• 2 CAN channels, D-Sub 9-pin male connectors
• Galvanic isolation: 1 kV
• Power supply: 9-32 V DC, screw terminal
• Max current consumption: 100 mA at 24 V DC
• Operating temperature: -20 °C to +70 °C
• Housing: plastic, IP20, DIN rail mount

Recommendations

Ensure proper external termination on each CAN segment. For harsh environments, consider additional protection measures.
